73362 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) MANUAL LIFT LINKAGE Parts Diagram

Garden Tractor

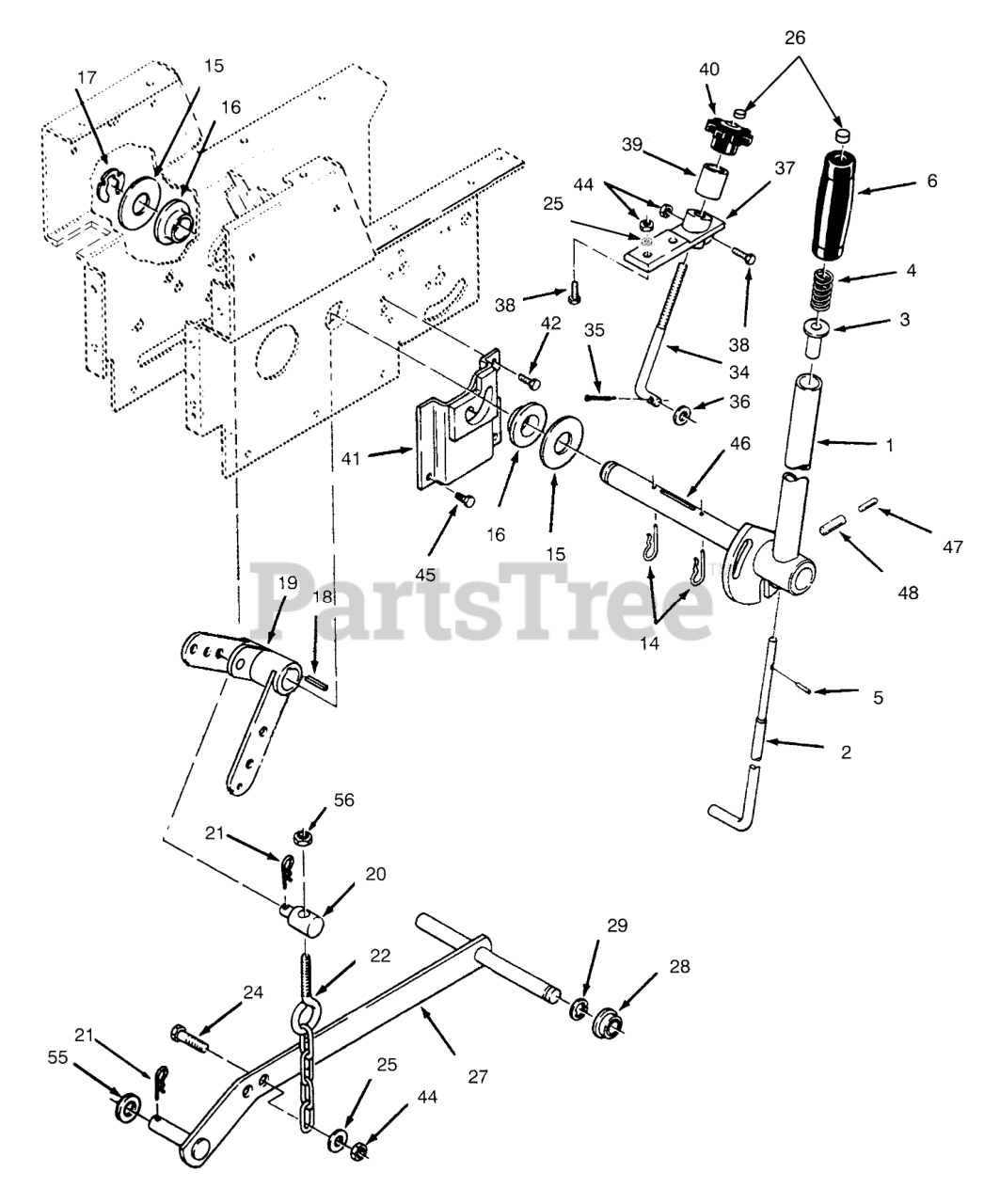

MANUAL LIFT LINKAGE Parts Diagram

  • Title
1

Toro 108563

Lever-Lift (Incl. Ref.# 46,47 & 48)
(Superseded to 108563-03)

$

$

Not available

2

Toro 106257

ROD-LATCH LIFT

$95.99

$

Usually ships in 3-6 days

0

3

Toro 8130

RETAINER-SPRING

$19.99

$

Usually ships in 3-6 days

0

4

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

5

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 3 left!

0

6

Toro 6542

HANDGRIP

$14.99

$

Usually ships in 3-6 days

0

14

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$4.99

$

In Stock, Qty 5

0

15

Toro 3256-62

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

16

Toro 106269

BEARING-FLANGE

$8.99

$

Usually ships in 3-6 days

0

17

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

18

Toro 1121

KEY-SQUARE

$10.99

$

Usually ships in 3-6 days

0

19

Toro 78-1550

LIFT LEVER ASM

$108.99

$

In Stock, only 1 left!

0

20

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 6

0

21

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

22

Toro 106522

CHAIN-LIFT

$31.99

$

In Stock, only 1 left!

0

24

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

27

Toro 113445

Bar-Lift
(Superseded to 113445-03)

$114.99

$

Usually ships in 3-6 days

0

28

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

29

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

34

Toro 110653

ROD-HEIGHT CONTROL

$47.99

$

Usually ships in 3-6 days

0

35

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

36

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

37

Toro 106345

Casting
(Superseded to 106345-03)

$101.99

$

Usually ships in 3-6 days

0

38

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 106258

Sleeve
(Superseded to 106258-03)

$18.99

$

Usually ships in 3-6 days

0

40

Toro 5280

KNOB-LIFT CONTROL

$26.99

$

Usually ships in 3-6 days

0

41

Toro 106411

Latch Bracket
(Superseded to 106411-03)

$

$

Not available

42

Toro 926694

SCREW

$

$

Not available

44

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

45

Toro 926696

Bolt
(Superseded to 9266964)

$7.99

$

Usually ships in 3-6 days

0

46

Toro 108565

SHAFT-LIFT LEVER

$109.99

$

Usually ships in 3-6 days

0

47

Toro 32121-103

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

48

Toro 32121-25

PIN-ROLL

$4.49

$

Usually ships in 3-6 days

0

55

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

56

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
