73362 (312-8) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) FENDER AND SUPPORT Parts Diagram

Garden Tractor

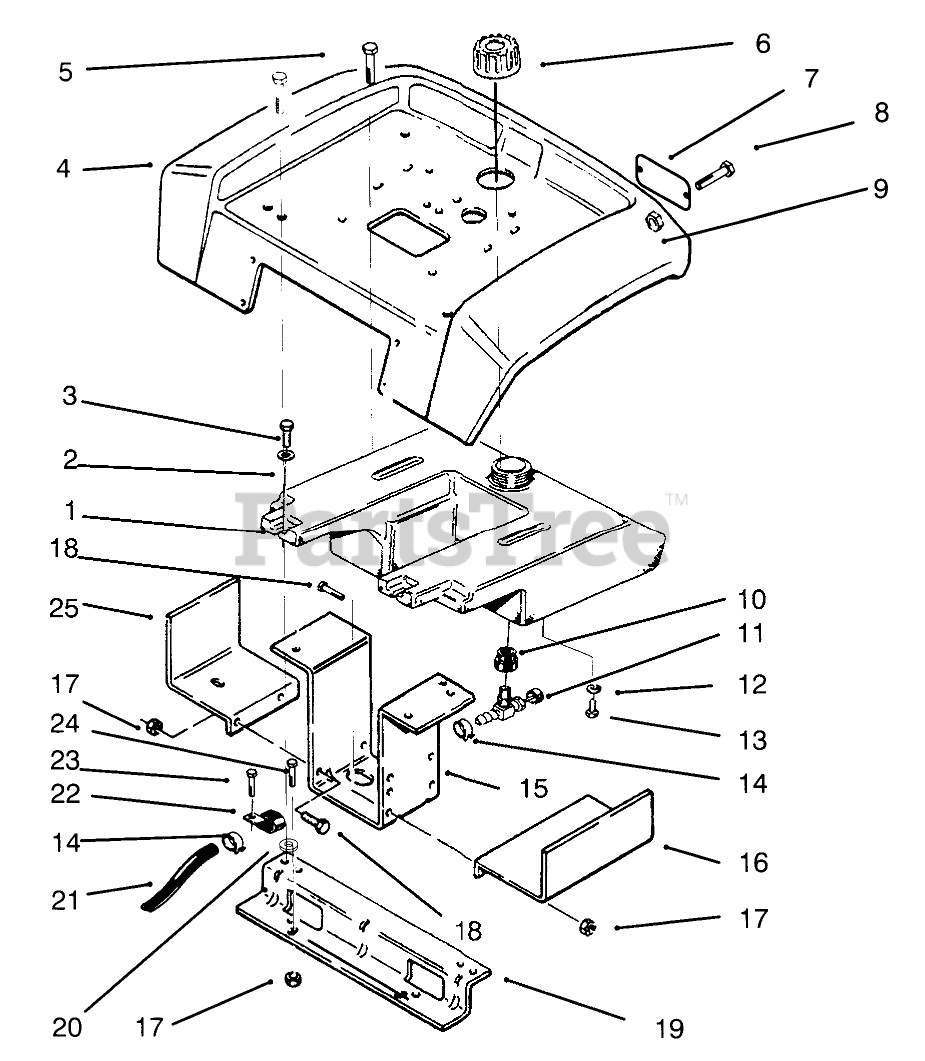

FENDER AND SUPPORT Parts Diagram

  • Title

1

Toro 106234

TANK-FUEL

$456.99

$

Usually ships in 3-6 days

0

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 326697

Bolt

$

$

Currently unavailable

4

Toro 110960

Fender
(Superseded to 94-3722-01)

$

$

Not available

5

Toro 926694

SCREW

$

$

Not available

6

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

7

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

8

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

10

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

11

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

14

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

15

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$38.99

$

Usually ships in 3-6 days

0

16

Toro 79-4990

Bracket-Fender
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

19

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$65.99

$

In Stock, only 1 left!

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 92-9511

Line-Fuel 62"
(Superseded to 92-9512)

$38.99

$

Usually ships in 3-6 days

0

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

23

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$53.99

$

Usually ships in 3-6 days

0
