73320 (310-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) IGNITION SYSTEM Parts Diagram

Garden Tractor

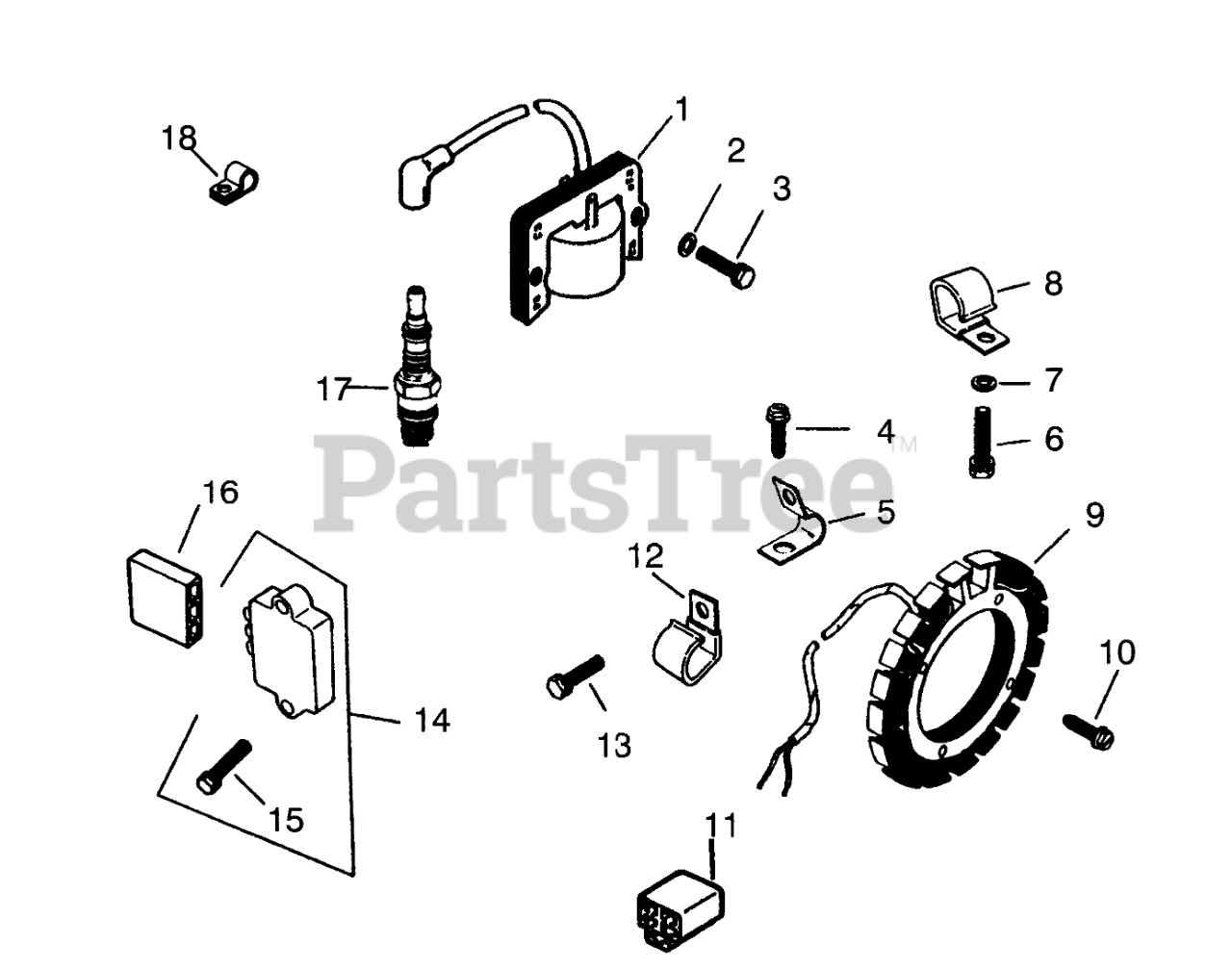

IGNITION SYSTEM Parts Diagram

  • Title

1

Toro KH10321

Module-Ignition

$

$

Not available

2

Toro KH10572

Washer

$

$

Not available

3

Toro KH10548

Screw

$

$

Not available

4

Toro KH10606

Screw-Hex. Hd.

$

$

Not available

5

Toro KH10618

Clip

$

$

Not available

6

Toro KH10610

Screw

$

$

Not available

7

Toro KH10570

Washer

$

$

Not available

8

Clip

$

$

Not available

9

Toro KH10091

Kit-Stator 15 am (Incl. Ref. #8)

$

$

Not available

10

Toro KH10605

Screw

$

$

Not available

11

Toro KH10345

Connector

$

$

Not available

12

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

13

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

14

Toro KH10215

Regulator-Rectifier

$

$

Not available

15

Toro KH10543

Screw

$

$

Not available

16

Toro KH10082

Connector

$

$

Not available

17

Toro KH10056

Plug-Spark

$

$

Not available

18

Toro KH10010

Clip-Hi-Tension

$

$

Not available

Toro KH10313

Lead-Violet, Regulator Rectifier to Connector

Note: Not illustrated

$

$

Not available

Toro KH10570

Washer

Note: Not illustrated

$

$

Not available

Toro KH10344

Clip

Note: Not illustrated

$

$

Not available
