73320 (310-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) HOOD STAND AND SUPPORT Parts Diagram

Garden Tractor

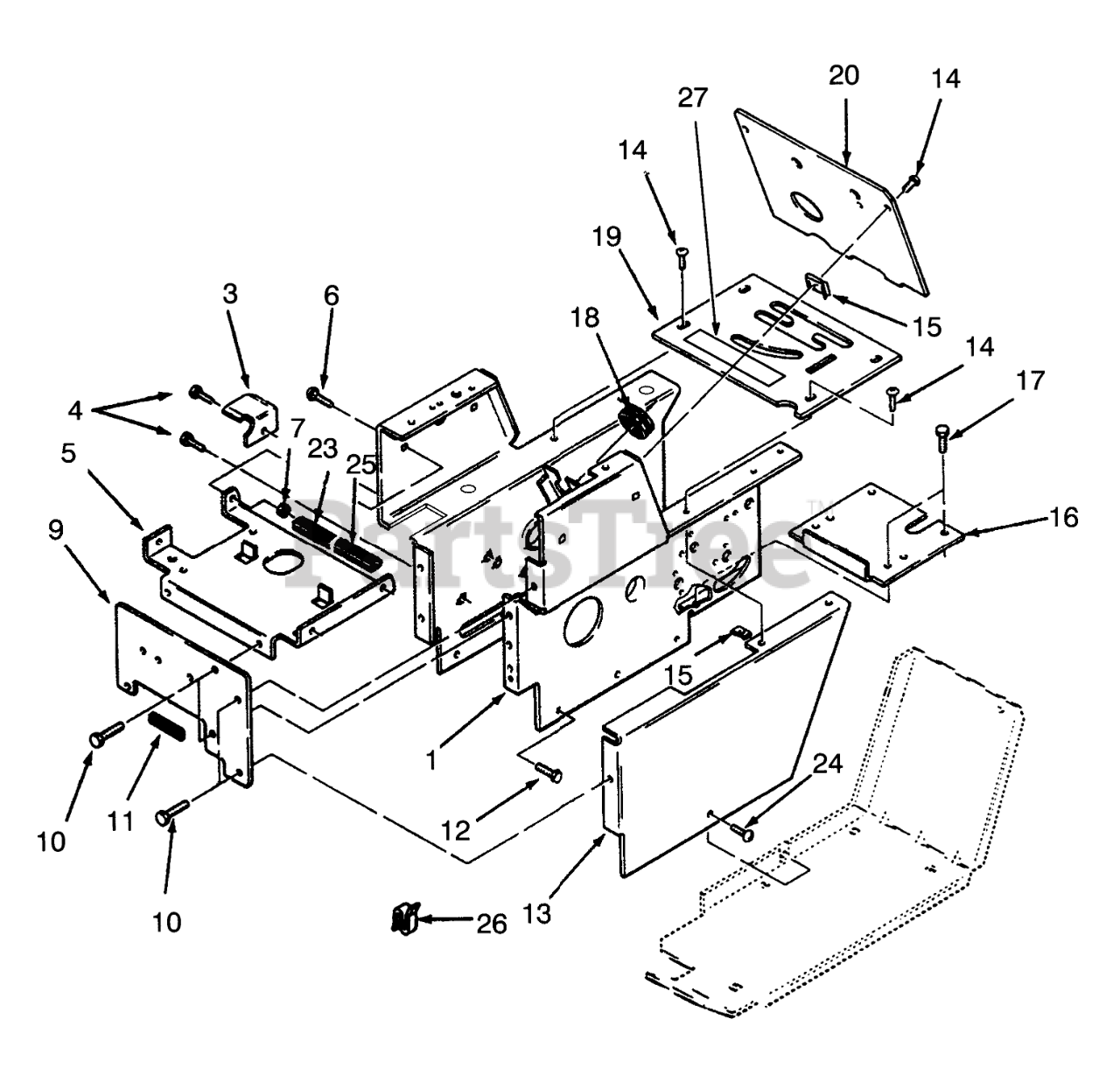

HOOD STAND AND SUPPORT Parts Diagram

  • Title

1

Toro 79-4900

Handstand
(Superseded to 95-7676-03)

$

$

Not available

3

Toro 88-2170

Bracket-Belt
(Superseded to 88-2170-03)

$

$

Not available

4

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

5

Toro 78-3010

SUPORT-BATERYB
(Superseded to 78-3010-03)

$

$

Not available

6

Toro 117371

BOLT CARR. 5/16X1/2 BK

$

$

Not available

7

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 78-3020

Front Plate
(Superseded to 78-3020-03)

$

$

Not available

10

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

11

Toro 106772

EDGE TRIM 4IN OF 102896

$

$

Not available

12

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

Toro 926696

Bolt
(Superseded to 9266964)

Note: Not illustrated

$9.49

$

Usually ships in 3-6 days

0

13

Toro 113935

Cover-Side LH
(Superseded to 113935-01)

$81.99

$

Usually ships in 3-6 days

0

14

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 106250

Cover-Dust
(Superseded to 106250-03)

$

$

Not available

17

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

18

Toro 104248

GROMMET

$12.99

$

Usually ships in 3-6 days

0

19

Toro 92-6529

Plate-Shift Cover (Incl. Ref. #27)

$32.99

$

In Stock, only 1 left!

0

20

Toro 110520

PLATE HOODSTAND B

$

$

Not available

23

Toro 110142

EDGE TRIM 5" OF 102896

$

$

Not available

24

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

25

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

26

Toro 3023

SPEED CLIP

$

$

Not available

27

Toro 79-0370

DECAL-DANGER

$

$

Not available
