73320 (310-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) FUEL SYSTEM Parts Diagram

Garden Tractor

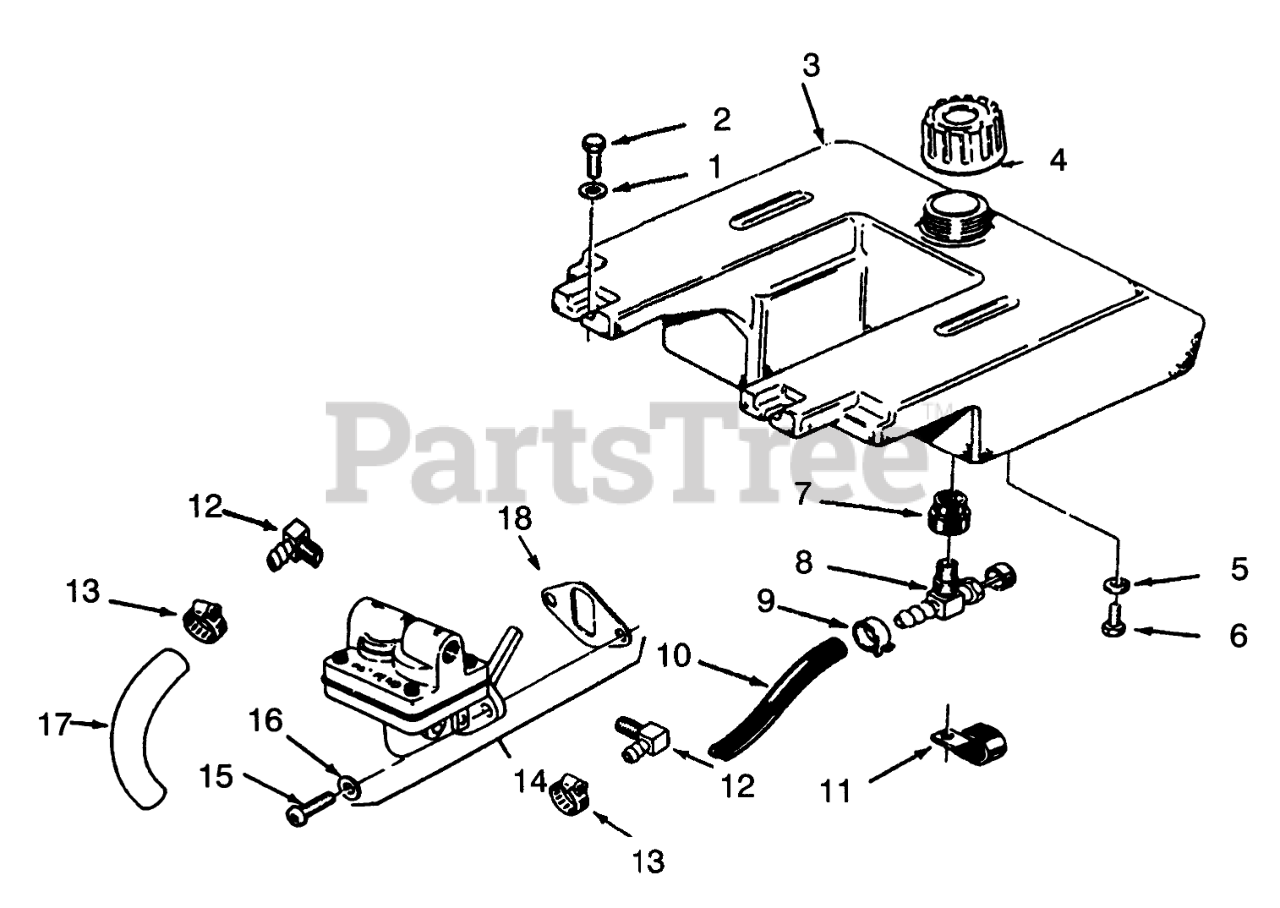

FUEL SYSTEM Parts Diagram

  • Title

1

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

2

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

3

Toro 106234

Tank-Fuel (Incl. Ref. #5 & 7)

$456.99

$

Usually ships in 3-6 days

0

4

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

7

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

8

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

9

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

10

Toro 110894

Line-Fuel 62"
(Superseded to 110521)

$

$

Not available

11

Toro 950154

Clamp

$

$

Not available

Toro 105490

CLAMP

Note: Not illustrated

$

$

Not available

12

Toro KH10123

Connector 90

$

$

Not available

13

Toro KH10586

Clamp

$

$

Not available

14

Toro KH10319

Pump Assy-Fuel (Incl. Ref. #16 & 19)

$

$

Not available

15

Toro KH10552

Screw-Pozidrive

$

$

Not available

16

Toro KH10569

Washer

$

$

Not available

17

Toro KH10130

Line-Fuel

$

$

Not available

18

Toro KH10095

Gasket

$

$

Not available
