73320 (310-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

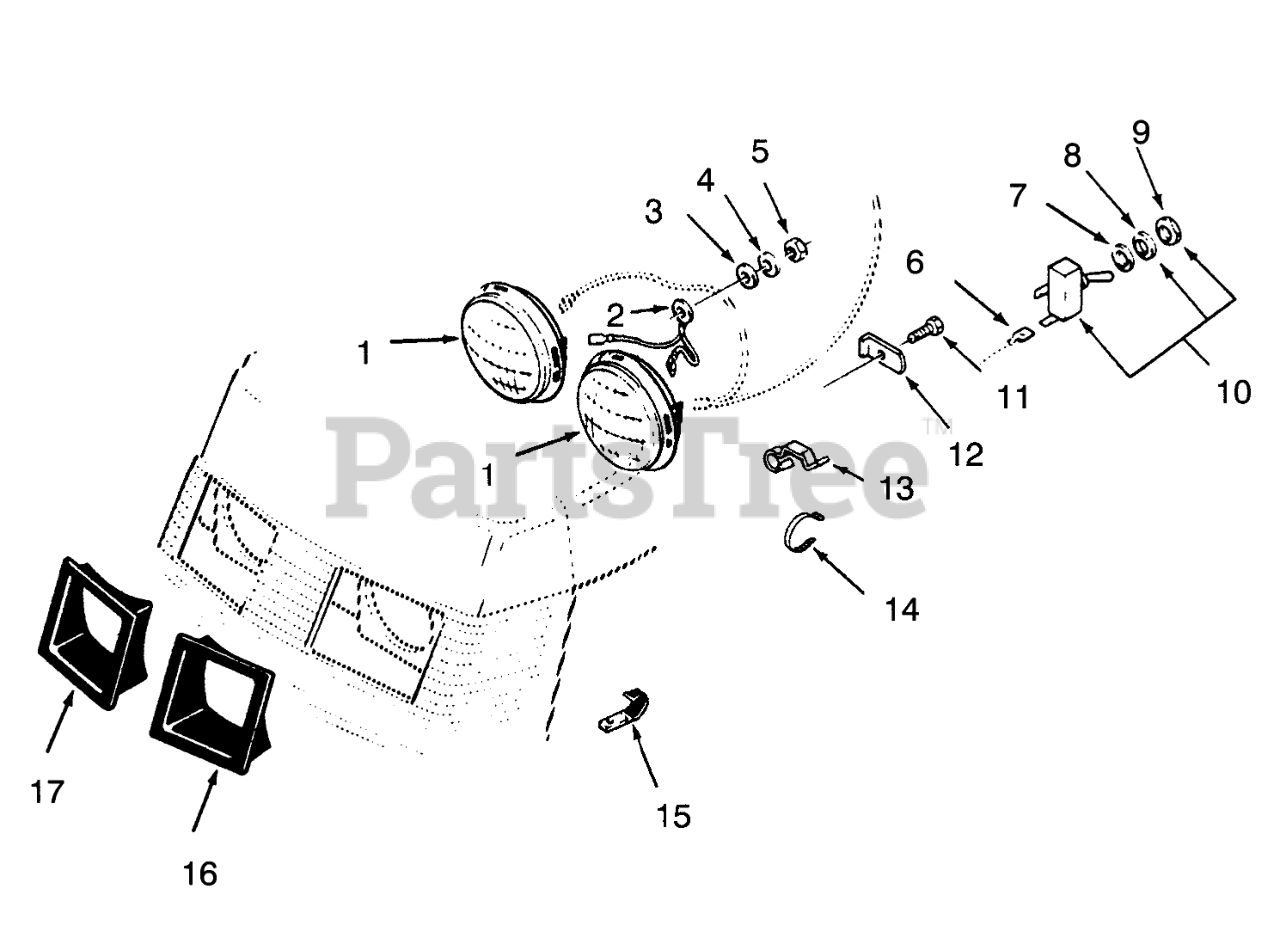

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 102881

HEADLAMP

$

$

Not available

2

Toro 108130

LIGHT GROUND WIRE

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 518104

Terminal

$

$

Currently unavailable

7

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

8

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

9

Toro 113179

DISC

$

$

Not available

10

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

11

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

12

Toro 109459

LOCK-HEADLIGHT

$7.99

$

In Stock, Qty 7

0

13

Toro 8519

CLIP-WIRE

$

$

Not available

14

Toro 100571

PLASTIC TIE

$

$

Not available

15

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

16

Toro 109495

BEZEL-HEADLIGHT, LH

$

$

Not available

17

Toro 109494

BEZEL-HEADLIGHT, RH

$

$

Not available
