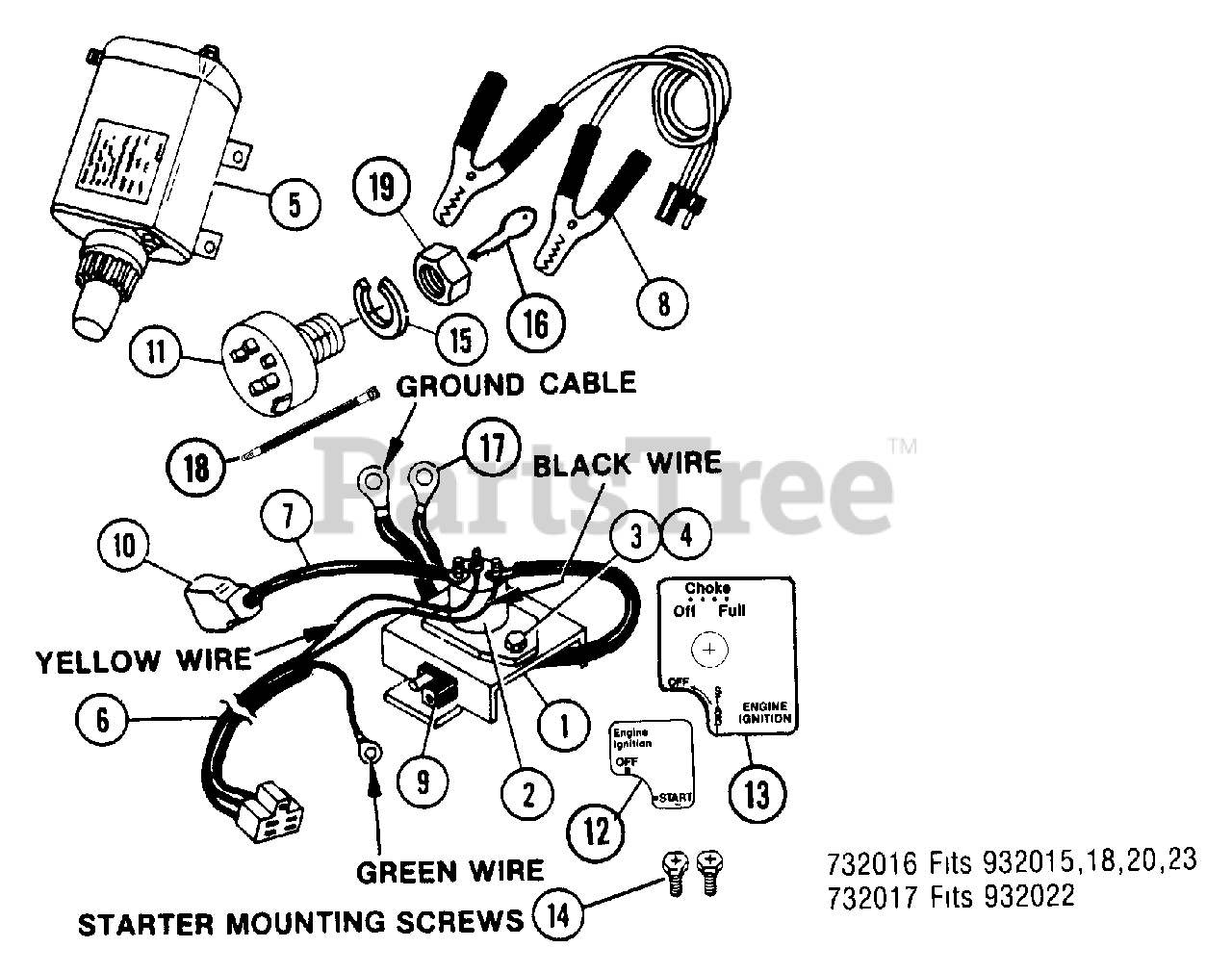

732016 - Ariens 12 Volt Start Kit Electric Starter 12 Volt Parts Diagram

12 Volt Start Kit

Electric Starter 12 Volt Parts Diagram

  • Title

1

Ariens 02446400

BRACKET
(Superseded to 02446451)

$

$

Not available

2

Ariens 03057700

SOLENOID

$

$

Not available

3

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

5

Starter Motor

Note: (17) Tec # 33606

$

$

Not available

Starter Motor

Note: (16) Tec # 33607

$

$

Not available

6

Ariens 03226400

WIRING HARNESS

$

$

Not available

7

Ariens 02458300

CABLE

$

$

Not available

8

Ariens 02446200

JUMPER CABLE W/CONNECTOR

$

$

Not available

9

Ariens 02446300

ADAPTER LEAD W/CONNECTOR

$

$

Not available

10

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

11

Ariens 027396

SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 5

0

12

Ariens 07786400

DECAL-SWITCH

$

$

Not available

13

Ariens 07786300

DECAL-CHOKE & SWITCH

$

$

Not available

14

Ariens 07406500

SCR-TAP .250-20X.62 CRHWH PL

$

$

Not available

15

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

16

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

17

Ariens 03226700

GROUND WIRE

$

$

Not available

18

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

19

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

Ariens 732016

Fits 932015,18,20,23

$

$

Not available

Ariens 732017

Fits 932022

$

$

Not available
