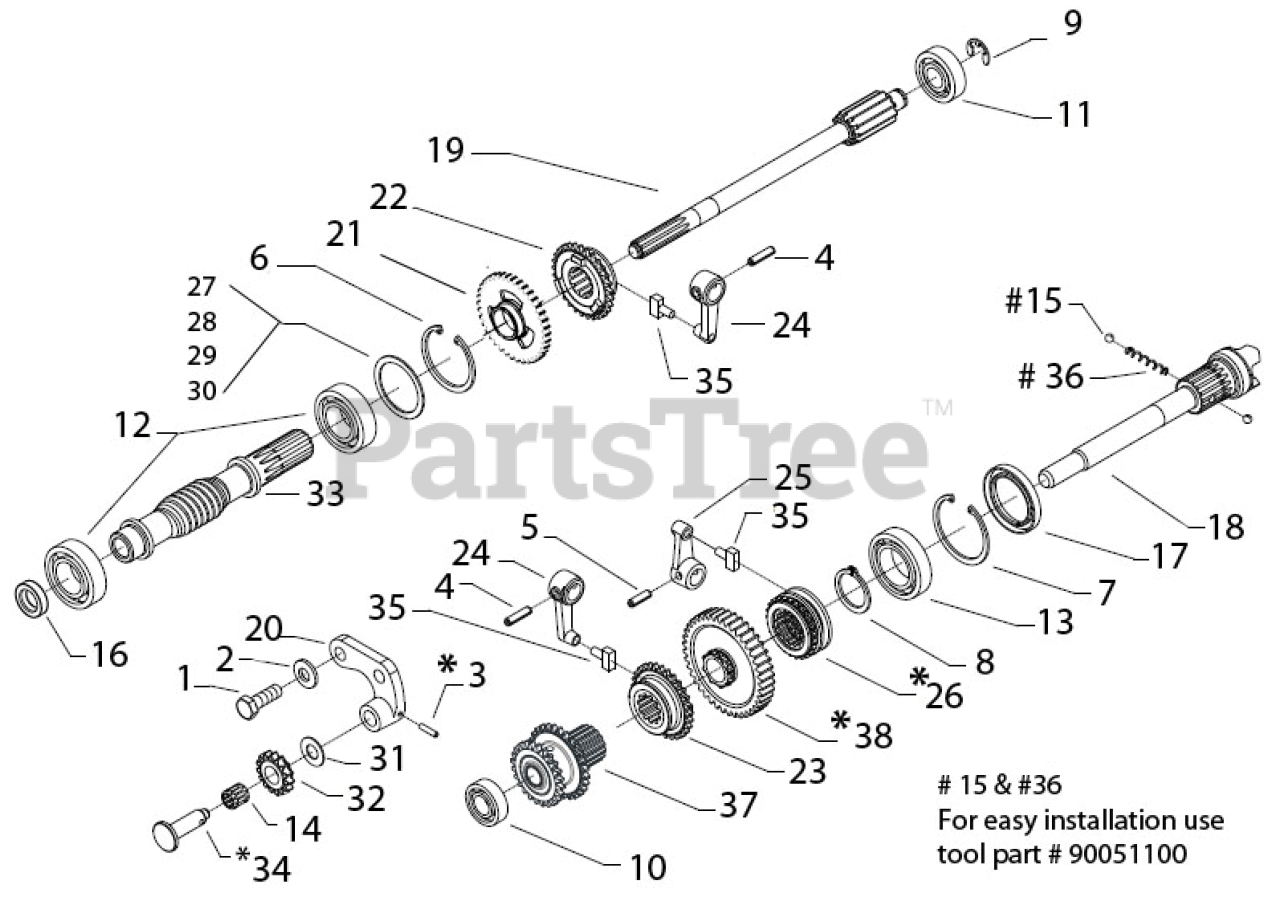

732 - BCS America Two-Wheeled Tractor Transmission (SN: 937702 & Above) Parts Diagram

Two-Wheeled Tractor

Transmission (SN: 937702 & Above) Parts Diagram

  • Title

1

BCS America 31112211

SCREW TE M10X30 UNI 5739

Note:

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 31421101

WASHER M10

Note:

$1.99

$

In Stock, only 3 left!

0

3

BCS America 34213024

ROLL PIN M4X24

Note:

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 34213060

ROLL PIN M6X24

Note:

$1.99

$

In Stock, only 2 left!

0

5

BCS America 34213061

ROLL PIN M6X20 SPIRAL

Note:

$1.49

$

In Stock, Qty 6

0

6

BCS America 35111052

SEEGER RING I 52 DIN 472

Note:

$1.99

$

In Stock, Qty 5

0

7

BCS America 35111055

SEEGER RING I 55 DIN 472

Note:

$2.49

$

In Stock, only 1 left!

0

8

BCS America 35121031

SEEGER RING E 30 UNI 7436

Note:

$1.99

$

In Stock, only 4 left!

0

9

BCS America 35211120

SEEGER RING E 12 UNI 7434

Note:

$1.49

$

In Stock, Qty 8

0

10

BCS America 37111150

BEARING M15X35X11

Note:

$

$

Not available

11

BCS America 37111152

BEARING M15X42X13

Note:

$17.99

$

Usually ships in 5-8 days

0

12

BCS America 37111255

BEARING M25X52X15

Note:

$15.99

$

In Stock, only 1 left!

0

13

BCS America 37112229

BEARING M30X55X13

Note:

$19.99

$

Usually ships in 5-8 days

0

14

BCS America 37320120

BEARINGM 12X15X10

Note:

$24.99

$

Usually ships in 5-8 days

0

15

BCS America 37910832

BALL 1/4

Note:

$0.99

$

In Stock, Qty 10

0

16

BCS America 38211500

OIL SEAL 15X28X7

Note:

$8.49

$

Usually ships in 5-8 days

0

17

BCS America 38213800

OIL SEAL 38X55

Note:

$11.99

$

Usually ships in 5-8 days

0

18

BCS America 52456335

PTO SHAFT

Note:

$179.99

$

Usually ships in 5-8 days

0

19

BCS America 52456339

MAIN INPUT SHAFT

Note:

$250.99

$

Usually ships in 5-8 days

0

20

BCS America 52456349

REVERSER BRACKET

Note:

$118.99

$

Usually ships in 5-8 days

0

21

BCS America 52456354

FIRST GEAR

Note:

$143.99

$

Usually ships in 5-8 days

0

22

BCS America 52456361

SLIDER GEAR

Note:

$156.99

$

Usually ships in 5-8 days

0

23

BCS America 52456370

PTO SLIDER

Note:

$156.99

$

Usually ships in 5-8 days

0

24

BCS America 52456389

LEVER SLIDER

Note:

$49.99

$

Usually ships in 5-8 days

0

25

BCS America 52456390

LEVER PTO ENGAGEMENT

Note:

$61.99

$

Usually ships in 5-8 days

0

26

BCS America 52456706

PTO SLIDER

Note:

$114.99

$

Usually ships in 5-8 days

0

27

BCS America 56356328

SHIM 1.5 MM

Note:

$12.99

$

In Stock, only 1 left!

0

28

BCS America 56356329

SHIM 1.6 MM

Note:

$12.99

$

Usually ships in 5-8 days

0

29

BCS America 56356330

SHIM 1.7 MM

Note:

$11.99

$

Usually ships in 5-8 days

0

30

BCS America 56356331

SHIM 1.8 MM

Note:

$12.99

$

Usually ships in 5-8 days

0

31

BCS America 56356348

ADJUSTING RING

Note:

$5.49

$

Usually ships in 5-8 days

0

32

BCS America 56456347

REVERSER GEAR

Note:

$124.99

$

Usually ships in 5-8 days

0

33

BCS America 56456475

WORM GEAR

Note:

$248.99

$

Usually ships in 5-8 days

0

34

BCS America 56456736

PIN

Note:

$50.99

$

Usually ships in 5-8 days

0

35

BCS America 58043086

SHOE

Note:

$10.99

$

Usually ships in 5-8 days

0

36

BCS America 58056391

SPRING FOR PTO BALLS

Note:

$1.99

$

In Stock, Qty 5

0

37

BCS America 59056384

DOUBLE GEAR

Note:

$263.99

$

Usually ships in 5-8 days

0

38

BCS America 59056707

PTO GEAR

Note:

$250.99

$

Usually ships in 5-8 days

0

38

BCS America 59968940

PTO KIT CONSISTS OF *26 & *38

Note:

$336.99

$

Usually ships in 5-8 days

0
