BCS America 732 - BCS America Two-Wheeled Tractor Handlebars (SN: 762216 - 870666) Parts Lookup with Diagrams

1

BCS America 311.11090

CAP SCREW, M6X14

Note:

$1.49

$

Usually ships in 5-8 days

2

BCS America 311.11097

CAP SCREW, M6X45

Note:

$1.49

$

In Stock, only 2 left!

3

BCS America 311.12089

CAP SCREW, M6X25

Note:

$1.49

$

In Stock, only 3 left!

4

BCS America 311.12092

CAP SCREW, M6X35

Note:

$1.49

$

Usually ships in 5-8 days

5

BCS America 311.12153

CAP SCREW, M8X35

Note:

$1.49

$

In Stock, only 2 left!

6

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, only 3 left!

7

BCS America 312.41060

LOCK NUT, M6

Note:

$0.99

$

In Stock, only 4 left!

8

BCS America 312.41080

LOCK NUT, M8

Note:

$0.99

$

In Stock, Qty 11

9

BCS America 314.11064

FLAT WASHER, M6

Note:

$0.99

$

In Stock, Qty 10

10

BCS America 314.11084

FLAT WASHER, M8

Note:

$0.99

$

In Stock, only 4 left!

11

BCS America 314.23084

LOCK WASHER, M8.4

Note:

$0.99

$

In Stock, Qty 10

12

BCS America 342.13020

PIN, SPLIT, M4 X 20 SPIROL

Note:

$1.49

$

Usually ships in 5-8 days

13

BCS America 552.48041

LEVER, MOTOR STOP

Note:

$24.99

$

In Stock, only 3 left!

14

BCS America 552.48038

GUIDE, CABLE

Note:

$7.49

$

In Stock, only 1 left!

15

BCS America 552.48283

LEVER, REVERSER

Note:

$34.99

$

In Stock, only 3 left!

16

BCS America 552.48284

LEVER, DIFF/ STEERING RELEASE

Note:

$13.99

$

In Stock, only 1 left!

17

BCS America 561.47655

LEVER, CLUTCH

Note:

$45.99

$

In Stock, only 1 left!

18

BCS America 561.48037

Note:

$3.49

$

Usually ships in 5-8 days

19

BCS America 561.48285

Note:

$20.99

$

In Stock, only 1 left!

20

BCS America 561.48286

DRILLED PIN

Note:

$22.99

$

In Stock, only 1 left!

21

BCS America 561.48287

BUSHING, REVERSE LEVER

Note:

$9.99

$

In Stock, only 2 left!

22

BCS America 561.50361

LEVER, SPACER

Note:

$4.99

$

In Stock, only 1 left!

23

BCS America 561.57332

PIN, REVERSE CABLE

Note:

$45.99

$

Usually ships in 5-8 days

24

BCS America 580.02429

CABLE CLAMP

Note:

$5.99

$

In Stock, only 2 left!

25

BCS America 580.02538

ACCELERATOR LEVER

Note:

$34.99

$

In Stock, only 1 left!

26

BCS America 580.42167

SHEATH END

Note:

$2.99

$

In Stock, only 2 left!

27

BCS America 580.42200

CLAMP

Note:

$6.49

$

Usually ships in 5-8 days

28

BCS America 580.42202

SCREW, ADJUSTING M8

Note:

$6.99

$

In Stock, only 1 left!

29

BCS America 580.48000

GRIP

Note:

$7.49

$

Usually ships in 5-8 days

30

BCS America 580.48012

CABLE, ACCELERATOR, 73SHX79

Note:

$29.99

$

In Stock, only 3 left!

31

BCS America 580.51670

STOP WIRE

Note:

$5.49

$

Usually ships in 5-8 days

32

BCS America 580.57343

CABLE AND SHEATH, CLUTCH

Note:

$32.99

$

In Stock, only 1 left!

33

BCS America 580.56155

SPRING

Note:

$9.99

$

Usually ships in 5-8 days

34

BCS America 580.56593

SPRING

Note:

$5.49

$

In Stock, only 1 left!

35

BCS America 580.56595

SCREW, ADJUSTMENT

Note:

$9.49

$

In Stock, only 2 left!

36

BCS America 580.57284

CABLE & SHEATH, STEERING COLUMN RELEASE

Note:

$38.99

$

In Stock, only 2 left!

37

BCS America 580.57329

CABLE AND SHEATH, REVERSE

Note:

$24.99

$

In Stock, only 1 left!

38A

BCS America 580.57416

CABLE, MOTOR STOP - SHEATH LENGTH =24.5"

Note:

$33.99

$

In Stock, only 2 left!

38B

BCS America 580.57418

CABLE, MOTOR STOP - SHEATH LENGTH =29.5"

Note:

$31.99

$

Usually ships in 5-8 days

39

BCS America 581.47704

SCREW, ADJUSTING M6

Note:

$9.49

$

Usually ships in 5-8 days

40

BCS America 581.50313

BARREL

Note:

$11.99

$

Usually ships in 5-8 days

41

BCS America 581.56156

CLAMP

Note:

$20.99

$

Usually ships in 5-8 days

42

BCS America 592.57156

HANDLEBAR

Note:

$283.99

$

Usually ships in 5-8 days

43

BCS America 580.57263

CABLE CLAMP

Note:

$5.99

$

Usually ships in 5-8 days

44

BCS America 580.57297

CABLE AND SHEATH, DIFFERENTIA

Note:

$32.99

$

In Stock, only 1 left!

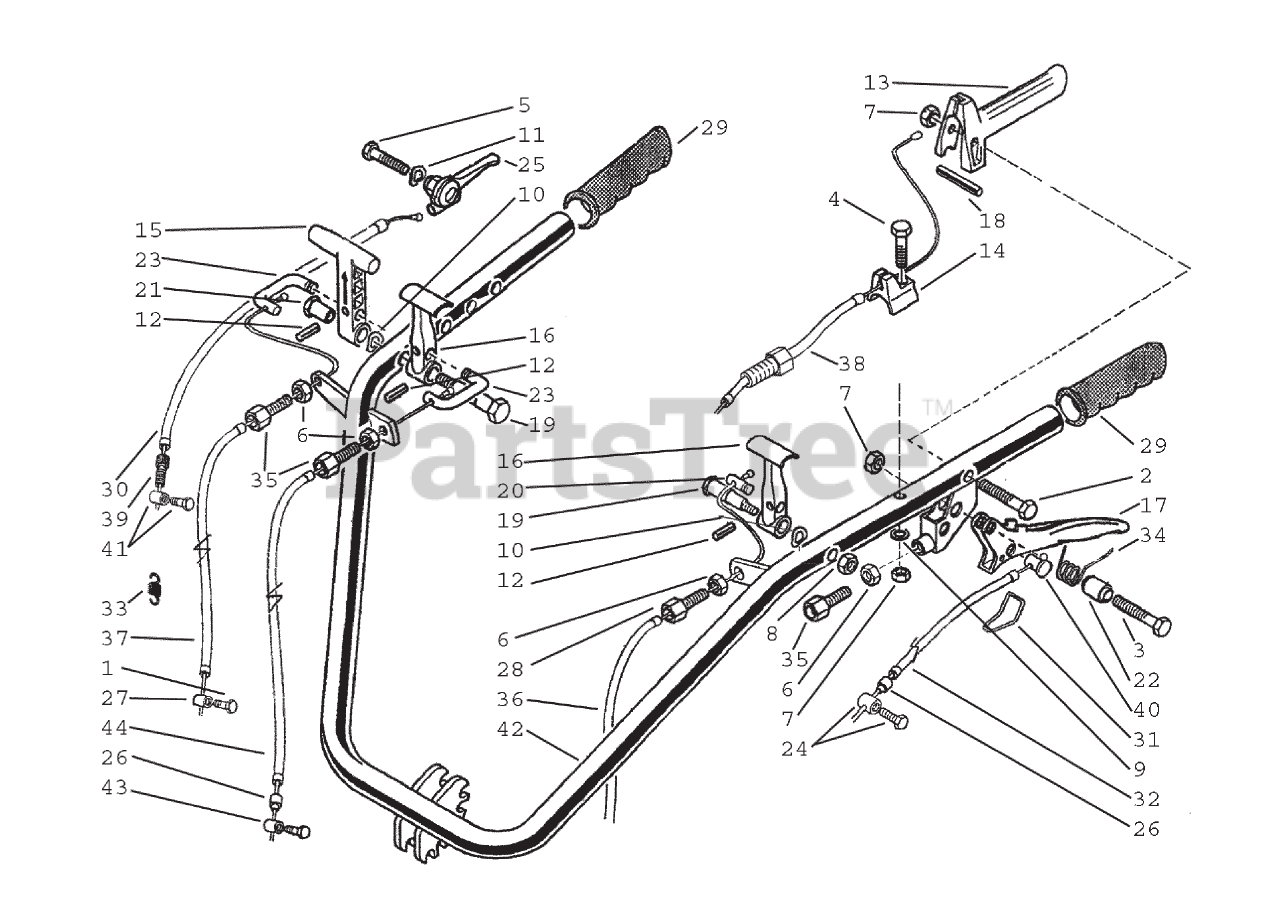

732 - BCS America Two-Wheeled Tractor Handlebars (SN: 762216 - 870666) Parts Diagram

Handlebars (SN: 762216 - 870666) Parts Diagram
