731055 - Ariens 48" Dethatcher Attachment Dethatcher Parts Diagram

48" Dethatcher Attachment

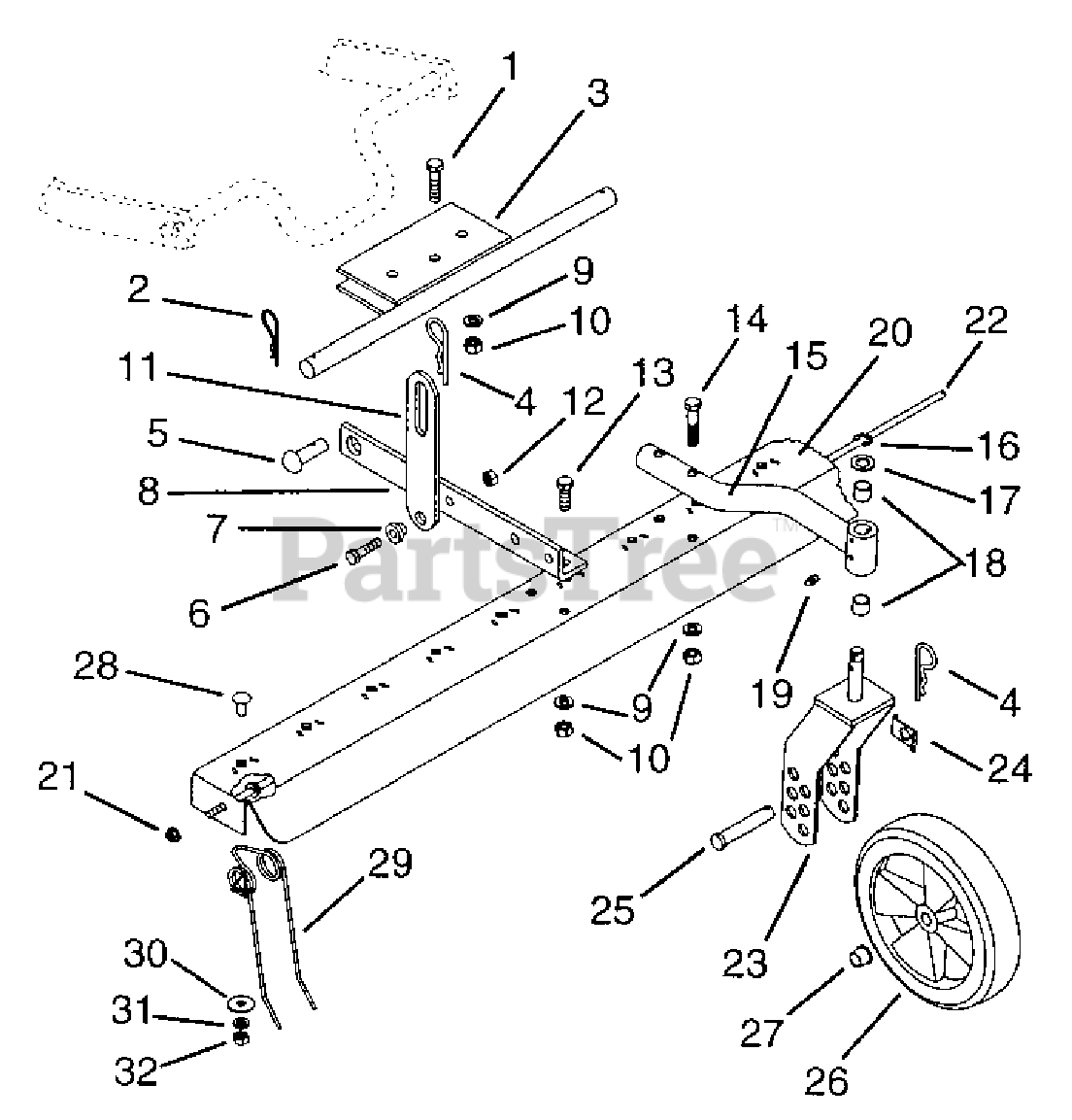

Dethatcher Parts Diagram

  • Title

1

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

2

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 10

0

3

Ariens 03061551

BRACKET WELDMENT

$

$

Not available

4

Ariens 06714000

PIN-HAIR-INT .15X2.937 YWZC

$2.99

$

In Stock, Qty 6

0

5

Ariens 06805500

PIN-CLEV .50X1.25 RH ST PL

$

$

Not available

6

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

7

Ariens 05514400

BSHG-FLG .344X.468X.485X.750

$19.99

$

Usually ships in 4-12 days

0

8

Ariens 03072151

ANGLE BRACKET

$

$

Not available

9

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03187751

LIMITING ARM

$

$

Not available

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

13

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 03051551

WHEEL BRACKET WELDMENT

$

$

Not available

16

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 13

0

17

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05515900

BSHG-SLV .500X.625X.500

$6.99

$

Usually ships in 4-12 days

0

19

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

20

Ariens 03071651

CHANNEL

$

$

Not available

21

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03062400

ROD

$

$

Not available

23

Ariens 01167851

WHEEL YOKE WELDMENT
(Superseded to 01167859)

$136.99

$

Usually ships in 4-12 days

0

24

Ariens 01168100

AXLE TAB

$16.99

$

In Stock, only 2 left!

0

25

Ariens 01168300

PIN-CLEV .494X2.62 YWZC

$9.49

$

In Stock, only 2 left!

0

26

Ariens 07149900

WHL 7.50" .50 BORE, 1.50 HUB

$25.99

$

In Stock, Qty 20+

0

27

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

28

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

29

Ariens 01136100

SPRING

$22.99

$

In Stock, only 1 left!

0

30

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

31

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0
