731048 - Ariens 48" Dethatcher Attachment Dethatcher 48" Parts Diagram

48" Dethatcher Attachment

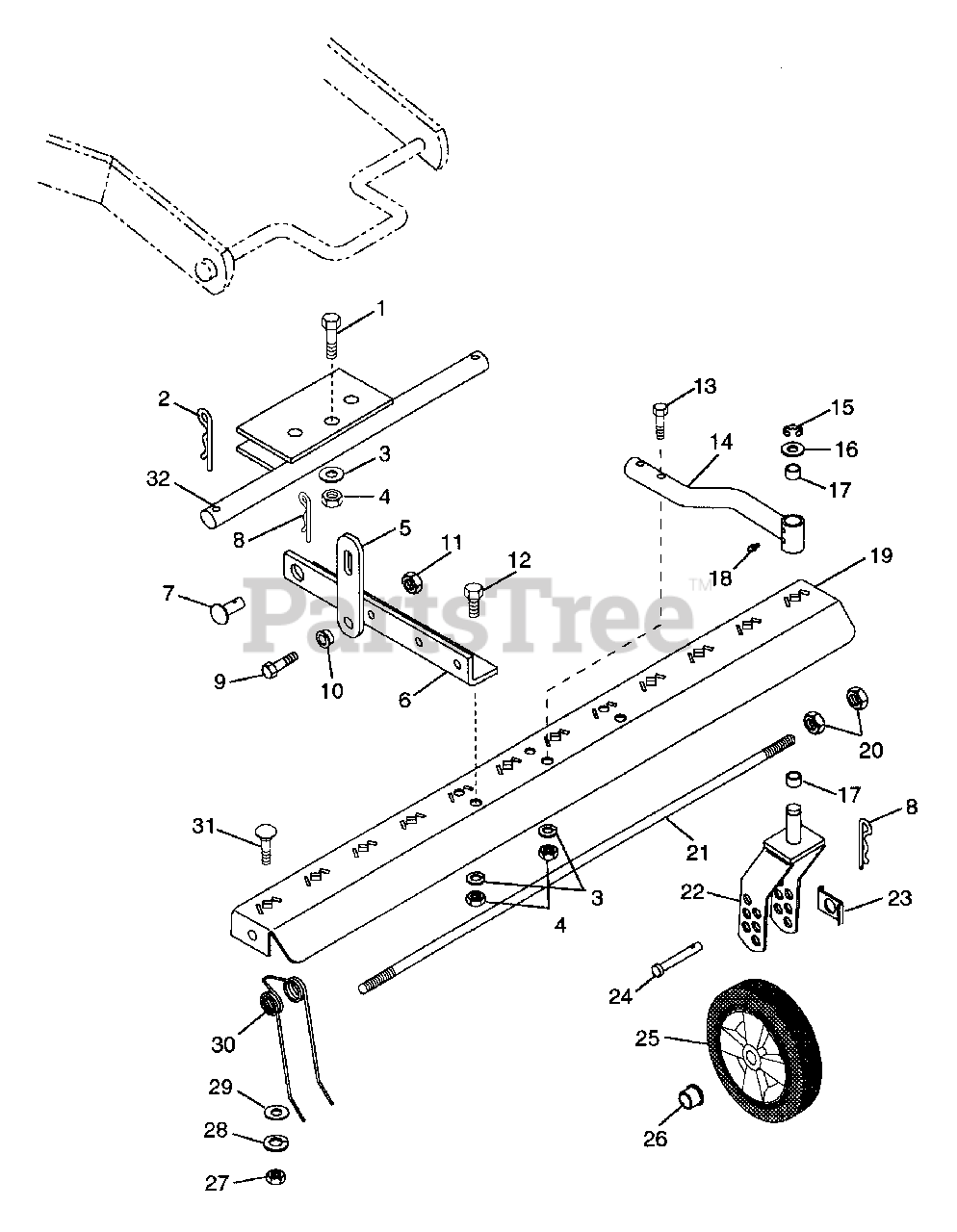

Dethatcher 48" Parts Diagram

  • Title

1

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

2

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

3

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

4

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03187700

LIMITING ARM
(Superseded to 03187743)

$19.99

$

Usually ships in 4-12 days

0

6

Ariens 03072100

ANGLE BRACKET

$

$

Not available

7

Ariens 06805500

PIN-CLEV .50X1.25 RH ST PL

$

$

Not available

8

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

9

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

10

Ariens 05514400

BSHG-FLG .344X.468X.485X.750

$19.99

$

Usually ships in 4-12 days

0

11

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 03051500

WHEEL BRACKET WELDMENT
(Superseded to 03051551)

$

$

Not available

15

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 14

0

16

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 05515900

BSHG-SLV .500X.625X.500

$6.99

$

Usually ships in 4-12 days

0

18

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

19

Ariens 03071600

CHANNEL
(Superseded to 03071659)

$

$

Not available

20

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03062400

ROD

$

$

Not available

22

Ariens 01167800

WHEEL YOKE WELDMENT
(Superseded to 01167859)

$136.99

$

Usually ships in 4-12 days

0

23

Ariens 01168100

AXLE TAB

$16.99

$

In Stock, only 2 left!

0

24

Ariens 01168300

PIN-CLEV .494X2.62 YWZC

$9.49

$

In Stock, only 2 left!

0

25

Ariens 07120100

WHEEL
(Superseded to 51116000)

$67.99

$

In Stock, only 1 left!

0

26

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

27

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

28

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

30

Ariens 01136100

SPRING

$22.99

$

In Stock, only 1 left!

0

31

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 03061500

BRACKET WELDMENT
(Superseded to 03061559)

$

$

Not available
