731046 - Ariens Rear PTO Kit, Electric Electric Rear PTO Parts Diagram

Rear PTO Kit, Electric

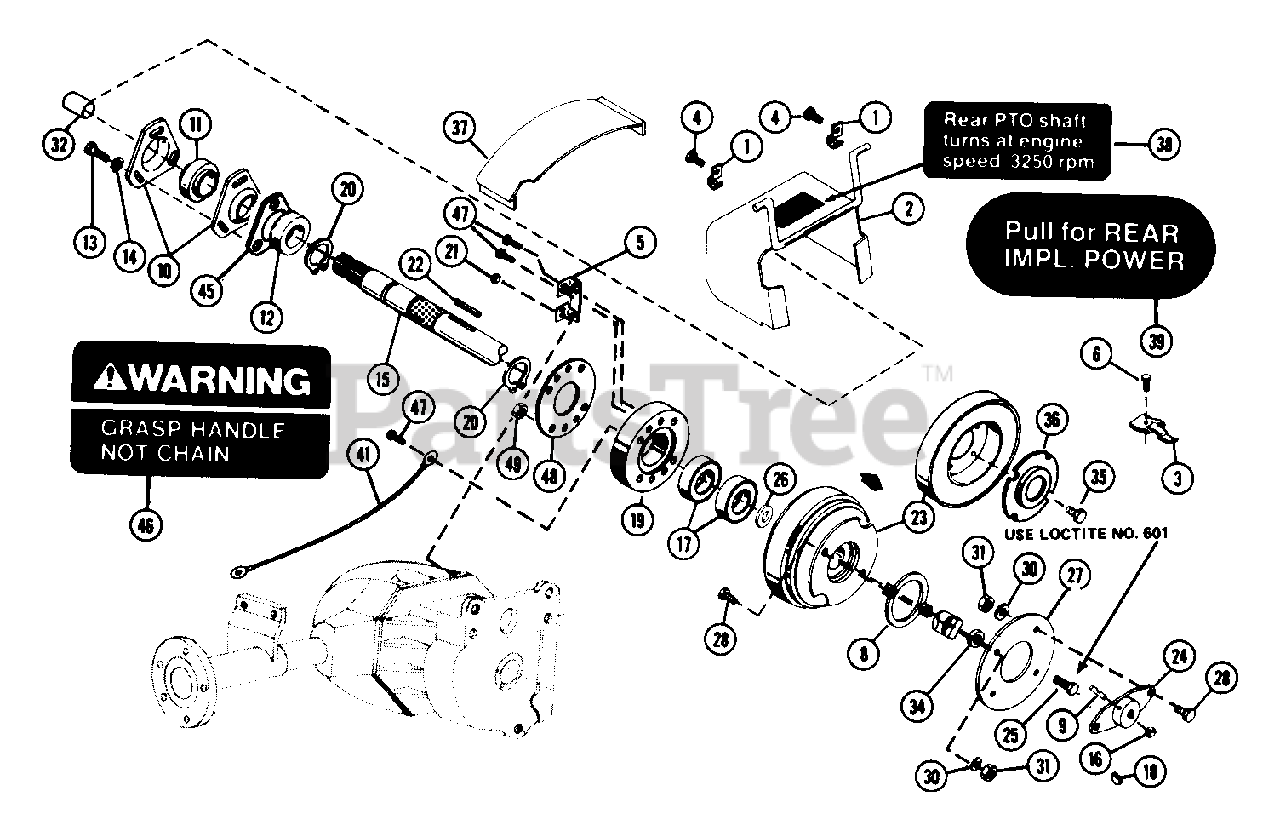

Electric Rear PTO Parts Diagram

  • Title

1

Ariens 03016400

CLIP

$16.99

$

Usually ships in 4-12 days

0

2

Ariens 03016300

PTO SHIELD

$

$

Not available

3

Ariens 03130500

SNAP FASTENER

$

$

Not available

4

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 63126100

TORQUE BRACKET ASSEMBLY
(Superseded to 53121700)

$206.99

$

Usually ships in 4-12 days

0

6

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

8

Ariens 03015800

PILOT PLATE

$

$

Not available

9

Ariens 03013900

LOCK STUD

$

$

Not available

10

Ariens 03102000

BEARING FLANGE

$21.99

$

Usually ships in 4-12 days

0

11

Ariens 05411000

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

12

Ariens 03131500

BEARING COLLAR
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

13

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 03036700

SHAFT

$410.99

$

Usually ships in 4-12 days

0

16

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$14.99

$

In Stock, Qty 7

0

18

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

19

Ariens 03036400

BEARING MOUNT

$

$

Not available

20

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

21

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

$

$

Not available

22

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, only 2 left!

0

23

Ariens 03199000

ELECTRIC CLUTCH

$

$

Not available

24

Ariens 03198800

COUPLING

$

$

Not available

25

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

26

Ariens 06419900

WSHR-FL-STL 1.031X1.375X.055
(Superseded to 06444900)

$

$

Not available

27

Ariens 03199300

SPACER COUPLING

$41.99

$

Usually ships in 4-12 days

0

28

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 07506000

SHAFT COVER

$4.49

$

In Stock, only 2 left!

0

34

Ariens 03015700

RETAINER

$

$

Not available

35

Ariens 06106000

SCR-MCH 10-24X1.25 SLPAN PL
(Superseded to 06117500)

$

$

Not available

36

Ariens 03036600

BEARING FLANGE

$

$

Not available

38

Ariens 07860000

REAR PTO DECAL - 3200 RPM

$

$

Not available

39

Ariens 07854800

REAR IMPLEMENT DECAL

$

$

Not available

41

Ariens 02303000

GROUND WIRE

$

$

Not available

42

Ariens 03115000

CLUTCH SWITCH
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

43

Ariens 07506800

KNOB

$5.99

$

Usually ships in 4-12 days

0

44

Ariens 03017100

CLUTCH HARNESS

$

$

Not available

45

Ariens 03026400

SHIM

$

$

Not available

46

Ariens 07849400

CHAIN WARNING DECAL
(Superseded to 07768700)

$

$

Not available

47

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

48

Ariens 03036500

RING

$

$

Not available

49

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0
