731028 - Ariens Sno-Thro Counter Balance Kit Sno-Thro Counter Balance Kit Parts Diagram

Sno-Thro Counter Balance Kit

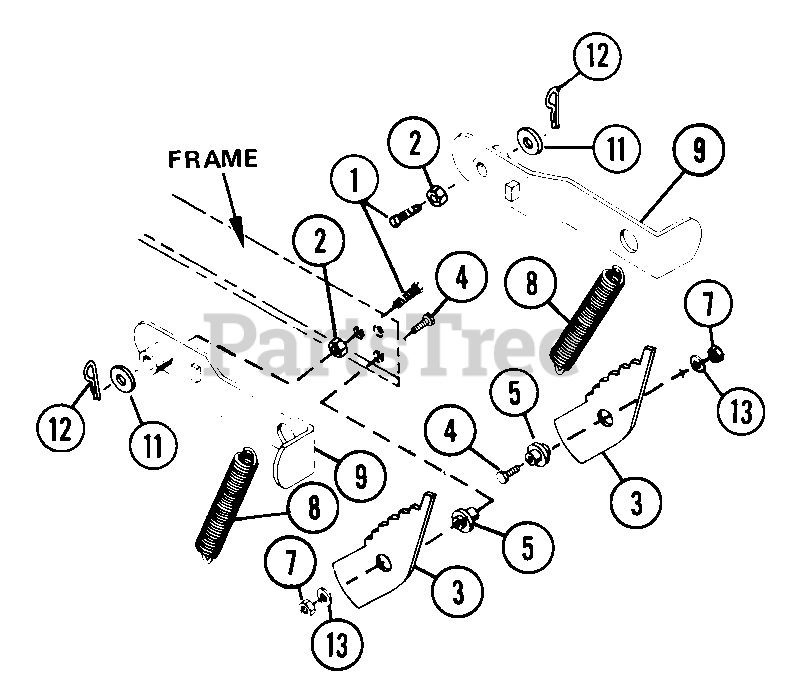

Sno-Thro Counter Balance Kit Parts Diagram

  • Title

Ariens 73102800

SNO-THRO COUNTER BALANCE KIT

Note: (Used Only On Model(s): 831010).

$

$

Not available

1

Ariens 01226800

STUD-WEIGHT

$

$

Not available

2

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

3

Ariens 03019300

SPRING ASSIST CONTROL
(Superseded to 03037951)

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

5

Ariens 03019100

SPACER .323X.498X.531X1.000

$34.99

$

In Stock, only 1 left!

0

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 08317700

SG-TENS .188X1.50X8.5 WLD 57

$39.99

$

Usually ships in 4-12 days

0

9

Ariens 03019200

SPRING ARM

$161.99

$

Usually ships in 4-12 days

0

11

Ariens 06409600

WSHR-FL-STL .458X.750X.06 PL

$

$

Not available

12

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0
