731006 - Ariens Tine Extension Kit Tine Extension 8" Parts Diagram

Tine Extension Kit

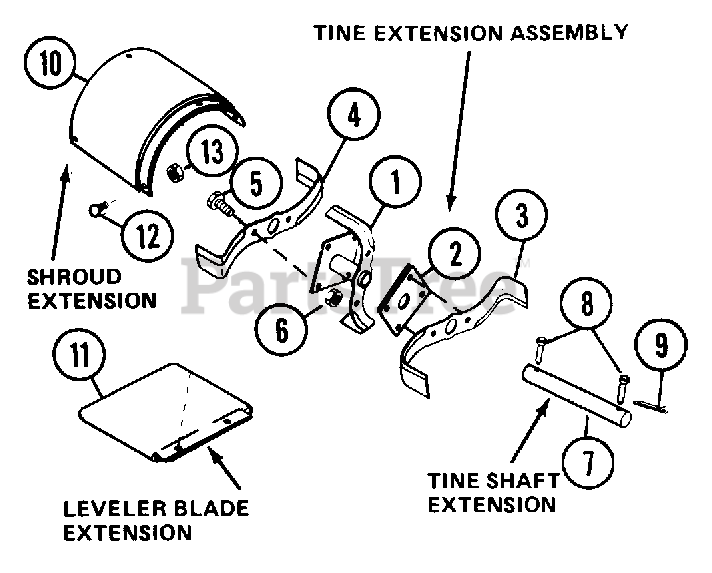

Tine Extension 8" Parts Diagram

  • Title

FOR USE ON TILLER MODEL 831006

$

$

Not available

1

Ariens 03145200

TINE EXTENTION

$

$

Not available

2

Ariens 03145300

TINE PLATE

$

$

Not available

3

Ariens 03145100

R H TINE

$

$

Not available

4

Ariens 03145000

L H TINE

$

$

Not available

5

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

6

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$2.99

$

In Stock, Qty 12

0

7

Ariens 03145400

SHAFT EXTENSION

$

$

Not available

8

Ariens 03145800

CLEVIS PIN

$

$

Not available

9

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

10

Ariens 03145500

SHROUD EXTENSION

$

$

Not available

11

Ariens 03145600

BLADE LEVEL EXTENSION

$

$

Not available

12

Ariens 06204600

BLT-RDHDSQNK .31-18X.50 GR5 PL
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

13

Ariens 06509500

NUT-CROWN .312-18 PL
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0
