7305 (54A-447D100) - Cub Cadet Compact Tractor Repair Gasket Kit 30HP Engine 7305 S/N 23070 & Up Parts Diagram

Compact Tractor

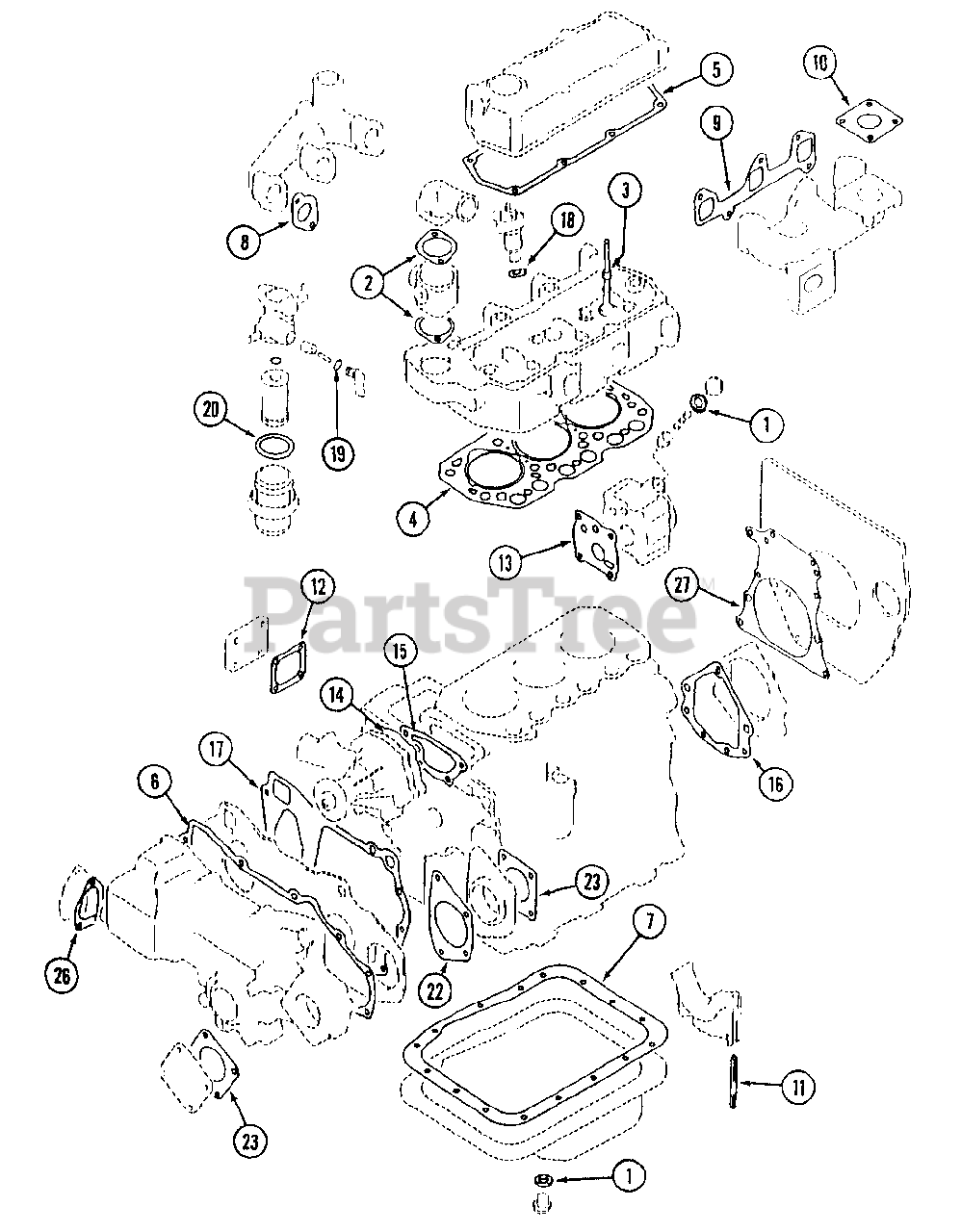

Repair Gasket Kit 30HP Engine 7305 S/N 23070 & Up Parts Diagram

  • Title

1

Cub Cadet MA-30H94-01010

Gasket Kit
(Superseded to MA-30H94-11010)

Note: Includes items 1-27

$

$

Not available

1

Cub Cadet MA-MD000312

Gasket, Oil Drain Plug

$

$

Not available

2

Cub Cadet MA-MD000551

Gasket
(Superseded to MA-31A46-11200)

Note: Included in Gasket Kit P/N MA-30H97-00048

$9.99

$

In Stock, only 1 left!

0

3

Cub Cadet MA-MM413060

Seal, Valve Stem
(Superseded to MA-MM41306001)

Note: Included in Gasket Kit P/N MA-30H97-00048

$

$

Not available

4

Cub Cadet MA-30H01-00300

Gasket, Cylinder Head

$134.99

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-30H04-00100

Gasket, Rocker Cover
(Superseded to MA-30H04-00101)

Note: Included in Gasket Kit P/N MA-30H97-00048

$

$

Not available

6

Cub Cadet MA-30H11-00201

Gasket, Gear Case
(Superseded to MA-30H11-00202)

$39.99

$

Usually ships in 3-6 days

0

7

Cub Cadet MA-30H13-00101

Gasket, Oil Pan

$88.99

$

Usually ships in 3-6 days

0

8

Cub Cadet MA-MM407305

Gasket, Inlet
(Superseded to MA-30H30-04200)

Note: Included in Gasket Kit P/N MA-30H97-00048

$1.49

$

In Stock, only 1 left!

0

9

Cub Cadet MA-30H30-00100

Gasket, Exhaust Manifold

Note: Included in Gasket Kit P/N MA-30H97-00048

$

$

Not available

10

Cub Cadet MA-30A30-00200

Gasket

Note: Included in Gasket Kit P/N MA-30H97-00048

$8.99

$

Usually ships in 3-6 days

0

11

Cub Cadet MA-MM406228

Seal, Side

$

$

Not available

12

Cub Cadet MA-30A63-00101

Gasket, Cover

$

$

Not available

13

Cub Cadet MA-30H35-00101

Gasket, Oil Pump Body

$

$

Not available

14

Cub Cadet MA-MM409326

Gasket, Water Pump

$

$

Not available

15

Cub Cadet MA-30H45-00101

Gasket, Water Pump

$

$

Not available

16

Cub Cadet MA-30H07-00201

Gasket, Oil Seal

$

$

Not available

17

Cub Cadet MA-30H07-00300

Gasket, Front Plate

$

$

Not available

18

Cub Cadet MA-MM432045

Gasket, Nozzle Holder

Note: Included in Gasket Kit P/N MA-30H97-00048

$6.99

$

In Stock, only 3 left!

0

19

Cub Cadet MA-MM404874

O-Ring, Valve
(Superseded to MA-F3151-01010)

$

$

Not available

20

Cub Cadet MA-MM404878

O-Ring, Filter Cup
(Superseded to MA-30L62-02500)

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet MA-30H11-00101

Gasket, Housing

$21.99

$

In Stock, only 1 left!

0

23

Cub Cadet MA-30A11-00101

Gasket, Oil Pump Cover

$

$

Not available

26

Cub Cadet MA-30A11-00301

Gasket, Governor Cover
(Superseded to MA-30A11-00300)

$

$

Not available

27

Cub Cadet MA-30H12-00101

Gasket, Rear Plate

$

$

Not available

Cub Cadet MA-30H97-00048

Gasket Kit

Note: Includes Ref. Nos. 2,3,5,8,9,10,and 18

$

$

Not available
