7305 (54A-447D100) - Cub Cadet Compact Tractor Oil Pan & Gear Case 30HP Eng (7300 SN 21932-Lower/7305 SN 23069-Lower) Parts Diagram

Compact Tractor

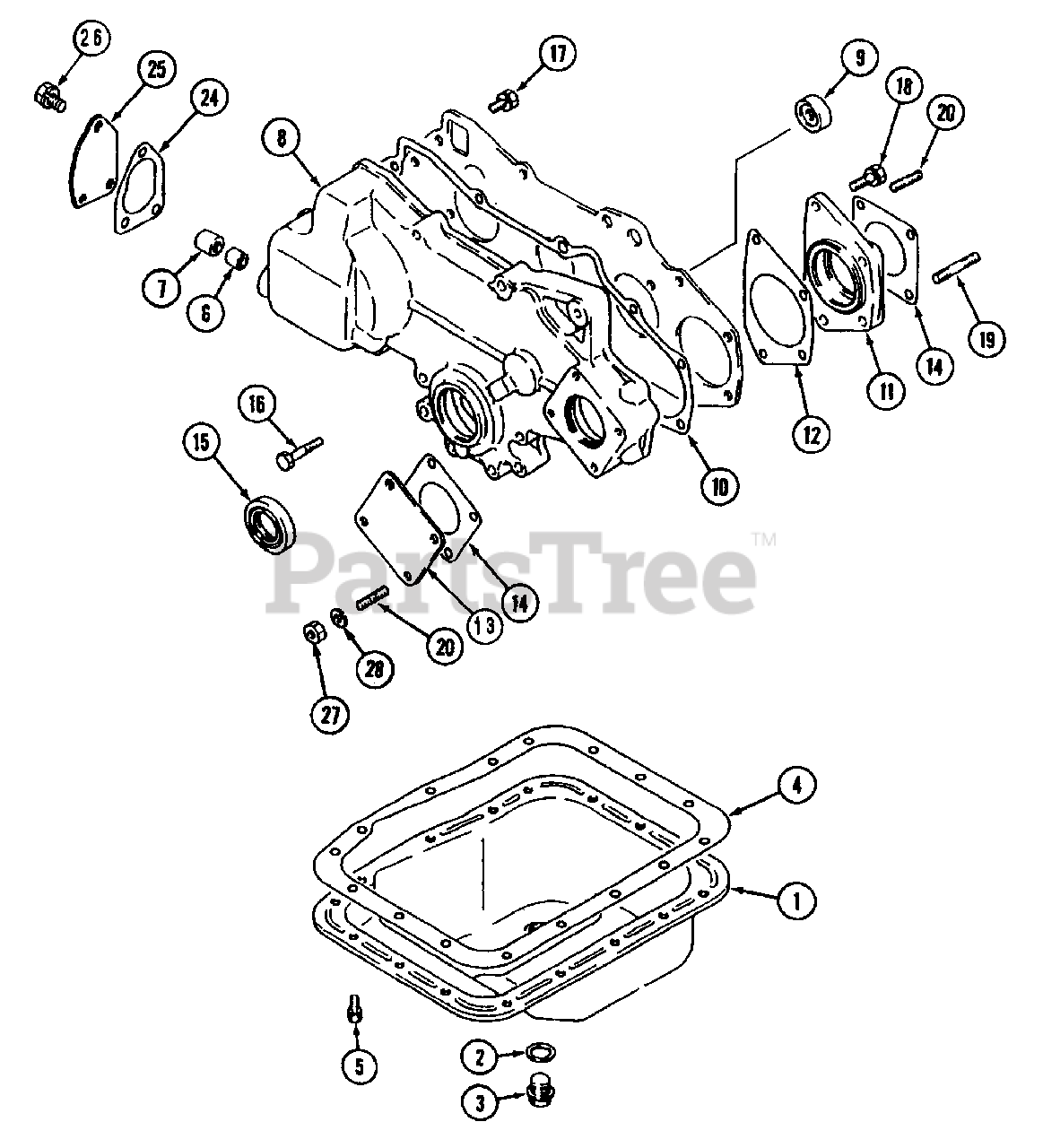

Oil Pan & Gear Case 30HP Eng (7300 SN 21932-Lower/7305 SN 23069-Lower) Parts Diagram

  • Title

1

Cub Cadet MA-MM435538

Pan Ass'y., Oil

$

$

Not available

2

Cub Cadet MA-MD000312

Gasket, Oil Drain Plug

$

$

Not available

3

Cub Cadet MA-MD000318

Plug, Oil Drain

$

$

Not available

4

Cub Cadet MA-30H13-00101

Gasket, Oil Pan

$88.99

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-MF240051

Bolt, W/Washer

$

$

Not available

6

Cub Cadet MA-MM406420

Bearing, Needle

$

$

Not available

7

Cub Cadet MA-MM406421

Bearing, Needle

$

$

Not available

8

Cub Cadet MA-MM43722603

Case, Gear

$

$

Not available

9

Cub Cadet MA-MM409718

Plug, Thrust

$

$

Not available

10

Cub Cadet MA-30H11-00201

Gasket, Gear Case
(Superseded to MA-30H11-00202)

$39.99

$

Usually ships in 3-6 days

0

11

Cub Cadet MA-30H11-00400

Housing, Pump Gear Bearing
(Superseded to MA-30H11-00401)

$

$

Not available

12

Cub Cadet MA-30H11-00101

Gasket, Housing

$21.99

$

In Stock, only 1 left!

0

14

Cub Cadet MA-30A11-00101

Gasket, Oil Pump Cover

$

$

Not available

13

Cub Cadet MA-MM401205

Cover, Oil Pump
(Superseded to MA-MM398237)

$

$

Not available

15

Cub Cadet MA-MD008762

Oil Seal

$

$

Not available

16

Cub Cadet MA-MF100064

Bolt

$

$

Not available

17

Cub Cadet MA-MF240051

Bolt, W/Washer

$

$

Not available

18

Cub Cadet MA-MF241255

Bolt, W/Washer

$

$

Not available

19

Cub Cadet MA-MS401434

Stud

$

$

Not available

20

Cub Cadet MA-MS401426

Stud

$

$

Not available

24

Cub Cadet MA-30A11-00301

Gasket, Governor Cover
(Superseded to MA-30A11-00300)

$

$

Not available

25

Cub Cadet MA-MM408233

Cover, Governor

$

$

Not available

26

Cub Cadet MA-MF240051

Bolt, W/Washer

$

$

Not available

27

Cub Cadet MA-MF430005

Nut

$

$

Not available

28

Cub Cadet MA-MF450405

Washer, Spring

$

$

Not available
