7305 (54A-447D100) - Cub Cadet Compact Tractor Main Moving Parts Dual Clutch 30HP Engine 7305 S/N 23070 & Up Parts Diagram

Compact Tractor

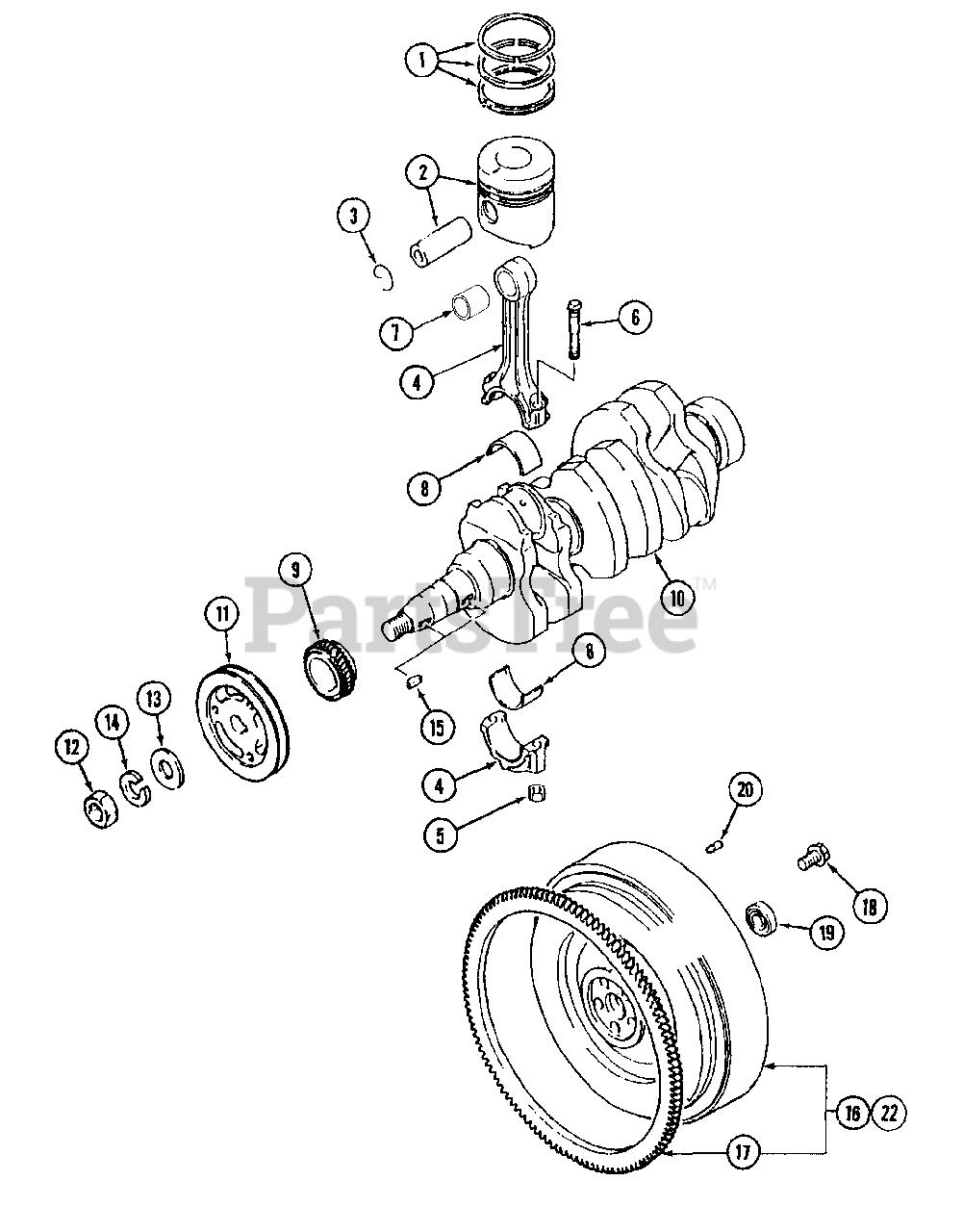

Main Moving Parts Dual Clutch 30HP Engine 7305 S/N 23070 & Up Parts Diagram

  • Title

1

Cub Cadet MA-MM434512

Ring Set, Piston

Note: STD

$213.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-MM435226

Ring Set, Piston

Note: 0.25 O. S.

$

$

Not available

Cub Cadet MA-MM435227

Ring Set, Piston

Note: 0.50 O. S.

$

$

Not available

Cub Cadet MA-MM435228

Ring Set, Piston

Note: 0.75 O. S.

$

$

Not available

2

Cub Cadet MA-MM436772

Piston & Pin Set

Note: STD

$

$

Not available

Cub Cadet MA-MM436773

Piston & Pin Set

Note: 0.25 O. S.

$

$

Not available

Cub Cadet MA-MM436774

Piston & Pin Set

Note: 0.50 O. S

$

$

Not available

Cub Cadet MA-MM436775

Piston & Pin Set

Note: 0.75 O. S.

$

$

Not available

3

Cub Cadet MA-MM300140

Clip, Piston Pin

$

$

Not available

4

Cub Cadet MA-MM43843202

Rod Ass'y., Connecting
(Superseded to MA-30H19-00030)

Note: Includes items 4-7

$296.99

$

Usually ships in 3-6 days

0

4

Connecting Rod & Cap

$

$

Not available

5

Cub Cadet MA-MD006704

Nut, Connecting Rod

$

$

Not available

6

Cub Cadet MA-MM412869

Bolt, Connection Rod

$

$

Not available

7

Bearing, Small End

$

$

Not available

8

Cub Cadet MA-MM438669

Bearing Set, Con. Rod
(Superseded to MA-30H19-05010)

Note: STD

$

$

Not available

Cub Cadet MA-MM438670

Bearing Set, Con. Rod
(Superseded to MA-30H19-05020)

Note: 0.25 U. S.

$44.99

$

In Stock, only 3 left!

0

Cub Cadet MA-MM438671

Bearing Set, Con. Rod
(Superseded to MA-30H19-05030)

Note: 0.50 U. S.

$

$

Not available

Cub Cadet MA-MM438672

Bearing Set, Con. Rod

Note: 0.75 U. S.

$

$

Not available

9

Cub Cadet MA-MM430859

Gear, Crankshaft

$

$

Not available

10

Cub Cadet MA-MM41288601

Crankshaft
(Superseded to MA-MM41288602)

$1367.99

$

Usually ships in 3-6 days

0

11

Cub Cadet MA-30A20-00500

Pulley, Crankshaft

$

$

Currently unavailable

12

Cub Cadet MA-MF430731

Nut, Jam

$

$

Not available

13

Cub Cadet MA-MF450011

Washer, Plain

$

$

Not available

14

Cub Cadet MA-MF450411

Washer, Spring

$

$

Not available

15

Cub Cadet MA-MF476215

Key, Woodruff

$

$

Not available

16

Cub Cadet MA-30H21-01061

Flywheel Ass'y

Note: Not used on this Model

$

$

Currently unavailable

17

Cub Cadet MA-MD040556

Gear, Ring

$

$

Not available

18

Cub Cadet MA-MD952231

Bolt, Drive Plate
(Superseded to MA-31A21-03800)

$

$

Not available

19

Cub Cadet MA-MD002613

Bearing, Ball
(Superseded to MA-07500560024)

$

$

Not available

20

Cub Cadet MA-MF472404

Pin, Dowel

Note: Not used on this Model

$

$

Not available

22

Cub Cadet MA-30H21-01051

Flywheel Ass'y.

$

$

Not available
