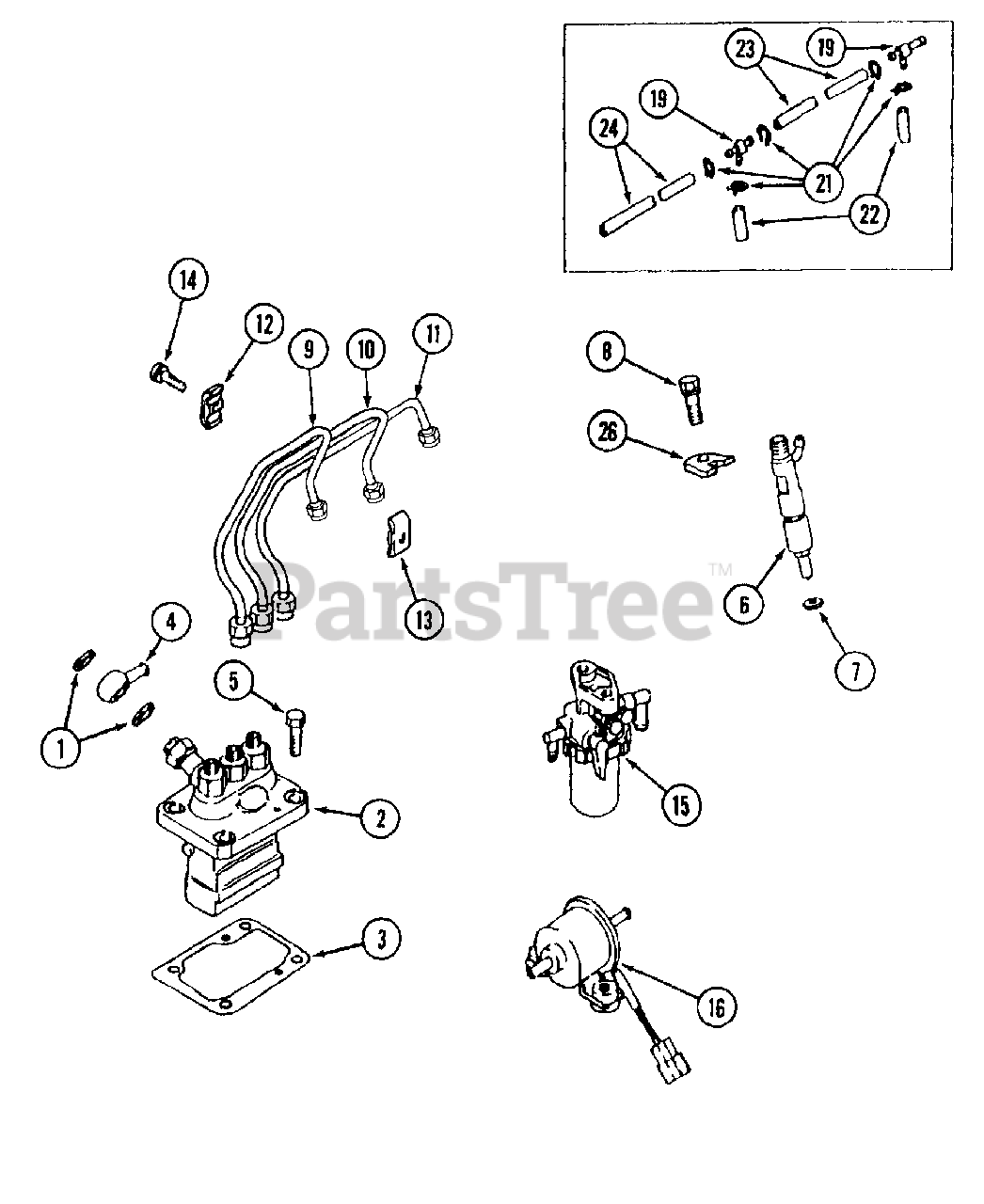

7305 (54A-447D100) - Cub Cadet Compact Tractor Fuel Supply Parts 30HP Engine 7305 S/N 23070 & Up Parts Diagram

Compact Tractor

Fuel Supply Parts 30HP Engine 7305 S/N 23070 & Up Parts Diagram

  • Title

1

MA-MK661-14000

Washer, Seal

$

$

Not available

2

Cub Cadet MA-30H65-05200

Pump Ass'y., Fuel Injection

$

$

Not available

3

Cub Cadet MA-MM409891

Shim Set, Adjusting

$

$

Not available

4

Cub Cadet MA-31A65-00100

Collar, Union

$

$

Not available

5

Cub Cadet MA-MF100055

Bolt
(Superseded to MA-F1035-08020)

$

$

Not available

6

Cub Cadet MA-MM438767

Nozzle & Holder Ass'y.

$

$

Not available

7

Cub Cadet MA-MM432045

Gasket, Nozzle

$6.99

$

In Stock, only 3 left!

0

8

Cub Cadet MA-MF241257

Bolt

$

$

Not available

9

Cub Cadet MA-30H61-00301

Pipe Ass'y., Fuel Injection No. 1

$

$

Not available

10

Cub Cadet MA-30H61-00401

Pipe Ass'y., Fuel Injection No. 2

$

$

Not available

11

Cub Cadet MA-30H61-00501

Pipe Ass'y., Fuel Injection No. 3

$

$

Not available

12

Cub Cadet MA-MM430703

Clamp (A)

$

$

Not available

13

Cub Cadet MA-MM430614

Clamp (B)

$

$

Not available

14

Cub Cadet MA-MF243628

Bolt, w/Washer

$

$

Not available

15

MA-30A6200100

Filter Ass'y., Fuel

$

$

Not available

16

Cub Cadet MA-MM436739

Pump Ass'y. Fuel
(Superseded to MA-31A60-00601)

$319.99

$

Usually ships in 3-6 days

0

19

Cub Cadet MA-30H61-00801

Pipe Ass'y.. Fuel Return

Note: Includes items 19-24

$

$

Not available

19

Cub Cadet MA-MM100088

Joint

$

$

Not available

21

Cub Cadet MA-MM100089

Clamp, Hose

$3.99

$

In Stock, Qty 5

0

22

Cub Cadet MA-MM413132

Pipe, Rubber

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet MA-MM413105

Pipe, Rubber

$

$

Not available

24

Cub Cadet MA-MM413108

Pipe, Rubber

$

$

Not available

26

Cub Cadet MA-MM43713701

Support, Nozzle

$

$

Not available
