7305 (54A-447D100) - Cub Cadet Compact Tractor Fuel Injection Pump 30HP Engine 7305 S/N 23070 & Up Parts Diagram

Compact Tractor

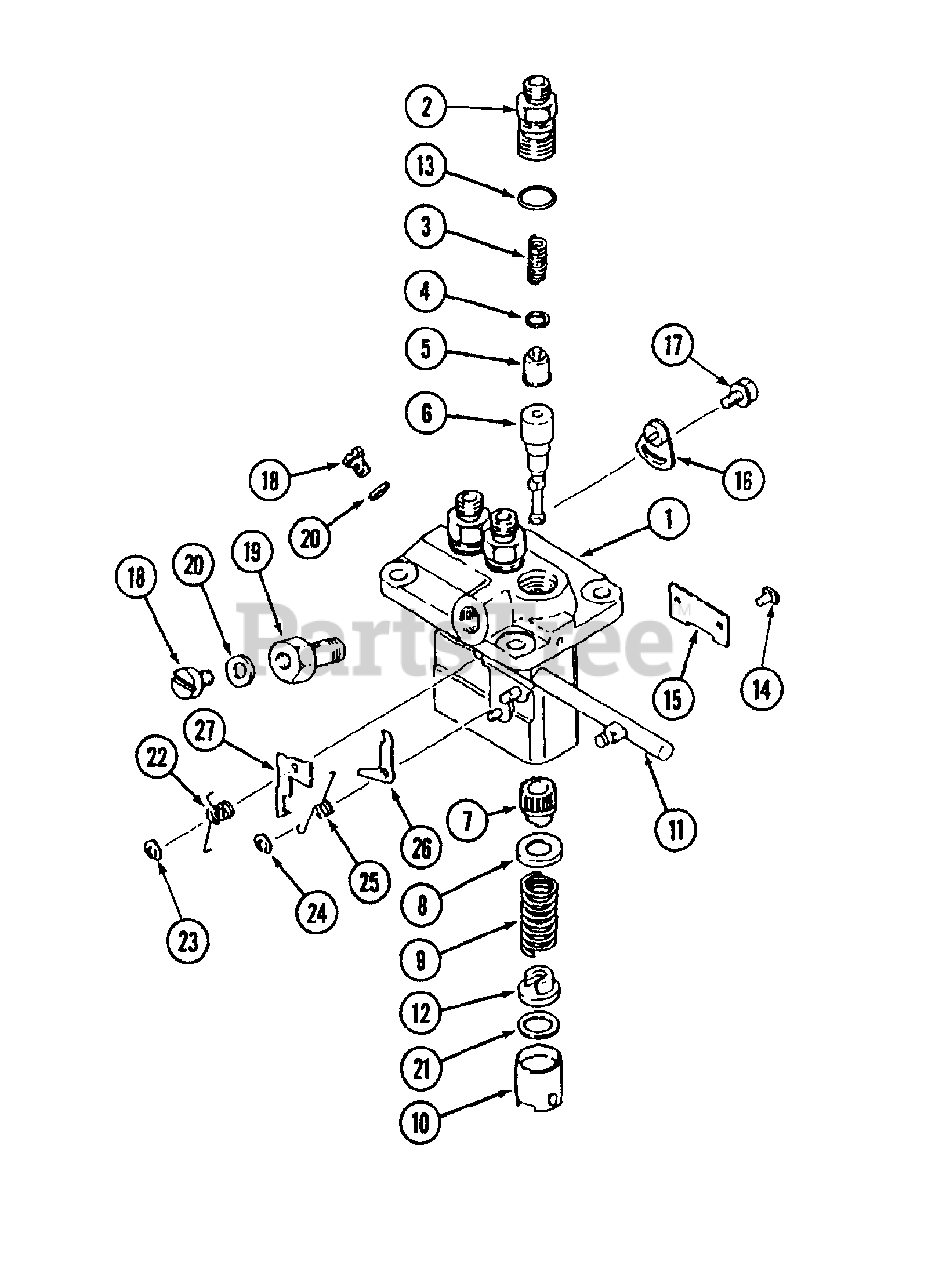

Fuel Injection Pump 30HP Engine 7305 S/N 23070 & Up Parts Diagram

  • Title

Cub Cadet MA-30H65-05200

Pump Ass'y., Fuel Injection

Note: Includes items 1-29

$

$

Not available

1

Cub Cadet MA-09011-02830

Housing Sub Ass'y., Pump

$

$

Not available

2

Cub Cadet MA-09013-10720

Holder, Delivery Valve

$

$

Not available

3

Cub Cadet MA-09013-60940

Spring, Delivery Valve

$

$

Not available

4

Cub Cadet MA-09013-70130

Gasket, Delivery Valve

$

$

Not available

5

Cub Cadet MA-09014-02730

Valve Sub Ass'y., Delivery

$

$

Not available

6

Cub Cadet MA-09015-06540

Element Sub Ass'y., Pump

$

$

Not available

7

Cub Cadet MA-09016-10210

Sleeve, Control

$32.99

$

In Stock, only 2 left!

0

8

Cub Cadet MA-09016-30082

Seat, Spring Upper

$

$

Not available

9

Cub Cadet MA-09016-40170

Spring, Pump Plunger

$

$

Not available

10

Cub Cadet MA-09017-00170

Tappet Ass'y.

$

$

Not available

11

Cub Cadet MA-09021-00470

Pack Ass'y., Control

$

$

Not available

12

Cub Cadet MA-09030-10060

Seat, Spring Lower

$

$

Not available

$

$

Not available

14

Cub Cadet MA-09018-30050

Pin, Tappet Guide

$

$

Not available

$25.99

$

Usually ships in 3-6 days

0

16

Cub Cadet MA-09006-80020

Plate, Adjusting

$

$

Not available

17

Cub Cadet MA-94904-80800

Bolt, Washer Head

$

$

Not available

18

Cub Cadet MA-09024-40180

Screw, Air Bleeder

$

$

Not available

19

Cub Cadet MA-94918-00510

Screw, Hollow

$

$

Currently unavailable

20

Cub Cadet MA-94901-81020

Washer, Pipe Union

$

$

Not available

21

Cub Cadet MA-MM500299

Shim, Plate Tappet
(Superseded to MA-09031-10010)

Note: t=0.6

$

$

Not available

Cub Cadet MA-MM500309

Shim, Plate Tappet

Note: t=0.2

$

$

Not available

Cub Cadet MA-MM500310

Shim, Plate Tappet

Note: t=0.3

$

$

Not available

Cub Cadet MA-MM500311

Shim, Plate Tappet

Note: t=0.4

$

$

Not available

Cub Cadet MA-MM500312

Shim, Plate Tappet

Note: t=0.5

$

$

Not available

Cub Cadet MA-MM500314

Shim, Plate Tappet

Note: t=0.25

$

$

Not available

Cub Cadet MA-MM500315

Shim, Plate Tappet

Note: t=0.35

$

$

Not available

Cub Cadet MA-MM501246

Shim, Plate Tappet

Note: t=0.45

$

$

Not available

Cub Cadet MA-MM501364

Shim, Plate Tappet

Note: t=0.55

$

$

Not available

Cub Cadet MA-MM501365

Shim, Plate Tappet

Note: t=0.65

$

$

Not available

22

Cub Cadet MA-09055-40390

Spring, Smoke Set

$

$

Not available

$

$

Not available

$

$

Not available

25

Cub Cadet MA-09055-40470

Spring, Angleich Set

$

$

Not available

26

Cub Cadet MA-MM501497

Plate, Angleich Set

Note: Mark 6

$

$

Not available

Cub Cadet MA-MM501498

Plate, Angleich Set

Note: Mark 7

$

$

Not available

Cub Cadet MA-MM501499

Plate, Angleich Set

Note: Mark 8

$

$

Not available

Cub Cadet MA-MM501500

Plate, Angleich Set

Note: Mark 9

$

$

Not available

Cub Cadet MA-MM501501

Plate, Angleich Set

Note: Mark 10

$

$

Not available

Cub Cadet MA-MM501747

Plate, Angleich Set

Note: Mark 11

$

$

Not available

Cub Cadet MA-MM501748

Plate, Angleich Set

Note: Mark 12

$

$

Not available

27

Cub Cadet MA-MM501567

Plate, Smoke Set

Note: Mark 62

$

$

Not available

Cub Cadet MA-MM501268

Plate, Smoke Set

Note: Mark 63

$

$

Not available

Cub Cadet MA-MM501568

Plate, Smoke Set

Note: Mark 64

$

$

Not available

Cub Cadet MA-MM501269

Plate, Smoke Set

Note: Mark 65

$

$

Not available

Cub Cadet MA-MM501569

Plate, Smoke Set

Note: Mark 66

$

$

Not available

Cub Cadet MA-MM501270

Plate, Smoke Set

Note: Mark 67

$

$

Not available

Cub Cadet MA-MM501570

Plate, Smoke Set

Note: Mark 68

$

$

Not available

Cub Cadet MA-MM501271

Plate, Smoke Set

Note: Mark 69

$

$

Not available

Cub Cadet MA-MM501571

Plate, Smoke Set

Note: Mark 70

$

$

Not available

Cub Cadet MA-MM501272

Plate, Smoke Set

Note: Mark 71

$

$

Not available

Cub Cadet MA-MM501572

Plate, Smoke Set

Note: Mark 72

$

$

Not available

Cub Cadet MA-MM501273

Plate, Smoke Set

Note: Mark 73

$

$

Not available

Cub Cadet MA-MM501573

Plate, Smoke Set

Note: Mark 74

$

$

Not available

Cub Cadet MA-MM501274

Plate, Smoke Set

Note: Mark 75

$

$

Not available

Cub Cadet MA-MM501574

Plate, Smoke Set

Note: Mark 76

$

$

Not available
