7305 (54A-447D100) - Cub Cadet Compact Tractor Electrical Equipment 30HP Engine 7305 S/N 23070 & Up Parts Diagram

Compact Tractor

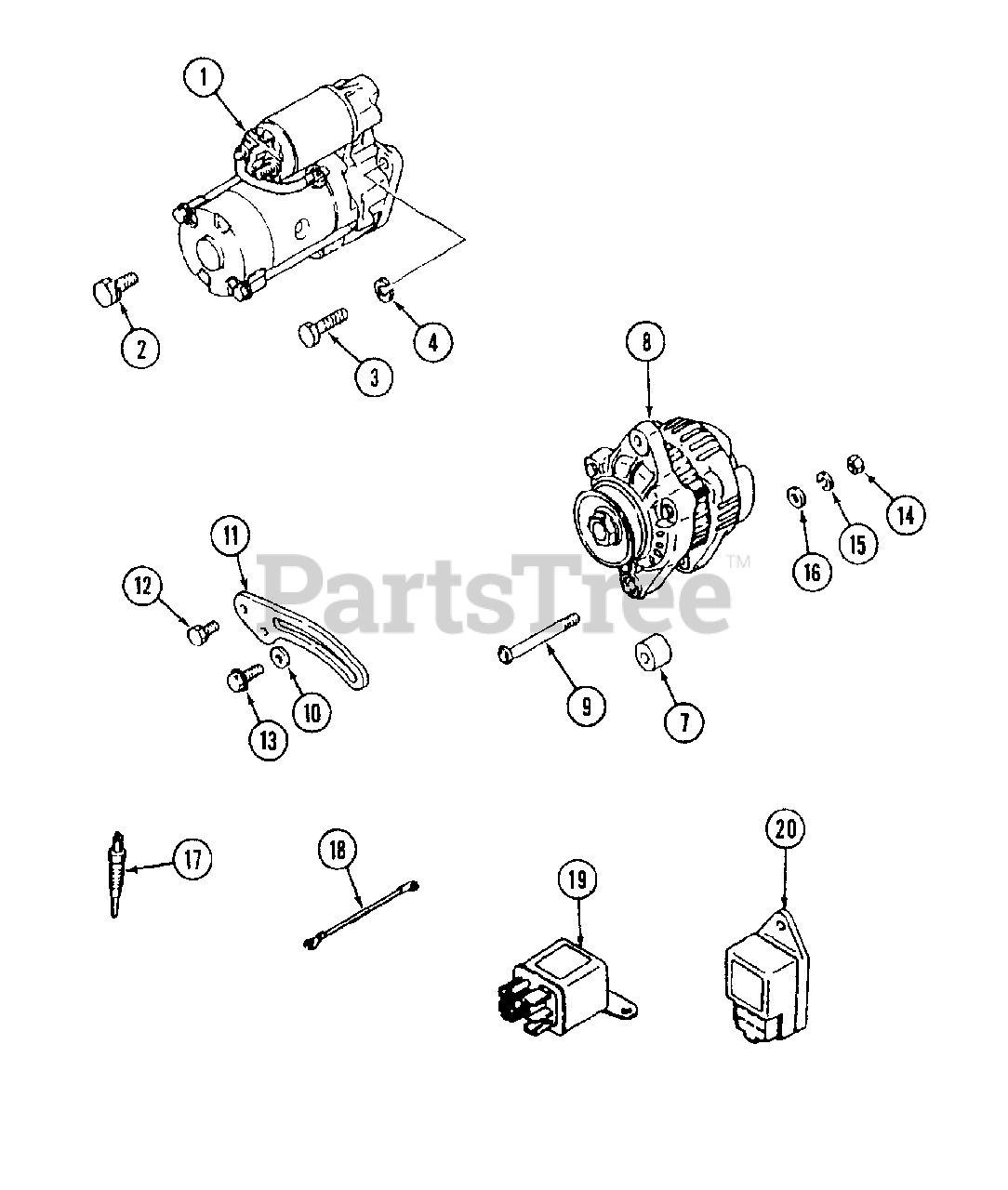

Electrical Equipment 30HP Engine 7305 S/N 23070 & Up Parts Diagram

  • Title
1

Cub Cadet MA-MM409412

Starter Ass'y.

$

$

Not available

2

Cub Cadet MA-MF241282

Bolt, w/Washer

$

$

Not available

3

Cub Cadet MA-MM409427

Bolt, Starter

$

$

Not available

4

Cub Cadet MA-MF450406

Washer, Lock
(Superseded to MA-A3600101002)

$

$

Not available

$

$

Not available

8

Cub Cadet MA-30A68-00801

Alternator Ass'y.

$

$

Not available

9

Cub Cadet MA-MD001515

Bolt, Special

$

$

Not available

10

Cub Cadet MA-MD001521

Washer, Plain

$

$

Not available

11

Cub Cadet MA-MM413829

Brace, Generator

$

$

Not available

12

Cub Cadet MA-MF241251

Bolt, w/Washer

$

$

Not available

13

Cub Cadet MA-MF140026

Bolt, Flange

$

$

Not available

$

$

Not available

15

Cub Cadet MA-MF450405

Washer, Spring

$

$

Not available

16

Cub Cadet MA-MS450035

Washer, Plain

$

$

Not available

17

Cub Cadet MA-MM431439

Plug, Glow
(Superseded to MA-30H66-06100)

$88.99

$

In Stock, only 2 left!

0

18

Cub Cadet MA-MM432739

Wire, Glow Plug Lead

$

$

Not available

19

Cub Cadet MA-MM43128201

Relay, Glow
(Superseded to MA-MM43128202)

$138.99

$

In Stock, only 1 left!

0

20

Cub Cadet MA-MM436811

Timer, Glow

$147.99

$

Usually ships in 3-6 days

0
