7305 (54A-447D100) - Cub Cadet Compact Tractor Alternator 30HP Engine 7305 S/N 23070 & Up Parts Diagram

Compact Tractor

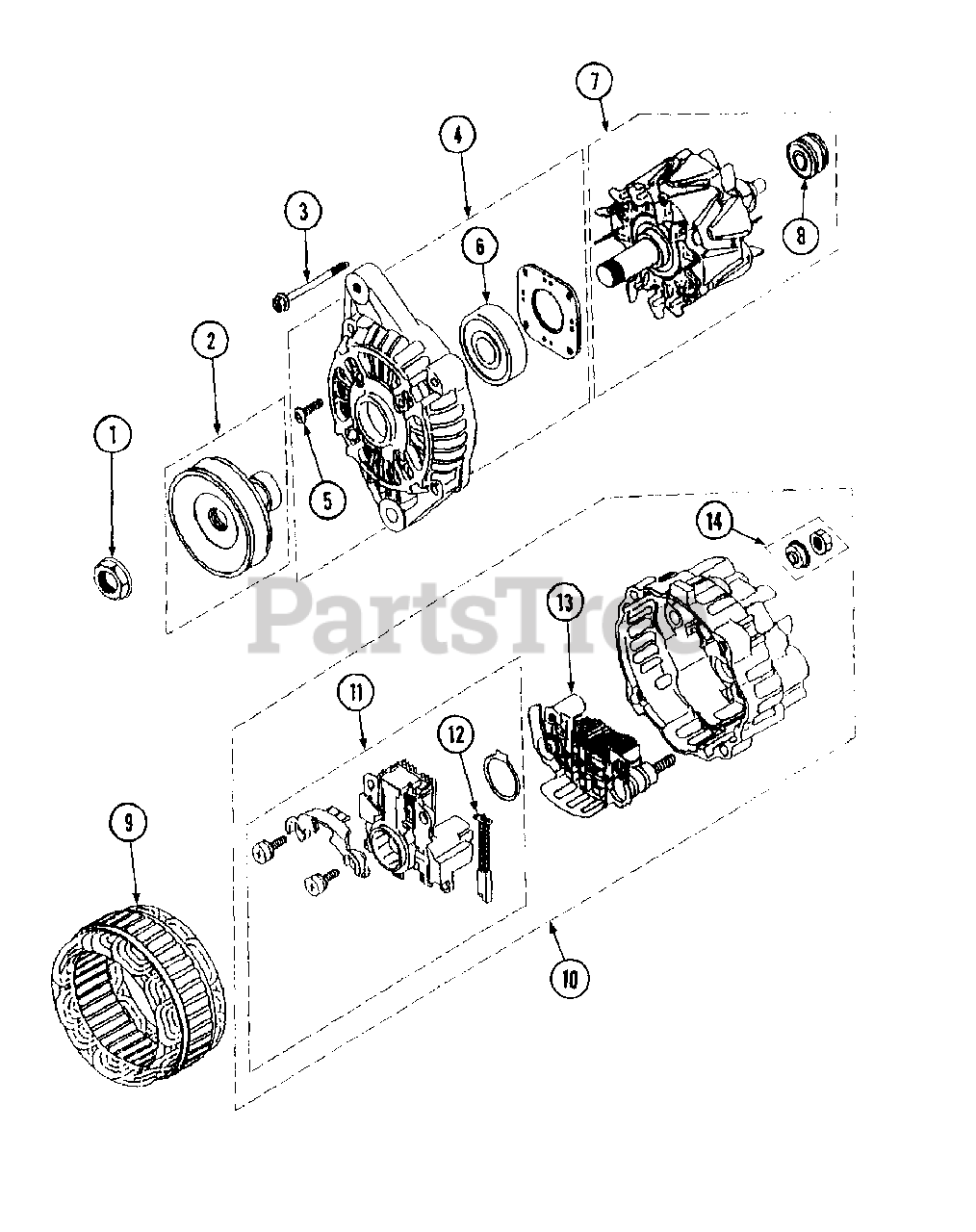

Alternator 30HP Engine 7305 S/N 23070 & Up Parts Diagram

  • Title

Cub Cadet MA-30A68-00801

Alternator Ass'y.

Note: Includes items 1-14

$

$

Not available

$

$

Not available

2

Cub Cadet MA-MM502578

Pulley Ass'y.

$

$

Not available

3

Cub Cadet MA-MM502566

Bolt Set
(Superseded to MA-MD611556)

$

$

Not available

4

Cub Cadet MA-47X11-02295

Bracket Ass'y., Front

$

$

Not available

5

$

$

Currently unavailable

6

Cub Cadet MA-47X11-02296

Bearing, Front

$

$

Not available

7

$

$

Not available

8

Cub Cadet MA-MM502571

Bearing, Rear
(Superseded to MA-MD611928)

$

$

Not available

9

Cub Cadet MA-MM502591

Stator Ass'y.

$

$

Not available

10

Cub Cadet MA-MM502598

Bracket Ass'y., Rear

$

$

Not available

11

Cub Cadet MA-47X11-02304

Regulator Set

$

$

Not available

12

Cub Cadet MA-MM502577

Brush
(Superseded to MA-A647X50170)

$

$

Not available

13

Cub Cadet MA-MM502599

Rectifier Ass'y.

$

$

Not available

14

Cub Cadet MA-MM502588

Nut Set
(Superseded to MA-A529X05571)

$

$

Not available
