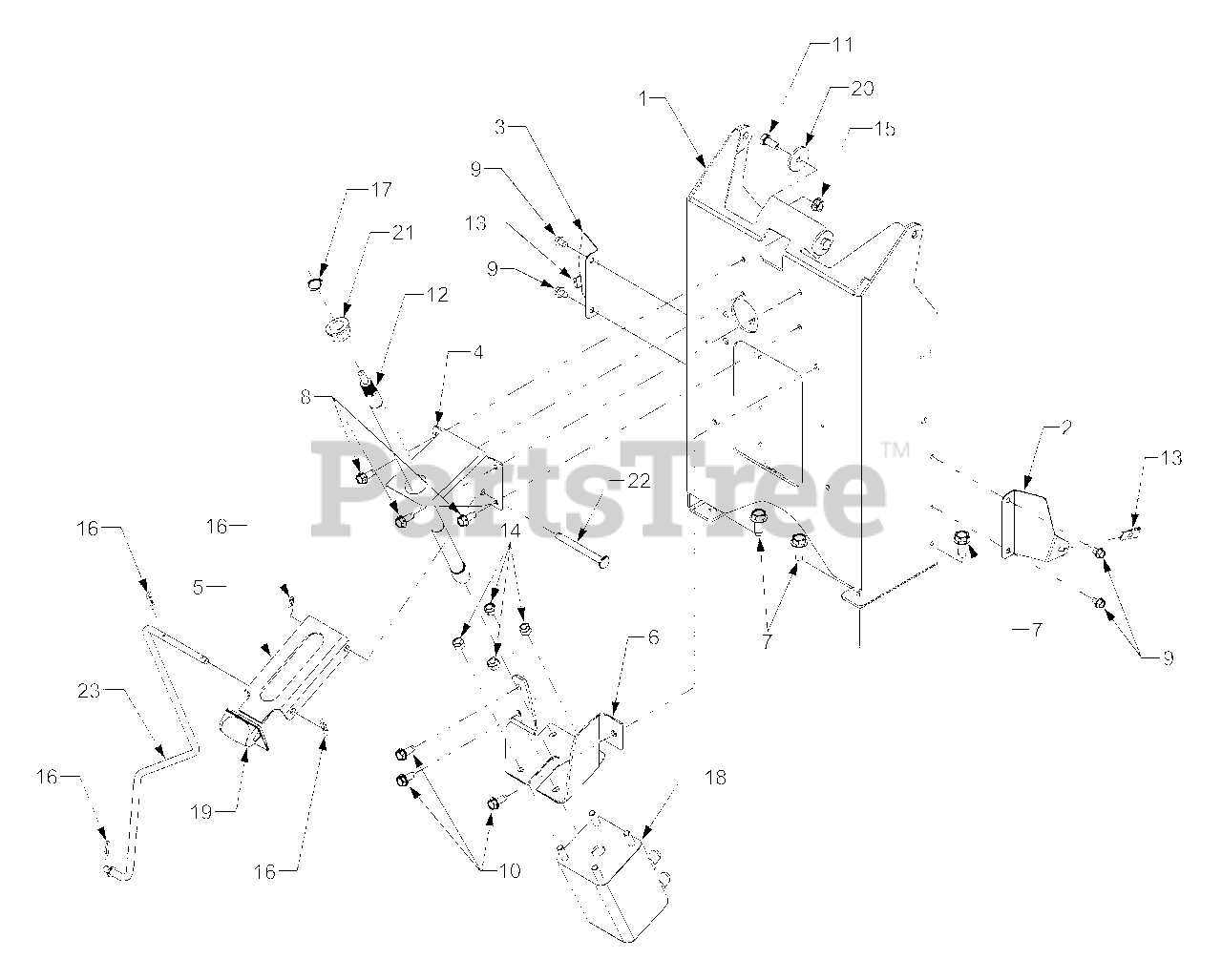

7304 (54BT741-100) - Cub Cadet Compact Tractor Pedestal Parts Diagram

Compact Tractor

Pedestal Parts Diagram

  • Title

1

Cub Cadet 703-3383A

Pedestal
(Superseded to 703-3383D-0637)

$

$

Not available

2

Cub Cadet 703-3717

Bracket, Dash Mtg. RH

$

$

Not available

3

Cub Cadet 703-3721

Bracket, Dash Mtg. LH

$

$

Not available

4

Cub Cadet 703-3725

Bracket, Steering Column

$

$

Not available

5

Cub Cadet 703-3895

Bracket, Brake Lever

$

$

Not available

6

Cub Cadet 703-4064

Bracket, Pump Mtg

$

$

Not available

7

Cub Cadet 710-0623

Screw, Hex Wash, Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0642

Screw, Hex Wash, Hd Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0653

Screw, Hex Wash, Hd Tapp 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

10

Cub Cadet 710-1260A

Screw, Hex Wash, Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 711-1361

Shaft, Steering

$

$

Not available

13

Cub Cadet 712-0292

Nut, Speed, 1/4-20

$10.99

$

In Stock, only 2 left!

0

14

Cub Cadet 712-0411

Nut, Hex Nylon Insert Lock, 5/16-24 GR8

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 716-0101

Ring, Snap, .75 ID

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 718-3129

Pump, Hydraulic Steering

$

$

Not available

19

Cub Cadet 731-3359

Lever, Parking Brake

$

$

Not available

20

Cub Cadet 736-0343

Washer, Flat, .33 x 1.25 x .12

$4.49

$

In Stock, Qty 7

0

21

Cub Cadet 741-0245

Bearing, Hex Flange, .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

22

Cub Cadet 747-3454

Pin, Parking Brake Pivot

$

$

Not available

23

Cub Cadet 747-3543A

Rod, Parking Brake

$

$

Not available
