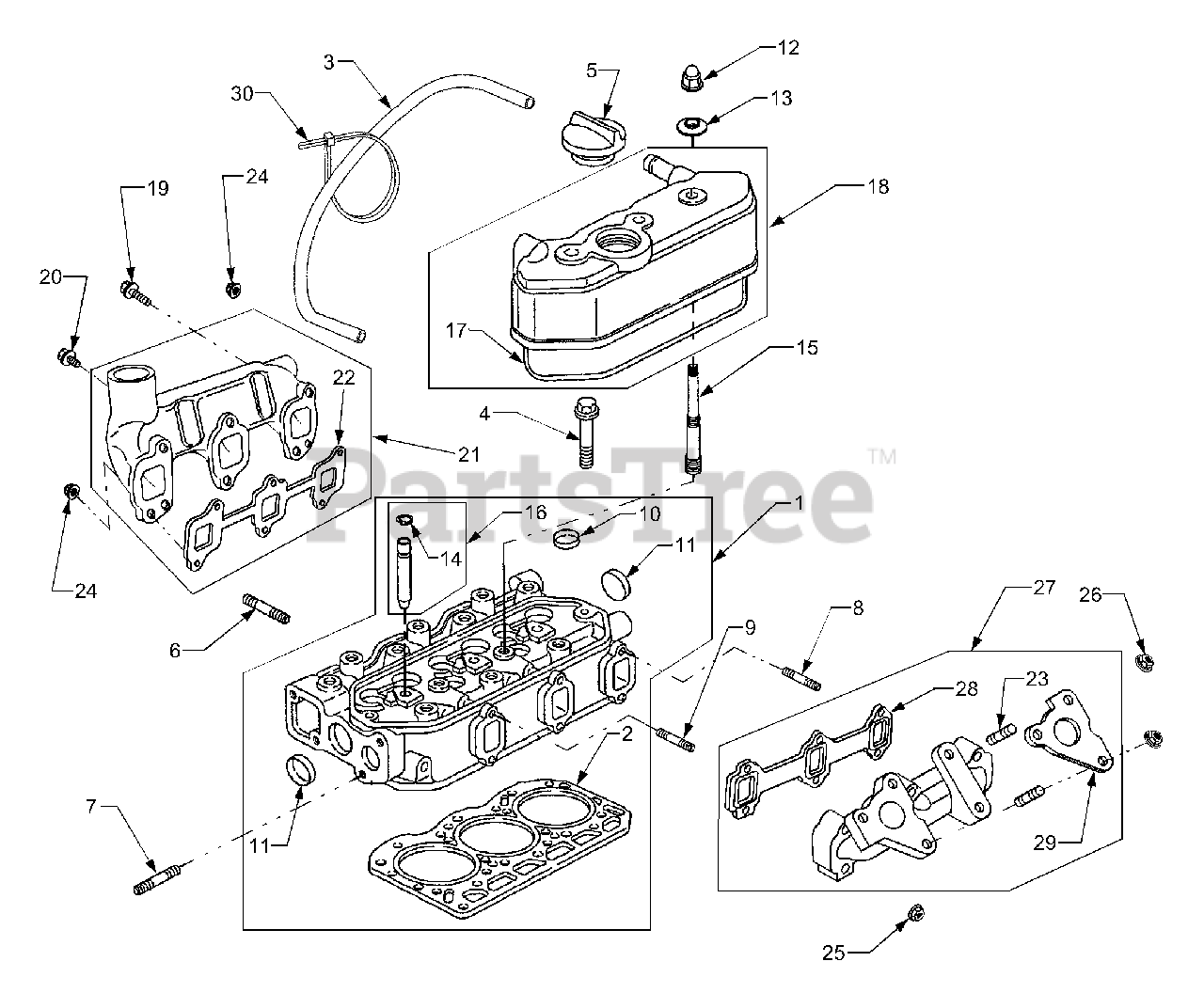

7304 (54AT741-100) - Cub Cadet Compact Tractor Cylinder Head And Manifolds Parts Diagram

Compact Tractor

Cylinder Head And Manifolds Parts Diagram

  • Title
1

Cub Cadet BS-825516

Head, Cylinder

$

$

Not available

2

Cub Cadet BS-820930

Gasket, Cylinder Head
(Superseded to BS-821270)

$202.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-820932

Tube, Breather

$22.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-820934

Screw, Metric

$10.99

$

In Stock, Qty 5

0

5

Cub Cadet BS-825024

Cap, Oil Fill

$25.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-820015

Stud, Metric

$5.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-820078

Stud, Metric

$6.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-820997

Stud, Metric

$14.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-820999

Stud, Metric

$13.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-820004

Plug, Welch

$7.49

$

In Stock, only 2 left!

0

11

Cub Cadet BS-820005

Plug, Welch

$6.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-820071

Nut, Hex Metric

$3.99

$

In Stock, only 3 left!

0

13

Cub Cadet BS-820064

Washer, Sealing

$7.99

$

In Stock, only 2 left!

0

14

Cub Cadet BS-820130

Ring, Retainer

$11.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-820076

Stud, Rocker Arm

$12.99

$

In Stock, only 3 left!

0

16

Cub Cadet BS-825030

Bushing, Guide

$100.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-820150

Gasket, Rocker Cover

$37.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-825088

Cover, Rocker

$

$

Not available

19

Cub Cadet BS-820031

Screw, Hex, 6mm

$3.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-820408

Screw, Hex, 6mm

$3.49

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-825175

Manifold, Intake

$201.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-820407

Gasket, Intake Manifold

$21.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-820553

Stud, Exhaust Manifold

$13.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-820069

Nut, Hex Metric

$3.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-820010

Nut, Hex Metric

$4.49

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-820178

Nut, Hex Metric

$3.99

$

In Stock, Qty 6

0

27

Cub Cadet BS-825531

Manifold, Exhaust

$372.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-820817

Gasket, Exhaust Manifold

$37.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-820967

Gasket, Muffler

$10.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-280275

Tie, Cable

$4.49

$

Usually ships in 2-12 days

0
