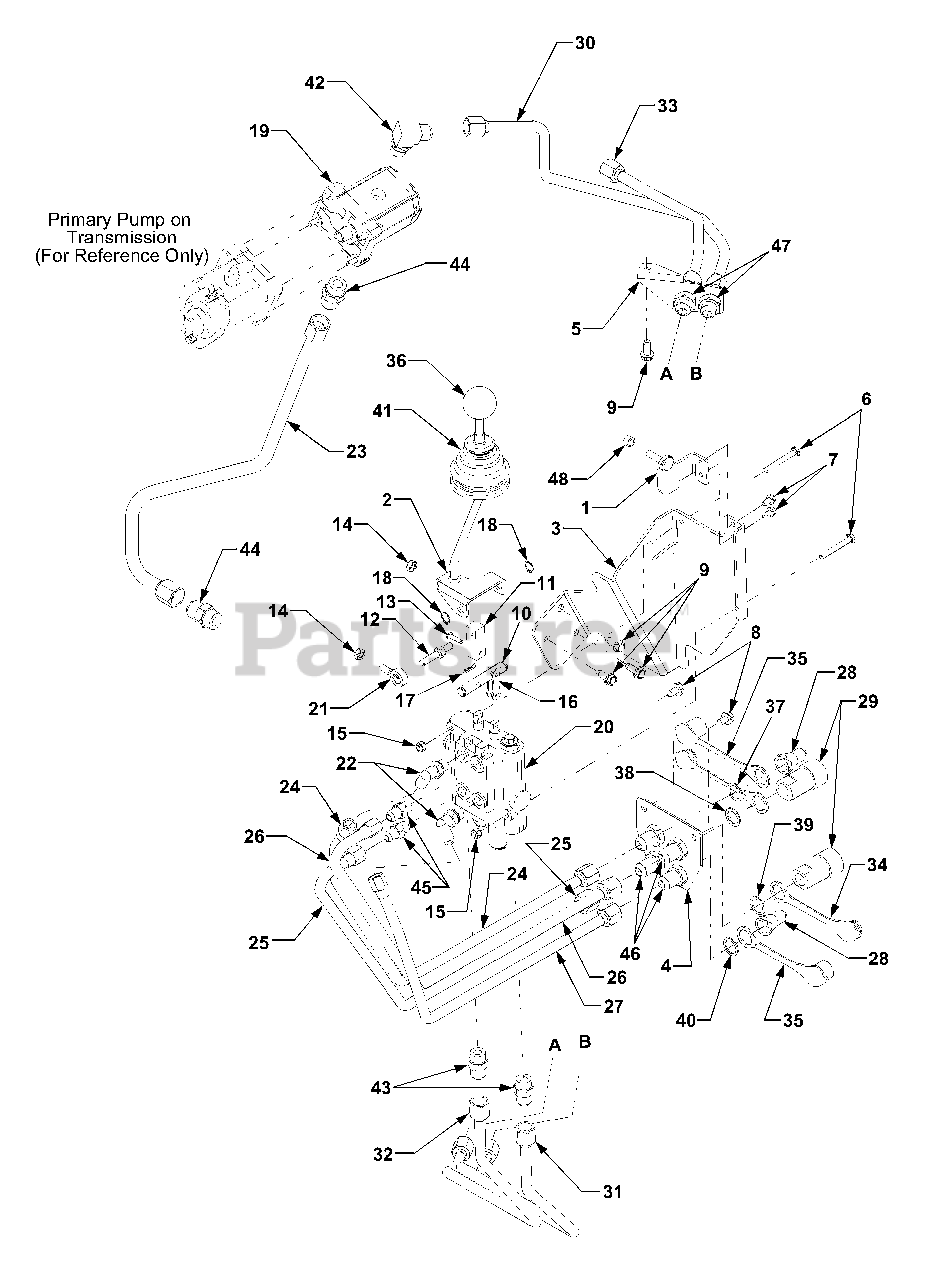

7304 (54AT741-100) - Cub Cadet Compact Tractor Auxiliary Hydraulic Loader Valve Parts Diagram

Compact Tractor

Auxiliary Hydraulic Loader Valve Parts Diagram

  • Title

1

Cub Cadet 603-0813

Pivot Bracket Assembly
(Superseded to 603-0813A)

$41.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0862

Valve Handle Assembly

$

$

Not available

3

Cub Cadet 703-3598-0637

Loader Valve Mount Bracket

$

$

Not available

4

Cub Cadet 703-3972-0637

Fitting Mount Plate

$

$

Not available

5

Cub Cadet 703-3973-0637

Rear Fitting Mount Plate

$

$

Not available

6

Cub Cadet 710-0501

Hex Screw, 1/4-20, 2.00, Gr5

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

Hex Wash. Hd. Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0604A

Hex Wash. Hd. Tapp Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1260A

Hex Wash. Hd. Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-1611

Valve Pivot Shaft

$61.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-1624

Valve Spool Link
(Superseded to 711-1624A)

$

$

Not available

12

Cub Cadet 711-1637

Ball Joint Pivot Stud

$33.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-1642

Clevis Pin, .199 x .8125

$

$

Not available

14

Cub Cadet 712-0256

Jam Nut, 5/16-24, Gr2

$

$

Not available

15

Cub Cadet 712-0324

Hex Lock Nut, 1/4-20, Gr8, Nylon

$3.99

$

In Stock, Qty 16

0

16

Cub Cadet 713-3000

Chain Link
(Superseded to 913-3000)

$

$

Not available

17

Cub Cadet 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 716-0865

Snap Ring, .5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 718-3138

Auxiliary Hydraulic Pump
(Superseded to 918-3138)

$788.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3964

Pin, Dowel

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3965

Bolt, Mounting

$

$

Not available

Cub Cadet 759-3966

Coupler, Splined

$

$

Not available

20

Cub Cadet 718-3140

Loader Control Valve

$1039.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 723-0488

Ball Joint, .3125 Id x 5/16-24
(Superseded to WM-489089)

$

$

Not available

22

Cub Cadet 727-3012

Fitting, 90° 6-6 Orb

$26.99

$

In Stock, only 4 left!

0

23

Cub Cadet 727-3206

Tube, Tandum Pump Suction

$

$

Not available

24

Cub Cadet 727-3210

Tube, Hydraulic - Bucket Rollback

$

$

Not available

25

Cub Cadet 727-3211

Tube, Hydraulic - Bucket Dump

$

$

Not available

26

Cub Cadet 727-3212

Tube, Hydraulic - Boom Lift

$

$

Not available

27

Cub Cadet 727-3213

Tube, Hydraulic - Boom Lower

$

$

Not available

28

Cub Cadet 727-3224

Coupling, Male Hydraulic, 3/8-18

$118.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 727-3225

Coupling, Female Hydr. 3/8-18

$89.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 727-3226

Tube, Auxiliary Pump Pressure

$

$

Not available

31

Cub Cadet 727-3227

Tube, Valve Pressure

$

$

Not available

32

Cub Cadet 727-3228

Tube, Valve Return

$68.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 727-3229

Tube, Valve Return

$

$

Not available

34

Cub Cadet 727-3261

Plug, Hydraulic Coupler - Male

$

$

Not available

35

Cub Cadet 727-3262

Plug, Hydraulic Coupler - Female

$

$

Not available

36

Cub Cadet 731-3353

Knob, 1.625 Dia x 3/8-16 Thd

$

$

Not available

37

Cub Cadet 731-3374

Washer, Indicator - Red

$11.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-3375

Washer, Indicator - Yellow

$

$

Not available

39

Cub Cadet 731-3376

Washer, Indicator - Green

$

$

Not available

40

Cub Cadet 731-3377

Washer, Indicator - Blue

$

$

Not available

41

Cub Cadet 735-0696

Joystick Boot

$

$

Not available

42

Cub Cadet 737-3111

Fitting, 90° -8 Orb

$

$

Not available

43

Cub Cadet 737-3112

Fitting, Straight -8 Orb

$

$

Not available

44

Cub Cadet 737-3113

Fitting, Straight

$

$

Not available

45

Cub Cadet 737-3125

Fitting, Straight - 6 Orb

$

$

Not available

46

Cub Cadet 737-3129

Fitting, Bulkhead 3/4-16 x 3/8-18

$

$

Not available

47

Cub Cadet 737-3130

Fitting, Bulkhead 3/4-16 x 3/4-16

$

$

Not available

48

Cub Cadet 750-0845

Spacer, .34 ID x .5 OD x .31
(Superseded to 750-0808)

$

$

Not available
