7304 (54AD741-100) - Cub Cadet Compact Tractor Turbo Charger Parts Diagram

Compact Tractor

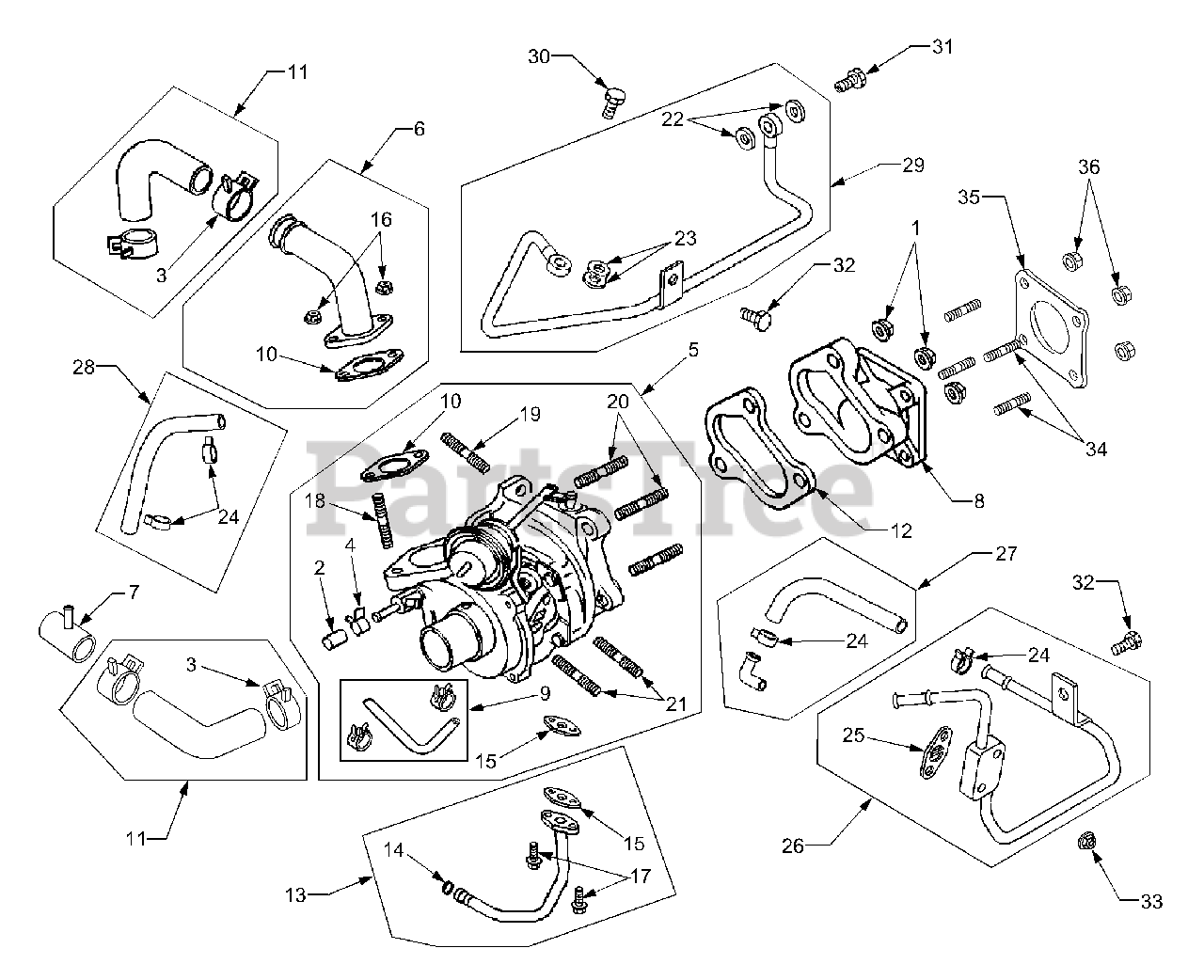

Turbo Charger Parts Diagram

  • Title
1

$6.99

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-820944

Clamp, Hose

$3.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-820993

Clamp, Hose

$4.49

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-825533

Charger, Turbo

$2265.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-825536

Pipe, Air Inlet

$145.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-820942

Adapter, Air Cleaner

$112.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-825537

Adapter, Muffler

$291.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-825542

Hose, Vacuum

$

$

Currently unavailable

10

Cub Cadet BS-820988

Gasket, Air Inlet Pipe

$9.49

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-825543

Hose/Clamp Assembly

$35.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-820990

Gasket, Muffler Adapter

$12.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-825535

Pipe, Oil Outlet

$119.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-820975

Seal, O Ring (Oil Outler Pipe)

$7.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-820973

Gasket, Oil Outlet

$32.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-820181

Nut, Hex (Air Inlet Pipe)

$3.49

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-820971

Screw (Oil Outlet Pipe)

$3.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-820981

Stud, Turbo Charger

$4.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-820553

Stud, Turbo Charger

$13.99

$

In Stock, only 1 left!

0

20

Cub Cadet BS-820983

Stud, Turbo Charger

$14.99

$

In Stock, only 1 left!

0

21

Cub Cadet BS-820985

Stud, Turbo Charger

$5.99

$

In Stock, only 1 left!

0

22

Cub Cadet BS-820950

Washer, Sealing (Oil Inlet Pipe)

$8.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-820952

Washer, Sealing (Oil Inlet Pipe)

$8.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-820960

Clamp, Hose

$3.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-820962

Gasket, Water Pipe

$7.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-825558

Pipe, Water

$251.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-825540

Line, Water

$40.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-825541

Line, Water

$22.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-825539

Pipe, Oil Inlet

$242.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-820954

Screw (Oil Inlet Pipe)

$6.49

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-820948

Screw (Oil Inlet Pipe)

$23.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-820069

Nut, Hex (Water Pipe)

$3.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-820553

Stud, Muffler

$13.99

$

In Stock, only 1 left!

0

35

Cub Cadet BS-821001

Gasket, Muffler

$37.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-820178

Nut, Hex (Muffler)

$3.99

$

In Stock, Qty 6

0
