7304 (54AD741-100) - Cub Cadet Compact Tractor Gasket Sets Parts Diagram

Compact Tractor

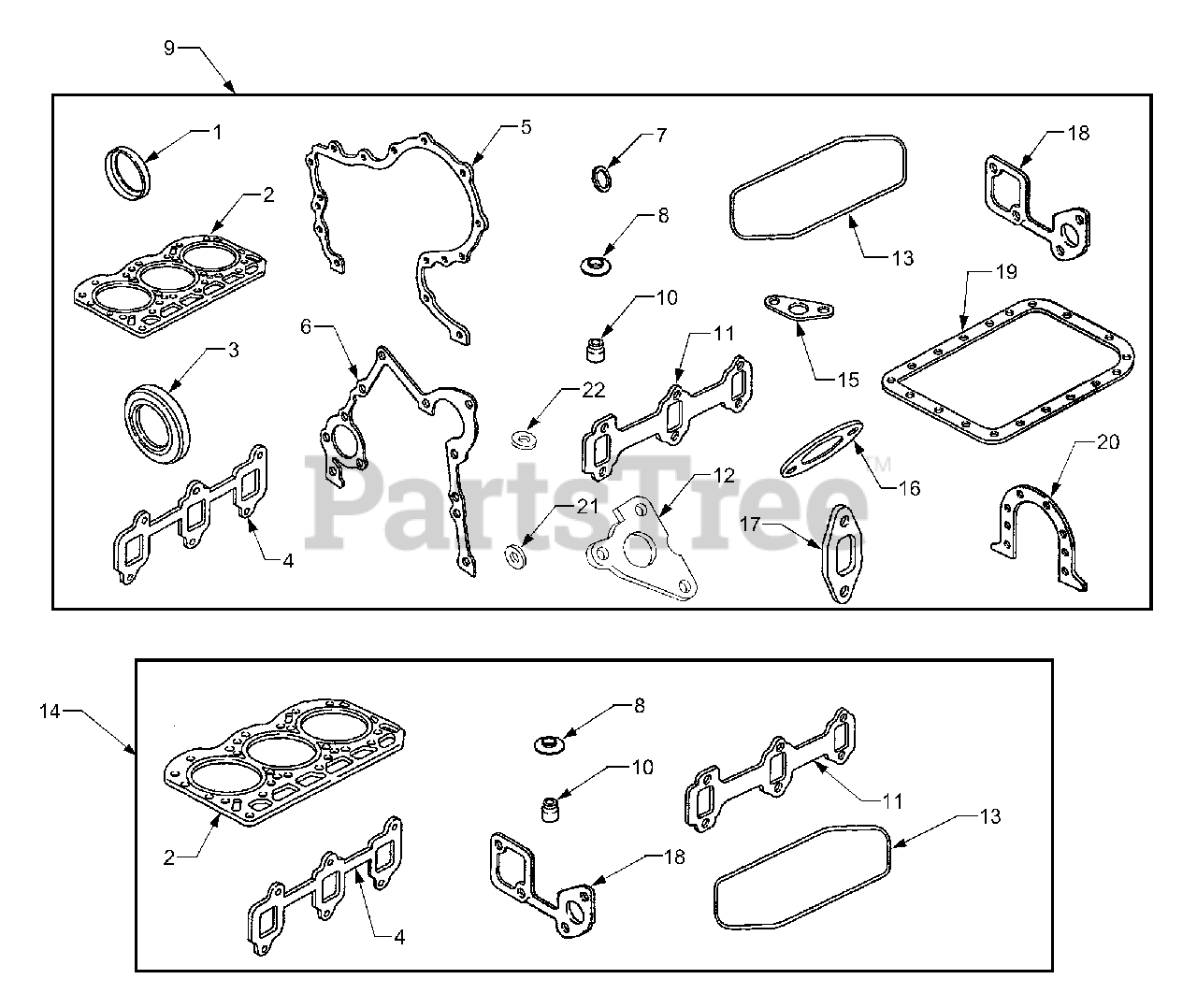

Gasket Sets Parts Diagram

  • Title
1

Cub Cadet BS-820056

Seal, Oil
(Superseded to BS-821328)

$73.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-820930

Gasket, Cylinder Head
(Superseded to BS-821270)

$202.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-820055

Seal, Oil
(Superseded to BS-821071)

$73.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-820407

Gasket, Intake

$21.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-820377

Gasket, Gear Cover

$31.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-820155

Gasket, Gear Cover

$31.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-820582

Washer, Sealing

$7.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-820064

Washer, Sealing

$7.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-825527

Gasket Set

$584.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-820405

Seal, Valve

$12.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-820817

Gasket, Exhaust

$37.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-820967

Gasket, Exhaust

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-820150

Gasket, Rocker Cover

$37.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-825528

Kit, Valve Overhaul

$255.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-820104

Gasket, Oil Pump Screen

$7.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-820093

Gasket, Outlet

$11.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-820098

Gasket, Inlet Housing

$6.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-820100

Gasket, Water Pump

$12.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-820137

Gasket, Oil Pan

$43.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-820145

Gasket, Retainer

$11.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-820950

Washer, Sealing (Oil Inlet Pipe)

$8.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-820952

Washer, Sealing (Oil Inlet Pipe)

$8.99

$

Usually ships in 2-12 days

0
