7304 (54AD741-100) - Cub Cadet Compact Tractor Fuel Injection System Parts Diagram

Compact Tractor

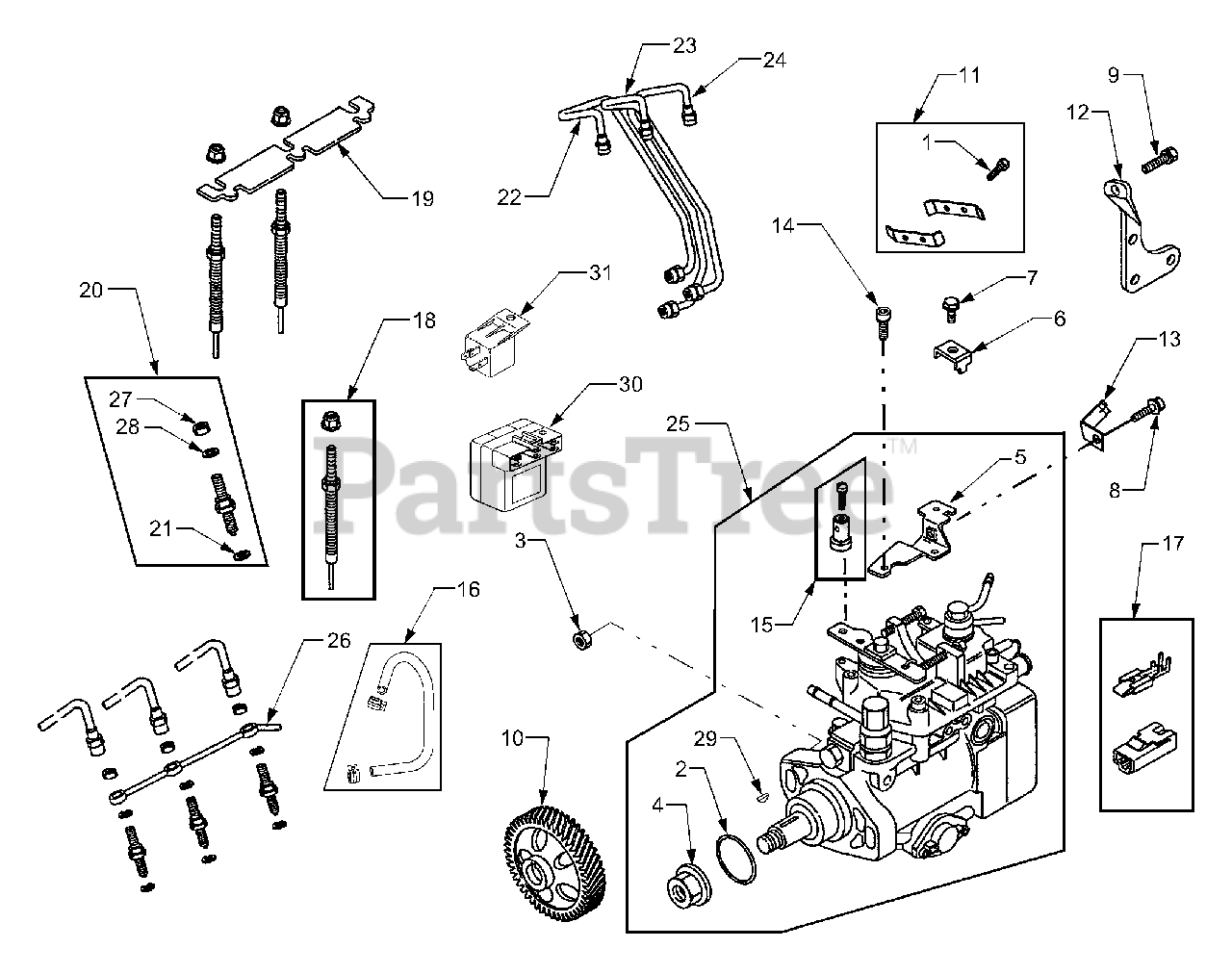

Fuel Injection System Parts Diagram

  • Title
1

Cub Cadet BS-820031

Screw, Hex, 6mm

$3.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-820414

Seal, O-Ring

$

$

Not available

3

Cub Cadet BS-820417

Nut, Hex Metric

$2.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-820419

Nut, Hex Metric

$4.49

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-820634

Bracket, Casing Clamp

$209.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-691024

Clamp, Casing

$3.99

$

In Stock, Qty 7

0

7

Cub Cadet BS-820012

Screw, Casing Clamp

$3.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-820593

Screw, Support Bracket

$3.49

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-820272

Screw, Support Bracket

$3.49

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-820619

Gear, Drive

$148.99

$

Usually ships in 2-12 days

0

$18.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-820415

Bracket, Support

$25.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-820479

Bracket, Support

$21.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-820640

Screw, Casing Clamp Bracket

$6.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-820467

Clamp, Swivel

$13.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-825179

Hose/Clamp Ass'y., Fuel Return

$

$

Not available

17

Cub Cadet BS-825266

Connector, Injection Pump

$5.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-825176

Plug, Glow
(Superseded to BS-821308)

$118.99

$

In Stock, only 1 left!

0

19

Cub Cadet BS-820409

Strap, Glow Plug

$27.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-825178

Nozzle, Injector

$385.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-820411

Seat, Injector

$9.99

$

In Stock, only 3 left!

0

22

Cub Cadet BS-825194

Pipe, Injector #1

$64.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-825195

Pipe, Injector #2

$66.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-825196

Pipe, Injector #3

$64.99

$

In Stock, only 1 left!

0

25

Cub Cadet BS-825518

Pump, Injection

$3318.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-820412

Pipe, Fuel Return

$43.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-820829

Nut, Hex Injector Nozzle

$6.49

$

In Stock, only 3 left!

0

28

Cub Cadet BS-820831

Washer, Injector Nozzle

$6.49

$

In Stock, only 3 left!

0

29

Cub Cadet BS-821064

Key, Woodruff

$

$

Currently unavailable

30

Cub Cadet BS-820373

Module, Pre Heat

$192.99

$

Usually ships in 2-12 days

0

$25.99

$

Usually ships in 2-12 days

0
