7300 (54A-437D100) - Cub Cadet Compact Tractor Starter 30 HP Engine (7300 S/N 21932-Lower/7305 S/N 23069-Lower) Parts Diagram

Compact Tractor

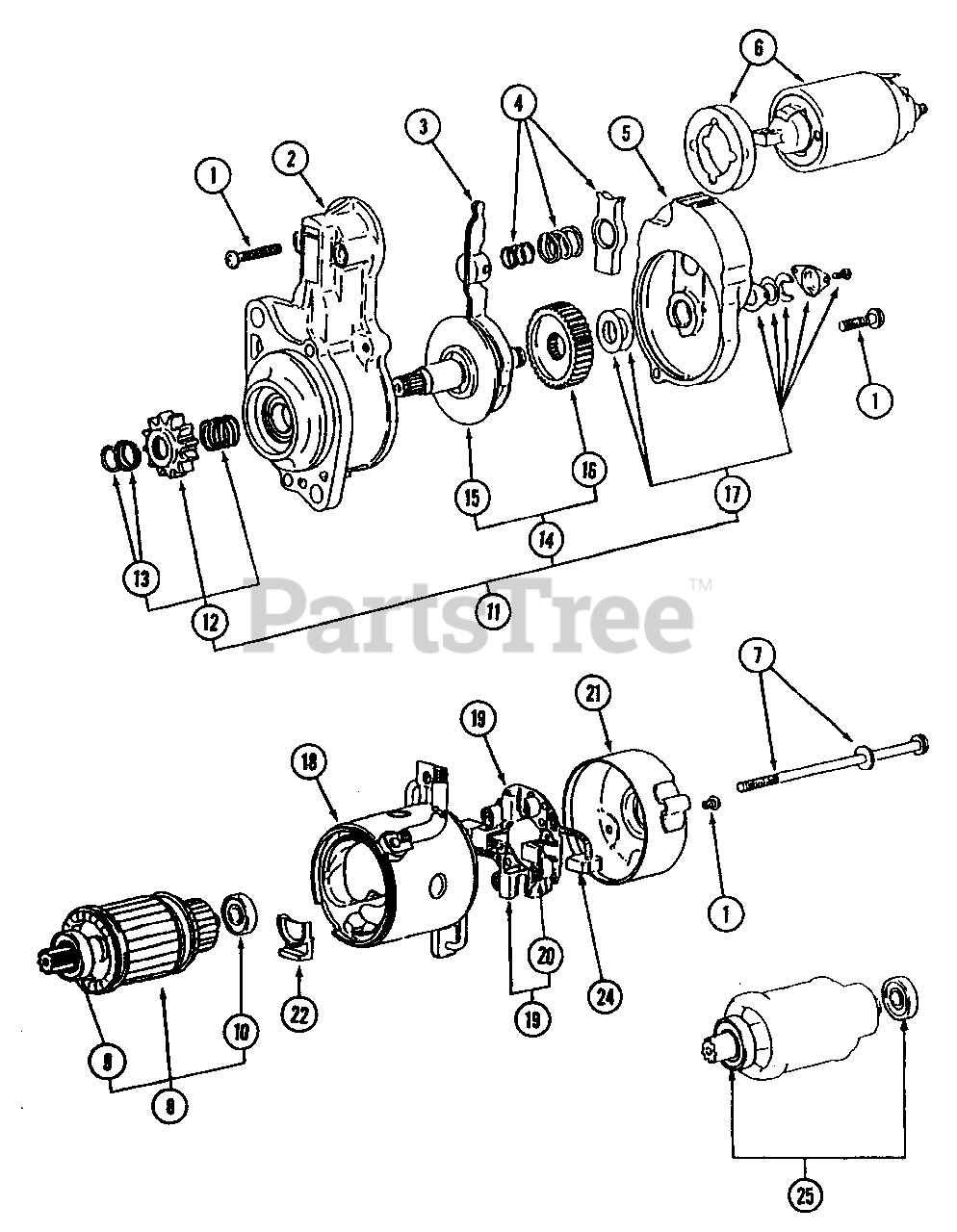

Starter 30 HP Engine (7300 S/N 21932-Lower/7305 S/N 23069-Lower) Parts Diagram

  • Title

Cub Cadet MA-MM409412

Starter Ass'y.

Note: Includes Items 1 - 24

$

$

Not available

1

Cub Cadet MA-M414X04871

Screw Set

$

$

Not available

2

Cub Cadet MA-M614X64971

Bracket Ass'y.,Front

$

$

Not available

3

Cub Cadet MA-M863C06171

Lever Ass'y.
(Superseded to MA-M863C05571)

$

$

Not available

4

Cub Cadet MA-M389X11472

Spring Set
(Superseded to MA-M389X11482)

$

$

Not available

5

Cub Cadet MA-M640827771

Bracket Ass'y.,Center

$

$

Currently unavailable

6

Cub Cadet MA-M372X00471

Switch Ass'y.

$

$

Not available

7

Cub Cadet MA-M901X00371

Bolt Set

$

$

Not available

8

Cub Cadet MA-M106X29871

Armature Set
(Superseded to MA-M106X41672)

$

$

Not available

9

Cub Cadet MA-S930P16470

Bearing, Front
(Superseded to MA-S930P14612)

$

$

Not available

10

Cub Cadet MA-S930P29901

Bearing, Rear

$

$

Not available

11

Cub Cadet MA-M357X85371

Shaft Ass'y., Clutch Set

$

$

Not available

12

Cub Cadet MA-M605X30671

Pinion Set

$

$

Not available

13

Cub Cadet MA-M385X03771

Stopper Set

$

$

Not available

14

Cub Cadet MA-M231X01371

Gear Set

$

$

Not available

15

Cub Cadet MA-M357T73171

Shaft Ass'y., Pinion

$

$

Not available

16

Cub Cadet MA-M231C01301

Gear

$

$

Not available

17

Cub Cadet MA-M212X11771

Cover Set

$

$

Not available

18

Cub Cadet MA-MM502440

Yoke Ass'y.

$349.99

$

Usually ships in 3-6 days

0

19

Cub Cadet MA-ME700127

Holder Ass'y., Brush

$

$

Not available

20

Cub Cadet MA-M391C02501

Spring, Brush

$

$

Not available

21

Cub Cadet MA-M644B21201

Bracket Ass'y., Rear

$

$

Not available

22

Cub Cadet MA-M578D22801

Packing

$

$

Not available

24

Cub Cadet MA-M648C28271

Brush
(Superseded to MA-M648X28271)

$

$

Not available

25

Cub Cadet MA-MM436608

Service Kit

$

$

Not available
