7300 (54A-437D100) - Cub Cadet Compact Tractor Lubricating Parts 30 HP Eng (7300 SN 21932-Lower/7305 SN 23069-Lower) Parts Diagram

Compact Tractor

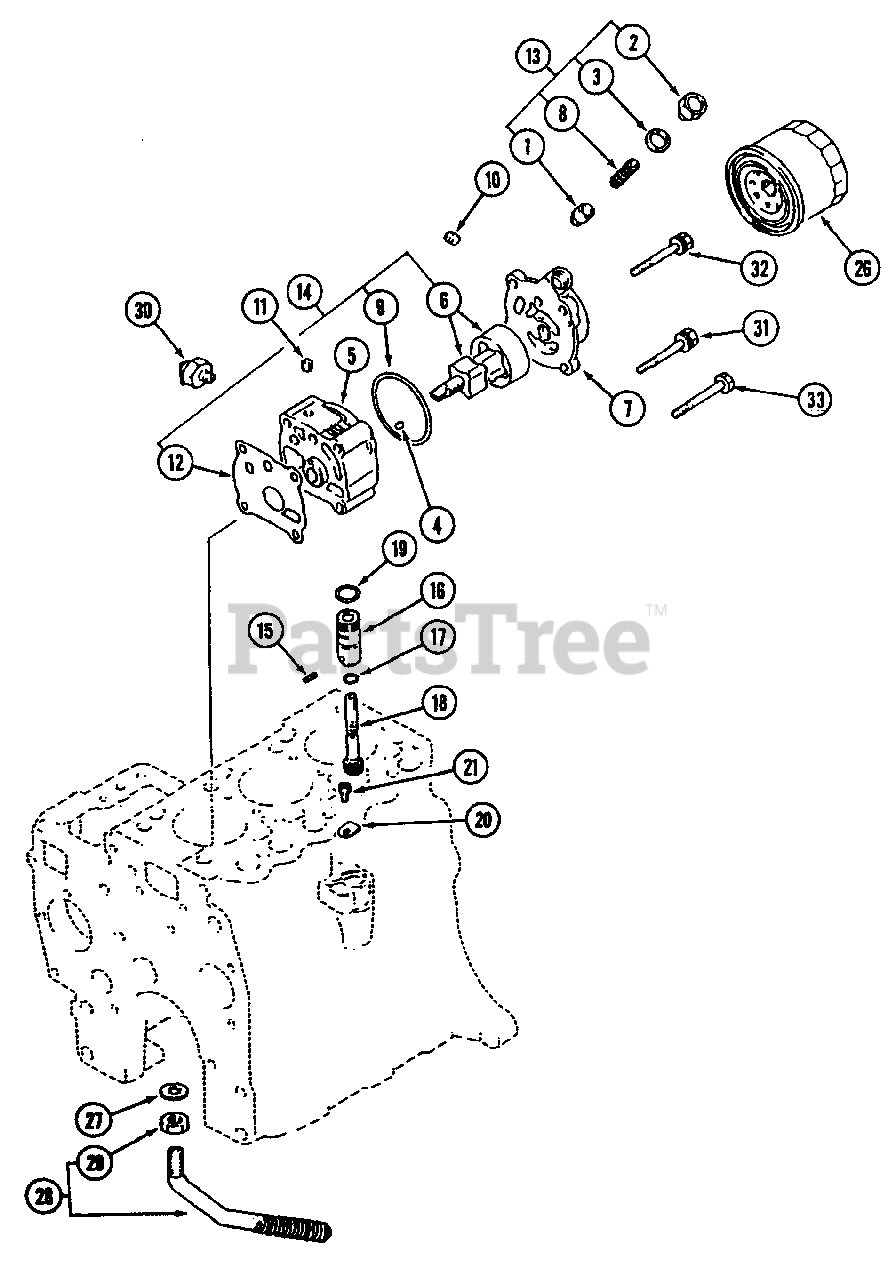

Lubricating Parts 30 HP Eng (7300 SN 21932-Lower/7305 SN 23069-Lower) Parts Diagram

  • Title

Cub Cadet MA-MM40937101

Oil Pump Ass'y.

Note: Includes Items 1 - 11

$371.99

$

Usually ships in 3-6 days

0

1

Cub Cadet MA-MD001402

Plunger, Relief

$

$

Not available

2

Cub Cadet MA-MD001404

Plug

$

$

Not available

3

Cub Cadet MA-MD000312

Gasket, Oil Drain Plug

$

$

Not available

4

Cub Cadet MA-K7913410

Pin, Dowel
(Superseded to MA-K7913410V)

$

$

Not available

5

Cub Cadet MA-MM409244

Body, Oil Pump

$

$

Not available

6

Cub Cadet MA-MM407125

Rotor Ass'y., Oil Pump

$

$

Not available

7

Cub Cadet MA-MM40937201

Cover, Oil Pump

$

$

Not available

8

Cub Cadet MA-MM409204

Spring, Relief

$

$

Not available

9

Cub Cadet MA-08300200750

O-Ring

$

$

Not available

10

Cub Cadet MA-A6010101300

Plug, Taper

$

$

Not available

11

Cub Cadet MA-A6010101000

Plug, Taper

$

$

Not available

12

Cub Cadet MA-30H35-00101

Gasket, Oil Pump Body

$

$

Not available

13

Cub Cadet MA-MM409893

Service Kit, Relief Valve

$

$

Not available

14

Cub Cadet MA-30A97-00038

Service Kit, Rotor

$174.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-MM430598

Driven Unit, Speedmeter
(Superseded to MA-MM43059801)

Note: Includes Items 15 - 19

$

$

Not available

15

Cub Cadet MA-MF472535

Pin, Spring
(Superseded to MA-05500003014)

$

$

Not available

16

Cub Cadet MA-MM430419

Sleeve, Speedmeter Gear

$

$

Not available

17

Cub Cadet MA-MD701788

O-Ring (B)

$

$

Not available

18

Cub Cadet MA-MM407171

Gear, Speedmeter Driven
(Superseded to MA-MM43059801)

$

$

Not available

19

Cub Cadet MA-MF520012

O-Ring
(Superseded to MA-08300100180)

$

$

Not available

20

Cub Cadet MA-MD701789

Plate, Locking

$

$

Not available

21

Cub Cadet MA-MF241224

Bolt, W/Washer

$

$

Not available

26

Cub Cadet MA-MD135737

Filter Ass'y., Oil
(Superseded to MA-31A40-02101)

$36.99

$

In Stock, only 1 left!

0

27

Cub Cadet MA-MF660036

Gasket

$

$

Not available

28

Cub Cadet MA-MM430178

Screen Ass'y., Oil

$

$

Not available

29

Cub Cadet MA-MF430729

Nut, Jam

$

$

Not available

30

Cub Cadet MA-31A90-00100

Switch Ass'y., Oil Pressure
(Superseded to MA-31A90-00601)

$

$

Not available

31

Cub Cadet MA-MF244864

Bolt, Washer Ass'y.
(Superseded to MA-F1805-08065)

$

$

Not available

32

Cub Cadet MA-MF244866

Bolt, Washer Ass'y.

$

$

Not available

33

Cub Cadet MA-F1035-08060

Bolt

$

$

Not available
