7300 (54A-437D100) - Cub Cadet Compact Tractor Front Axle MFD (Part 1) Parts Diagram

Compact Tractor

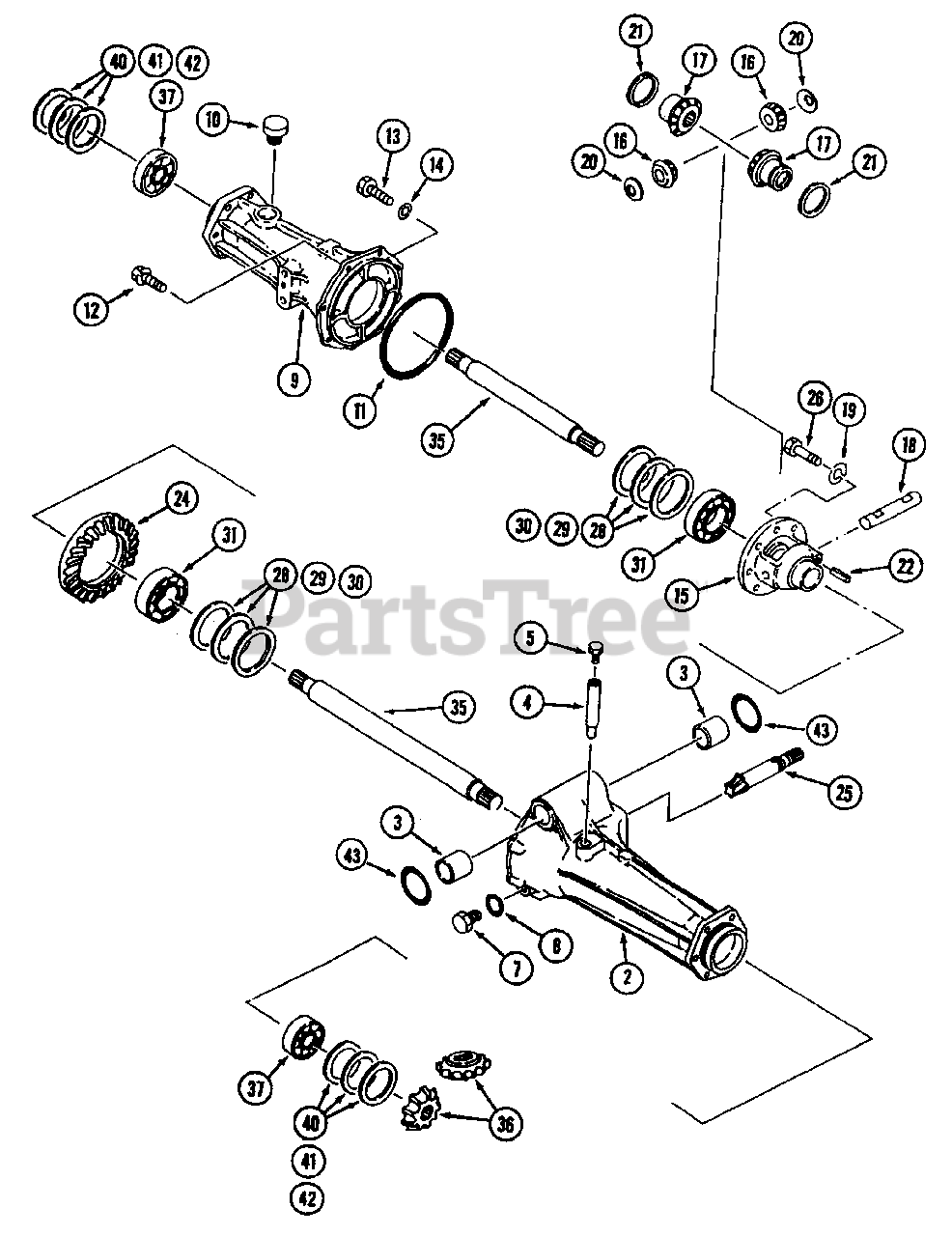

Front Axle MFD (Part 1) Parts Diagram

  • Title

Cub Cadet MA-19642101AG3

Front Axle,MFD Ass'y.

Note: This Part No. includes all parts from "Front Axle MFD" except Ref's.18-23 on "(part 2)"

$

$

Not available

Cub Cadet MA-19642111AG2

Housing, A Ass'y.

Note: Includes Items 2 & 3

$

$

Not available

2

Cub Cadet MA-19642112AG2

Housing, Axle A

$

$

Not available

3

Cub Cadet MA-07961030400

Bushing

$

$

Not available

Cub Cadet MA-07963030400

Bushing

Note: Replaced Bushing MA-07961030400 when inventory is depleted

$

$

Not available

4

Cub Cadet MA-19642117AG0

Pipe

$

$

Not available

5

Cub Cadet MA-11190621000

Plug, Vent

$

$

Not available

7

Cub Cadet MA-F5000-16000

Plug, Drain

$

$

Not available

8

Cub Cadet MA-08331001600

Washer, Seal
(Superseded to MA-08331001601)

$

$

Not available

9

Cub Cadet MA-10302119AG2

Case B, Center

$

$

Not available

10

Cub Cadet MA-11911211000

Oil Cap (A)

$

$

Not available

11

Cub Cadet MA-08300501500

O-Ring

$

$

Not available

12

Cub Cadet MA-F1550110030

Bolt

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet MA-69542-64700

Bolt

$8.99

$

In Stock, only 2 left!

0

14

Cub Cadet MA-A3600101002

Washer

$

$

Not available

Cub Cadet MA-19642113001

Diff. Case Ass'y.

Note: Includes Items 15 - 26

$

$

Not available

15

Cub Cadet MA-10312121000

Case, Diff

$580.99

$

Usually ships in 3-6 days

0

16

Cub Cadet MA-10191412000

Pinion Mate

$

$

Not available

17

Cub Cadet MA-10191413000

Gear, Side

$

$

Not available

18

Cub Cadet MA-10191414000

Shaft, Pinion

$115.99

$

Usually ships in 3-6 days

0

19

Cub Cadet MA-A3600101002

Washer

$

$

Not available

20

Cub Cadet MA-10191415000

Washer, Thrust

$

$

Not available

21

Cub Cadet MA-10191416000

Washer, Thrust

$7.49

$

In Stock, only 2 left!

0

22

Cub Cadet MA-05500006040

Pin,Spring

$

$

Not available

Cub Cadet MA-19642114000

Pinion,Shaft Sub Set

Note: Includes Items 24 & 25

$1749.99

$

Usually ships in 3-6 days

0

24

Gear,Ring

$

$

Not available

25

Shaft, Pinion

$

$

Not available

26

Cub Cadet MA-10312132000

Bolt

$

$

Not available

Cub Cadet MA-12186568000

Bolt

$

$

Not available

Cub Cadet MA-10190623000

Shim Set

Note: Includes Items 28 - 30

$

$

Not available

28

Cub Cadet MA-10070618000

Liner t=0.1

$

$

Not available

29

Cub Cadet MA-10070618100

Liner t=0.2

$

$

Not available

30

Cub Cadet MA-10070618200

Liner t=0.4

$

$

Not available

31

Cub Cadet MA-07500060100

Bearing

$60.99

$

Usually ships in 3-6 days

0

35

Cub Cadet MA-10302128000

Shaft, Diff

$

$

Not available

36

Cub Cadet MA-19642118000

Gear, 15T

$

$

Not available

37

Cub Cadet MA-07500063050

Bearing

$38.99

$

In Stock, only 4 left!

0

Cub Cadet MA-10190626000

Shim Set, Pinion

Note: Includes Items 40 - 42

$

$

Not available

40

Cub Cadet MA-11353016000

Liner

$

$

Not available

41

Cub Cadet MA-07310002502

Liner t=0.2

$

$

Not available

42

Cub Cadet MA-07310002504

Liner t=0.4

$

$

Not available

43

Cub Cadet MA-08300100290

O-Ring

$

$

Not available
