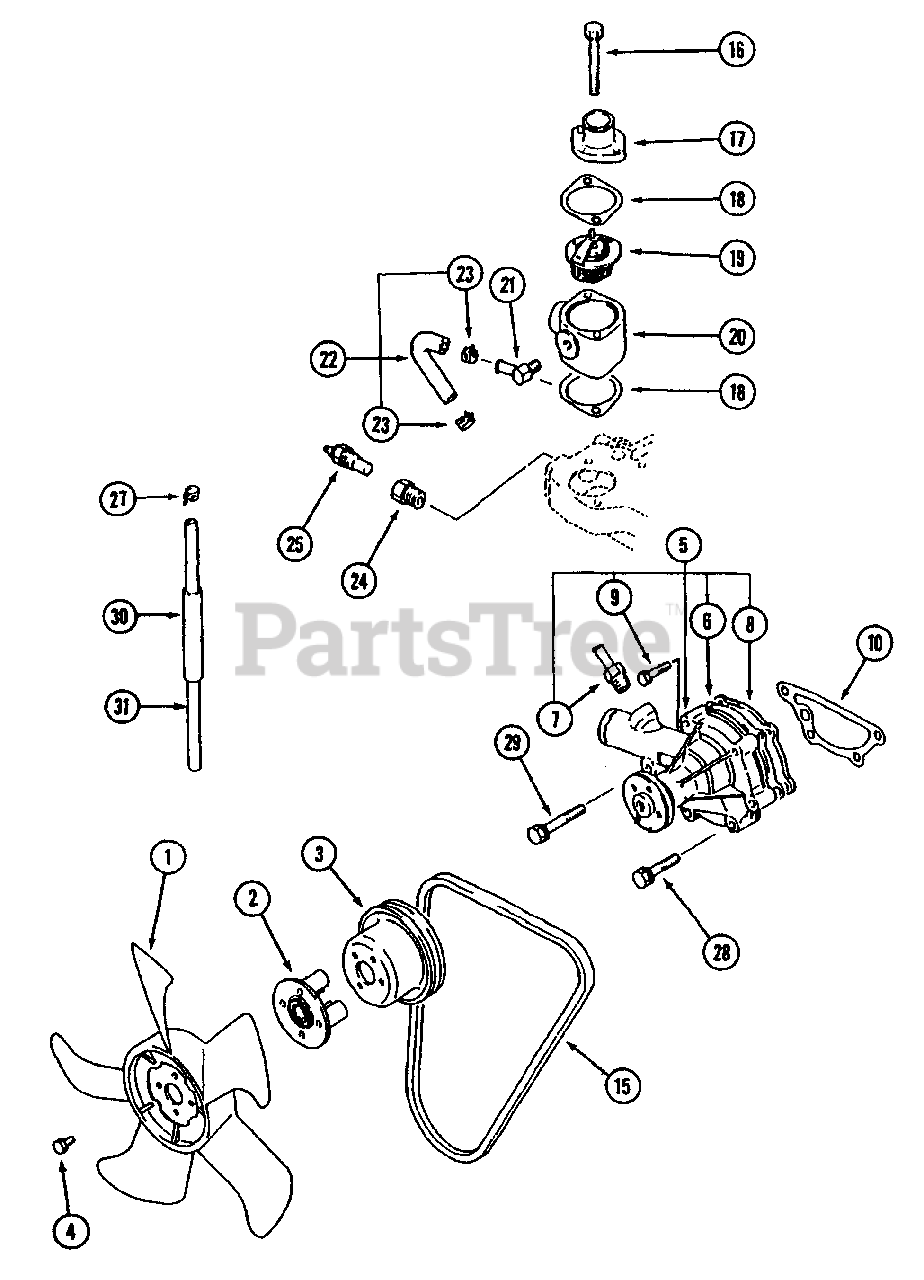

7300 (54A-437D100) - Cub Cadet Compact Tractor Cooling Parts 30 HP Engine (7300 S/N 21932-Lower/7305 S/N 23069-Lower) Parts Diagram

Compact Tractor

Cooling Parts 30 HP Engine (7300 S/N 21932-Lower/7305 S/N 23069-Lower) Parts Diagram

  • Title
1

Cub Cadet MA-MD009014

Fan, Cooling

$252.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-MM434493

Spacer, Fan

$

$

Not available

3

Cub Cadet MA-MM405460

Pulley, Water Pump

$

$

Not available

4

Cub Cadet MA-MF241229

Bolt, W/Washer

$

$

Not available

5

Cub Cadet MA-MM407402

Pump Ass'y., Water

$415.99

$

Usually ships in 3-6 days

0

6

Cub Cadet MA-MM409326

Gasket, Water Pump

$

$

Not available

7

Cub Cadet MA-MM409314

Joint, Water Pump

$

$

Not available

8

Cub Cadet MA-MM409327

Plate, Water Pump

$

$

Not available

9

Cub Cadet MA-MF240031

Bolt, W/Washer

$

$

Not available

10

Cub Cadet MA-30H45-00101

Gasket, Water Pump

$

$

Not available

15

Cub Cadet MA-MD027458

V-Belt

Note: Used with MA-MM435752 Alternator.

$

$

Not available

Cub Cadet MA-MD041704

V-Belt

Note: Used with MA-30A68-00800 Alternator.

$25.99

$

In Stock, only 4 left!

0

16

Cub Cadet MA-MF241267

Bolt, W/Washer

$

$

Not available

17

Cub Cadet MA-MM409313

Fitting, Water Outlet
(Superseded to MA-MM40931301)

$

$

Not available

18

Cub Cadet MA-MD000551

Gasket
(Superseded to MA-31A46-11200)

$9.99

$

In Stock, only 2 left!

0

19

Cub Cadet MA-30A46-00700

Thermostat
(Superseded to MA-30A46-10700)

$59.99

$

In Stock, only 1 left!

0

20

Cub Cadet MA-MM409334

Fitting, Thermostat

$82.99

$

Usually ships in 3-6 days

0

21

Cub Cadet MA-MM409311

Joint, Water Hose

$

$

Not available

22

Cub Cadet MA-MM409336

Hose Ass'y., Water Bypass

$

$

Not available

23

$

$

Not available

24

Cub Cadet MA-MA604250

Joint, Gauge Unit

$

$

Not available

25

Cub Cadet MA-MD001380

Gauge Unit, Water Temp

$66.99

$

Usually ships in 3-6 days

0

27

$

$

Not available

28

Cub Cadet MA-MF244860

Bolt, Washer Ass'y.
(Superseded to MA-H1540108045)

$

$

Not available

29

Cub Cadet MA-MF244863

Bolt, Washer Ass'y.

$

$

Not available

30

$

$

Not available

31

$

$

Not available
