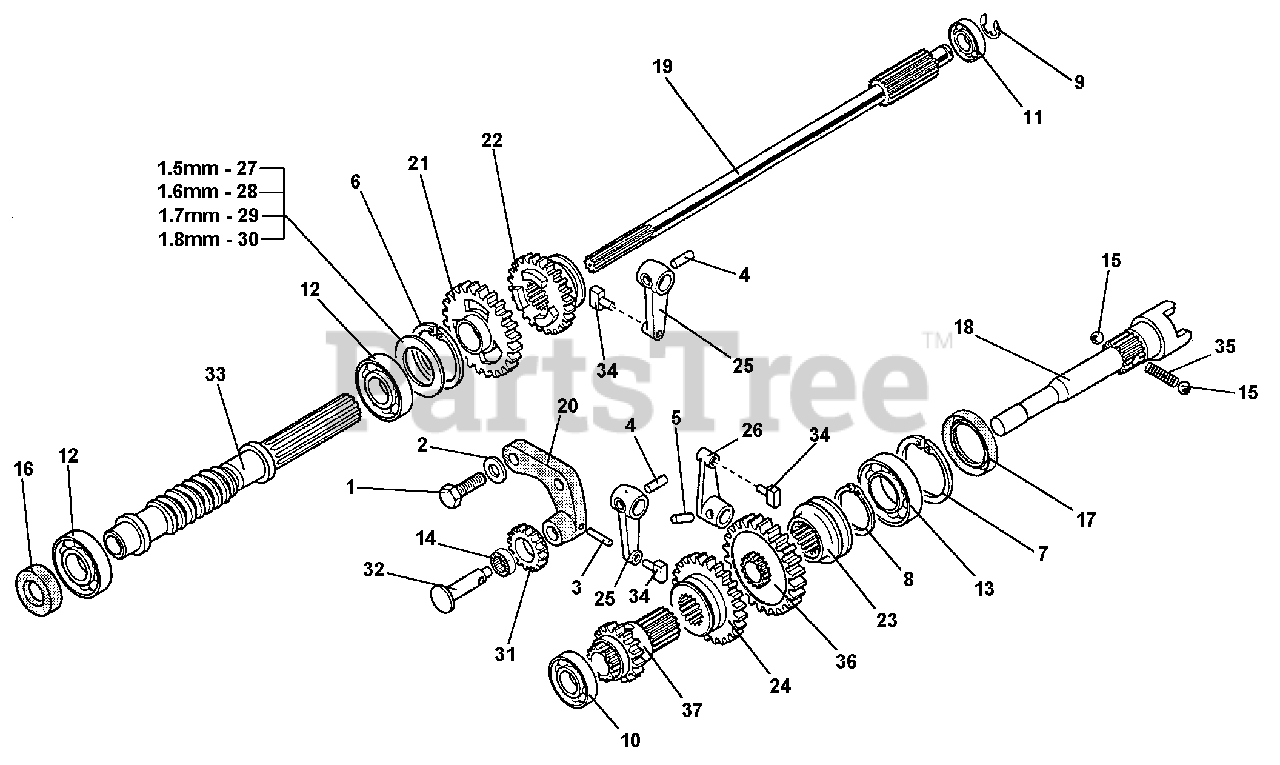

730 - BCS America Two-Wheeled Tractor Transmission (SN: 109998 & Above) Parts Diagram

Two-Wheeled Tractor

Transmission (SN: 109998 & Above) Parts Diagram

  • Title

1

BCS America 311.12211

SCREW, M10X30

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 314.21101

SUPER WASHER 10

$1.99

$

In Stock, only 3 left!

0

3

BCS America 342.11042

LOCKING PIN, 4X25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 34213060

LOCKING PIN, 6X24

$1.99

$

In Stock, only 2 left!

0

5

BCS America 342.13061

LOCKING PIN, 6X20 SPIRAL

$1.49

$

In Stock, Qty 6

0

6

BCS America 351.11052

CIRCLIP, INTERNAL

$1.99

$

In Stock, Qty 5

0

7

BCS America 351.11055

CIRCLIP, INTERNAL

$2.49

$

In Stock, only 1 left!

0

8

BCS America 351.21031

CIRCLIP, EXTERNAL

$1.99

$

In Stock, only 4 left!

0

9

BCS America 35211120

RETAINING RING

$1.49

$

In Stock, Qty 8

0

10

BCS America 371.11151

BEARING, 15X35X11

$10.99

$

In Stock, only 1 left!

0

11

BCS America 371.11152

BEARING, 15X42X13

$17.99

$

Usually ships in 5-8 days

0

12

BCS America 371.11255

BEARING, 25X52X15

$15.99

$

In Stock, only 1 left!

0

13

BCS America 371.12229

BEARING, 30X55X13

$19.99

$

Usually ships in 5-8 days

0

14

BCS America 37320120

BEARING, 12X15X10

$24.99

$

Usually ships in 5-8 days

0

15

BCS America 379.10832

BALL, 1/4"

$0.99

$

In Stock, Qty 10

0

16

BCS America 38211500

OIL SEAL, 15X28X7

$8.49

$

Usually ships in 5-8 days

0

17

BCS America 38213800

OIL SEAL, 38X55X7

$11.99

$

Usually ships in 5-8 days

0

18

BCS America 524.56335

PTO SHAFT

$179.99

$

Usually ships in 5-8 days

0

19

BCS America 524.56339

MAIN SHAFT

$250.99

$

Usually ships in 5-8 days

0

20

BCS America 524.56344

REVERSER BRACKET

$

$

Currently unavailable

21

BCS America 524.56354

FIRST GEAR

$143.99

$

Usually ships in 5-8 days

0

22

BCS America 524.56361

SLIDER GEAR

$156.99

$

Usually ships in 5-8 days

0

23

BCS America 524.56362

PTO SLIDER

$94.99

$

Usually ships in 5-8 days

0

24

BCS America 52456370

SLIDER, REVERSER

$156.99

$

Usually ships in 5-8 days

0

25

BCS America 524.56389

LEVER, SLIDER

$49.99

$

Usually ships in 5-8 days

0

26

BCS America 52456390

LEVER, PTO ENGAGMENT

$61.99

$

Usually ships in 5-8 days

0

27

BCS America 563.56328

SHIM, 1.5MM

$12.99

$

In Stock, only 1 left!

0

28

BCS America 563.56329

SHIM, 1.6MM

$12.99

$

Usually ships in 5-8 days

0

29

BCS America 56356330

SHIM 1.7MM

$11.99

$

Usually ships in 5-8 days

0

30

BCS America 563.56331

SHIM 1.8MM

$12.99

$

Usually ships in 5-8 days

0

31

BCS America 564.56347

REVERSE GEAR

$124.99

$

Usually ships in 5-8 days

0

32

BCS America 564.56351

PIN, REVERSE GEAR

$

$

Not available

33

BCS America 564.56475

WORM GEAR

$248.99

$

Usually ships in 5-8 days

0

34

BCS America 580.43086

SHOE

$10.99

$

Usually ships in 5-8 days

0

35

BCS America 580.56391

SPRING, PTO BALLS

$1.99

$

In Stock, Qty 5

0

36

BCS America 590.56365

PTO GEAR

$

$

Currently unavailable

37

BCS America 590.56384

GEAR

$263.99

$

Usually ships in 5-8 days

0
