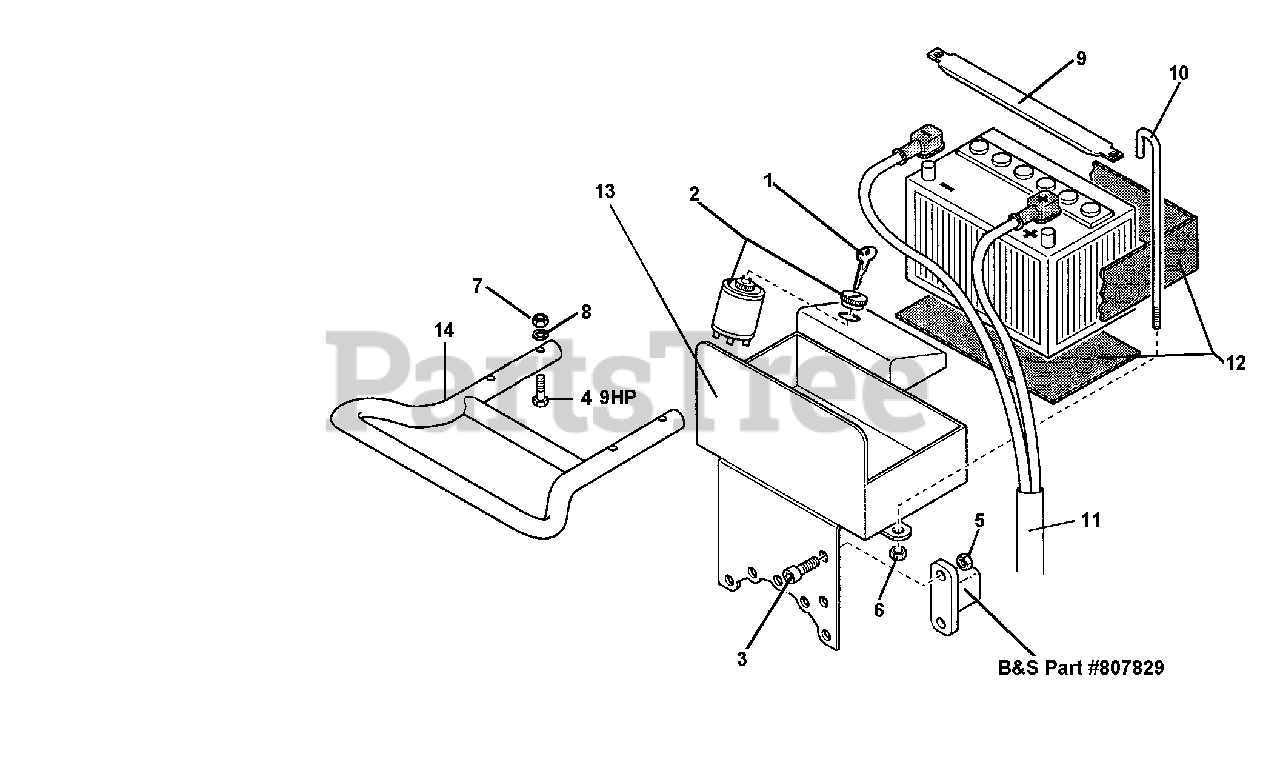

730 - BCS America Two-Wheeled Tractor Electric Start & Bumper (SN: 100000 - 124663) Parts Diagram

Two-Wheeled Tractor

Electric Start & Bumper (SN: 100000 - 124663) Parts Diagram

  • Title

1

BCS America 300.00276

KEY

$5.49

$

In Stock, only 2 left!

0

2

BCS America 300.00277

SWITCH

$127.99

$

Usually ships in 5-8 days

0

3

BCS America 31111090

SCREW TE M6X10

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12156

SCREW M8X60

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31211060

NUT M6

$0.99

$

In Stock, Qty 8

0

6

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

8

BCS America 314.11084

FLAT WASHER 8.4

$0.99

$

In Stock, only 4 left!

0

9

BCS America 561.19937

BATTERY BRACKET

$32.99

$

Usually ships in 5-8 days

0

10

BCS America 56149590

BATTERY TIEROD

$14.99

$

Usually ships in 5-8 days

0

11

BCS America 580.4979

ELECTRIC STARTER CABLES, 9HP VAN.

$

$

Currently unavailable

12

BCS America 580.57381

BATTERY PADS

$24.99

$

Usually ships in 5-8 days

0

13

590.49791

BATTERY SUPPORT, 9HP VAN.

$

$

Not available

14

BCS America 590.56078

BUMPER, 9HP VANGUARD

$151.70

$

Usually ships in 5-8 days

0
