73 (2050036U) - Cub Cadet Garden Tractor Three Point Hitch & Drawbar Parts Diagram

Garden Tractor

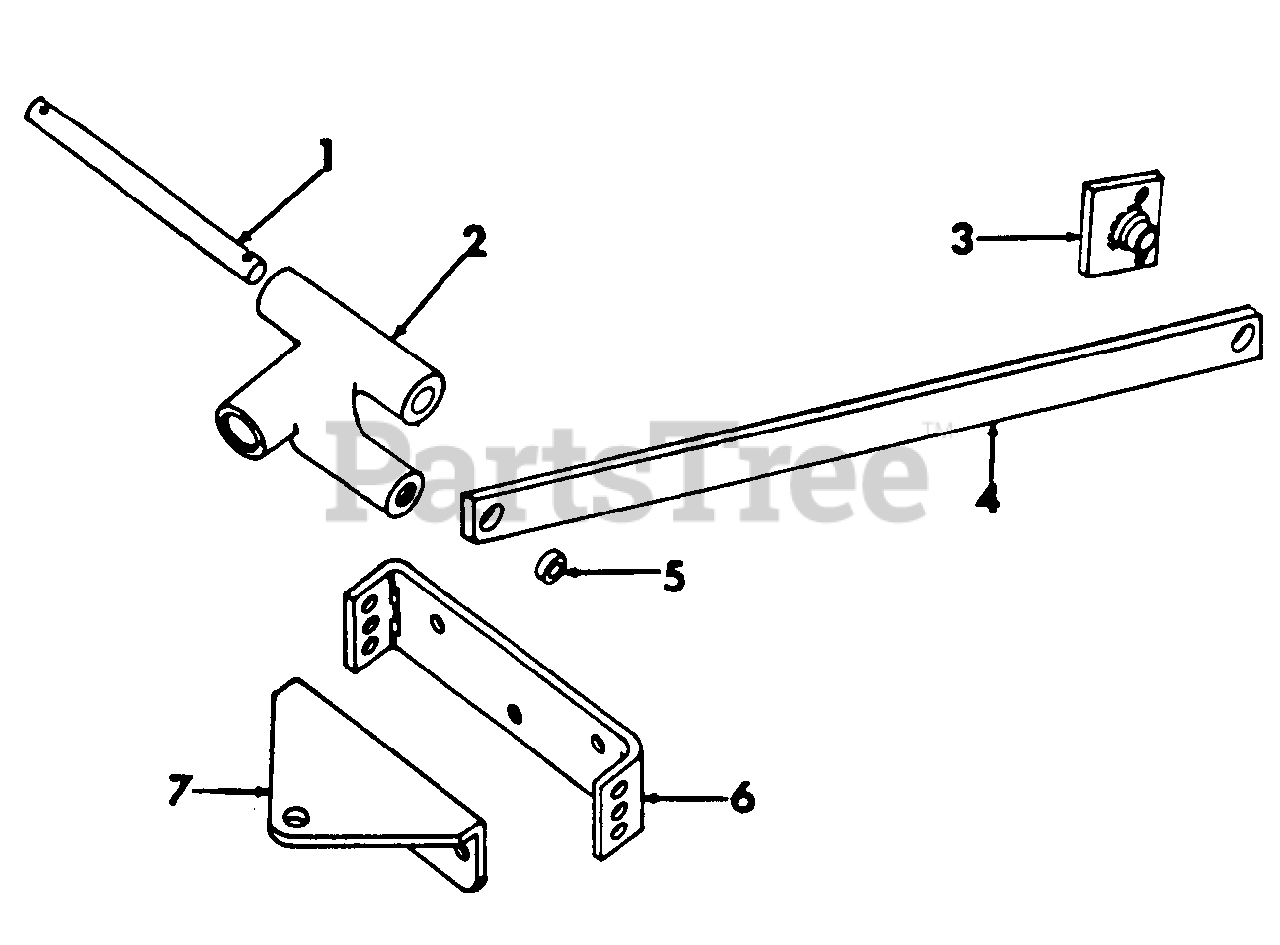

Three Point Hitch & Drawbar Parts Diagram

  • Title

1

~NLA

Shaft, Lift Lever

$

$

Not available

Cub Cadet 714-0111

Pin, 3/32 X 7/8 Cot

$4.99

$

In Stock, Qty 13

0

2

Cub Cadet IH-384655-R1

Lever, Lift

$

$

Not available

Screw, 1/2-13 X 1-3/8 C-Z Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0921

Washer, 1/2 C-Z Med Lock

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 736-0272

Washer, 17/32 X 1-1/16 X .095 C-Z

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-384679-R11

Plate Assy, Lift Bar Attaching

$

$

Not available

Pin, 3/32 X 1 Cot

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet IH-20240-R1

Screw, 5/16-18 X 7/8 C-Z Hex Hd Cap

$

$

Currently unavailable

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0275

Washer, 11/32 X 11/16 X .065 C-Z

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet IH-384677-R1

Bar, Lift

$

$

Not available

5

Cub Cadet 711-3073

Spacer, Lift Bar

$

$

Not available

6

Cub Cadet 703-0400

Link, Lower Hitch
(Superseded to 703-0400-0498)

Variations

Cub Cadet 703-0400-0498

LINK-HITCH-LWR - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3005

Screw, 3/8-16 X 1-1/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-0401

Drawbar, Fixed

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 1 Hex Hd Cap

$

$

Not available
