73 (2050036U) - Cub Cadet Garden Tractor Engine-K181 Series-8 Hp Parts Diagram

Garden Tractor

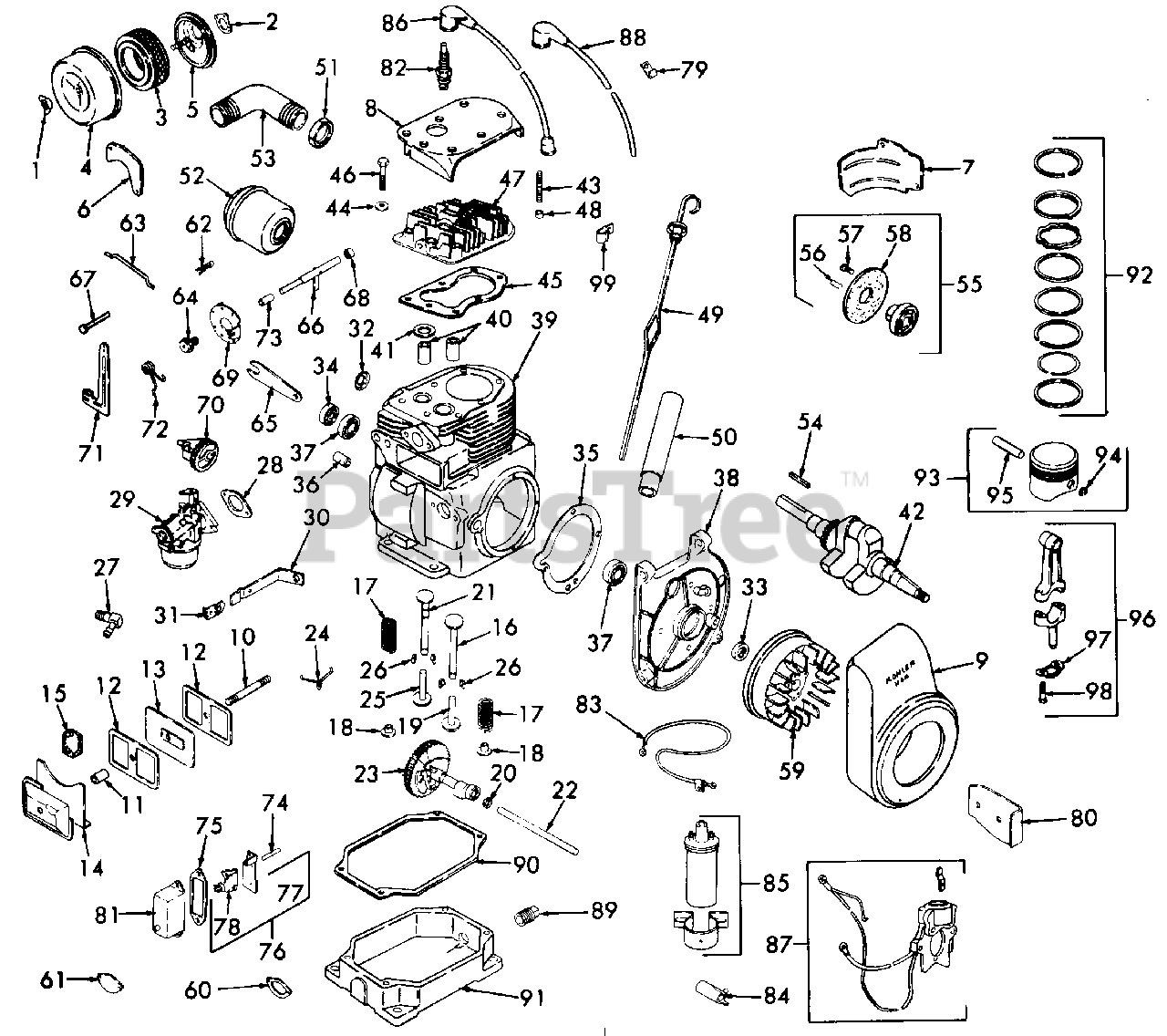

Engine-K181 Series-8 Hp Parts Diagram

  • Title

1

Cub Cadet KH-X-276-7

Nut 1/4-20 Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

2

Cub Cadet KH-220537

Gasket

$

$

Not available

3

Cub Cadet KH-231847

Element, Air Cleaner
(Superseded to KH-231847-S)

$18.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-231855

Cover, Air Cleaner

$

$

Not available

5

~NLA

Base, Air Cleaner

$

$

Not available

Cub Cadet 710-3090

Screw, #8-32 X 3/8 Self Tap

$

$

Not available

Screw, #8-32 X 3/8 Rd Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

6

~NLA

Baffle, Side Air

$

$

Not available

7

~NLA

Baffle, Cylinder

$

$

Not available

8

Cub Cadet KH-234796

Baffle, Head

$

$

Not available

9

Cub Cadet KH-41-027-10

Housing, Blower

Note: (Used on Spec No. 30564)

$

$

Not available

9

~NLA

Housing, Blower

Note: (Used on Spec No. 30565)

$

$

Not available

Cub Cadet KH-X-25-63

Washer

$

$

Not available

Screw, 1/4-20 X 1/2 Hex Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Screw, 1/4-20 X 3/4 Hex Cap

Note: Common Hardware Purchase Locally

$

$

Not available

10

Cub Cadet KH-230043

Stud, Valve Cover

$

$

Currently unavailable

11

Cub Cadet KH-230046

Seal, Breather

$

$

Not available

12

Cub Cadet KH-230048

Gasket, Valve Cover

$

$

Not available

13

Cub Cadet KH-230066

Breather Assy

$

$

Not available

14

~NLA

Cover Assy, Valve

$

$

Not available

Washer, 1/4 Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Hex

$4.99

$

In Stock, Qty 19

0

15

Cub Cadet KH-231419

Filter
(Superseded to KH-231419-S)

$8.49

$

In Stock, Qty 6

0

16

Cub Cadet KH-230008

Valve, Intake

$

$

Not available

17

Cub Cadet KH-230010

Spring, Valve

$

$

Not available

18

Cub Cadet KH-230011

Retainer, Spring

$

$

Not available

19

~NLA

Tappet, Intake Valve

$

$

Not available

20

Cub Cadet KH-230293

Spacer, Camshaft, .005

$

$

Not available

20

Cub Cadet KH-230294

Spacer, Camshaft, .010

$

$

Not available

21

Cub Cadet KH-230710

Valve, Exhaust

$

$

Not available

22

Cub Cadet KH-41-380-03

Pin, Camshaft

$

$

Not available

23

Cub Cadet KH-A-230155-S

Camshaft Assy

$

$

Not available

24

Cub Cadet KH-47-089-01

Spring, Actuating

$

$

Not available

25

~NLA

Tappet, Exhaust Valve

$

$

Not available

26

Cub Cadet IH-46209D

Keeper, Spring

Note: (Order in sets of two)

$

$

Currently unavailable

27

Cub Cadet IH-401967-R1

Elbow, Hose

$

$

Not available

28

Cub Cadet KH-210223

Gasket, Carburetor

$

$

Not available

29

Cub Cadet KH-41-853-08

Carburetor Assy

$

$

Not available

Cub Cadet KH-X-140-1

Screw, 1/4-20 X 3/4

$

$

Not available

30

Cub Cadet KH-232683

Bracket, Choke

$

$

Not available

31

Cub Cadet KH-235603

Clip

$

$

Not available

32

Cub Cadet IH-172548

Plug, Expansion

$

$

Currently unavailable

33

Cub Cadet KH-X-583-1

Seal, Front Oil

$

$

Not available

34

Cub Cadet KH-X-583-2

Seal, Rear Oil

$

$

Not available

35

Cub Cadet KH-230071

Gasket

$

$

Not available

36

Cub Cadet KH-230125-S

Shaft, Governor

$41.99

$

Usually ships in 2-5 days

0

37

Cub Cadet IH-ST429

Bearing, Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

38

~NLA

Plate, Bearing

Note: (Used on Spec No. 30564)

$

$

Not available

~NLA

Plate, Bearing

Note: (Used on Spec No. 30565)

$

$

Not available

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 Hex Cap

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet KH-B-238001

Mini Block Assy

$

$

Currently unavailable

40

Cub Cadet KH-230007-S

Guide, Valve

$25.99

$

Usually ships in 2-5 days

0

41

Cub Cadet KH-230170

Insert, Exhaust Valve

$

$

Not available

42

Cub Cadet KH-231767

Crankshaft

$

$

Not available

43

~NLA

Stud

$

$

Not available

Cub Cadet 712-0267

Nut, 5/16 X 18 Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet KH-220534

Washer

$

$

Not available

45

Cub Cadet KH-41-041-10

Gasket, Head

$

$

Not available

46

Cub Cadet IH-454871

Screw, 5/16-18 X 1-1/2 Hex Cap
(Superseded to KH-41-086-02)

$

$

Not available

47

Cub Cadet KH-41-755-25

Head, Cylinder

$

$

Not available

48

Cub Cadet KH-234847

Spacer

$

$

Not available

49

Cub Cadet KH-A-231725

Dipstick Assy

$

$

Not available

50

Cub Cadet KH-231726

Tube, Oil Fill

$

$

Not available

51

Cub Cadet 712-0250

Nut, Lock

$

$

Not available

52

Cub Cadet KH-230410

Muffler
(Superseded to KH-230410-S)

$

$

Not available

53

Cub Cadet KH-231820

Elbow, Exhaust
(Superseded to KH-231820-S)

$95.99

$

Usually ships in 2-5 days

0

54

Cub Cadet IH-532004-R1

Key
(Superseded to KH-X-286-17)

$

$

Not available

55

Cub Cadet KH-41-071-04

Cup Assy, Flywheel Drive

$

$

Not available

Cub Cadet 759-3287

Cup w/Pulley

$

$

Not available

56

Cub Cadet IH-385293-R1

Pin, 1/4 X 3/4
(Superseded to KH-X-56-7)

Note: (Used on Spec No. 30564)

$

$

Not available

57

Screw, No. 8-32 X 1/4

Note: (Used on Spec No. 30564); Common Hardware Purchase Locally

$

$

Not available

58

~NLA

Screen

Note: (Used on Spec No. 30564)

$

$

Not available

59

Cub Cadet KH-234877

Flywheel

Note: (Used on Spec No. 30564)

$

$

Not available

~NLA

Flywheel

Note: (Used on Spec No. 30565)

$

$

Not available

Cub Cadet KH-X-25-15

Washer, 5/8 Lock

Note: (Used on Spec No. 30564)

$

$

Currently unavailable

Cub Cadet IH-25879-R1

Washer, 5/8 Lock

Note: (Used on Spec No. 30565)

$

$

Currently unavailable

Cub Cadet IH-125267

Nut, 5/8-18 Hex

Note: (Used on Spec No. 30564)

$

$

Not available

Cub Cadet IH-121358

Nut, 5/8-18 Hex

Note: (Used on Spec No. 30565)

$

$

Currently unavailable

60

Cub Cadet KH-52-041-17

Gasket, Fuel Pump Pad

$

$

Not available

61

Cub Cadet KH-240282

Cover, Fuel Pump Pad

$

$

Not available

Cub Cadet IH-9409106

Screw, 1/4-20 X 1/2 Hex Cap

$

$

Not available

62

Pin

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet KH-X-25-12

Washer

$

$

Not available

63

Cub Cadet KH-230078

Linkage, Governor

$

$

Not available

64

Cub Cadet KH-230476

Bushing, Governor
(Superseded to KH-230476-S)

$

$

Not available

65

Cub Cadet KH-230477

Bracket, Speed Control

$

$

Not available

66

Cub Cadet KH-230540-S

Shaft, Governor

$116.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-58

Washer

$

$

Not available

67

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

68

Cub Cadet KH-234866

Bearing, Needle

$

$

Not available

69

Cub Cadet KH-230149

Disc, Regulating

$

$

Not available

70

Cub Cadet KH-A-235743-S

Gear, Governor

$79.99

$

Usually ships in 2-5 days

0

71

Cub Cadet KH-232614

Lever, Governor

$

$

Not available

Screw, 1/4-20 X 1 Hex Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0463

Washer, 1/4

$4.49

$

In Stock, Qty 12

0

Cub Cadet KH-X-67-46

Screw, #8 Self Tap

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Hex

$4.99

$

In Stock, Qty 19

0

72

Cub Cadet KH-232617

Spring, Governor

$

$

Not available

73

Cub Cadet IH-55170-C1

Spacer
(Superseded to KH-230540-S)

$116.99

$

Usually ships in 2-5 days

0

74

Cub Cadet KH-41-411-01

Rod, Breaker

$

$

Not available

75

Cub Cadet KH-52-041-11

Gasket, Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

76

Cub Cadet KH-47-150-03

Breaker Assy

$

$

Not available

77

Cub Cadet KH-47-150-03

Bracket, Breaker Point

$

$

Not available

78

Cub Cadet KH-47-150-03

Points

$

$

Not available

79

Cub Cadet KH-230249

Clip

$

$

Not available

80

~NLA

Bracket, Coil

Note: (Used on Spec No. 30564)

$

$

Not available

81

Cub Cadet KH-47-150-03

Cover, Breaker

$

$

Not available

Cub Cadet KH-X-131-1

Screw, #10-24 X 3/8

$

$

Not available

82

Cub Cadet IH-J8C

Plug, Spark
(Superseded to 759-3339)

$3.49

$

In Stock, Qty 19

0

83

Cub Cadet KH-A-230371

Lead, Breaker

Note: (Used on Spec No. 30564)

$

$

Not available

84

Cub Cadet IH-62188-C1

Condenser
(Superseded to KH-230722-S)

Note: (Used on Spec No. 30564)

$31.99

$

Usually ships in 2-5 days

0

Screw, 1/4-20 X 5/8 Hex Cap

Note: Common Hardware Purchase Locally

$

$

Not available

~NLA

Condenser

Note: (Used on Spec No. 30565)

$

$

Not available

~NLA

Screw, Condenser

$

$

Not available

85

Cub Cadet KH-231281

Coil, Ignition
(Superseded to KH-41-519-21-S)

Note: (Used on Spec No. 30564)

$149.99

$

In Stock, only 1 left!

0

Screw, 1/4-20 X 5/8 Hex Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0173

Washer, 1/4

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet KH-238057

Cable, High Tension
(Superseded to KH-238057-S)

Note: (Used on Spec No. 30564)

$

$

Not available

87

Cub Cadet KH-A-235741

Stator Assy

Note: (Used on Spec No. 30565)

$

$

Not available

Screw, 1/4-20 X 1 Hex Cap

Note: Common Hardware Purchase Locally

$

$

Not available

88

Cub Cadet KH-238057

Lead, Hi-Tension
(Superseded to KH-238057-S)

Note: (Used on Spec No. 30565)

$

$

Not available

89

Cub Cadet KH-X-75-10

Plug, 3/8 Pipe
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

90

Cub Cadet KH-41-041-03

Gasket, Pan

$

$

Not available

91

Cub Cadet KH-41-199-08

Pan, Oil

$

$

Not available

Screw, 5/16-18 X 1-1/8 Hex Cap

$

$

Not available

92

Cub Cadet KH-232575

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-232576

Ring Set, Piston, .010 O/S

$

$

Not available

Cub Cadet KH-232577

Ring Set, Piston, .020 O/S

$

$

Not available

Cub Cadet KH-232578

Ring Set, Piston, .030 O/S

$

$

Not available

93

Cub Cadet KH-41-874-05

Piston Assy, Std

$

$

Not available

Cub Cadet KH-41-874-07

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-41-874-08

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-41-874-09

Piston Assy, .030 O/S

$

$

Not available

94

Cub Cadet KH-230004

Retainer, Pin

$

$

Not available

95

~NLA

Pin, Piston, Std

$

$

Not available

~NLA

Pin, Piston, .005 O/S

$

$

Not available

~NLA

Pin, Piston, .010 O/S

$

$

Not available

96

Cub Cadet KH-41-067-10

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-41-067-11

Rod Assy, Connecting, .010 U/S

$

$

Not available

97

Cub Cadet KH-230525

Lock, Connecting Rod

$

$

Not available

98

~NLA

Screw, Connecting Rod

$

$

Not available

99

Cub Cadet IH-263515-R91

Clip, Choke Cable

$

$

Currently unavailable

Cub Cadet IH-376298-R1

Clip, Throttle Cable
(Superseded to KH-210149)

$

$

Not available

Cub Cadet KH-41-004-01

Kit, Gasket
(Superseded to KH-41-755-06)

$

$

Not available

Cub Cadet KH-25-757-01

Kit, Carburetor Repair

$22.99

$

In Stock, Qty 5

0
