73 (2050036U) - Cub Cadet Garden Tractor Engine-K161 Series-7 Hp Parts Diagram

Garden Tractor

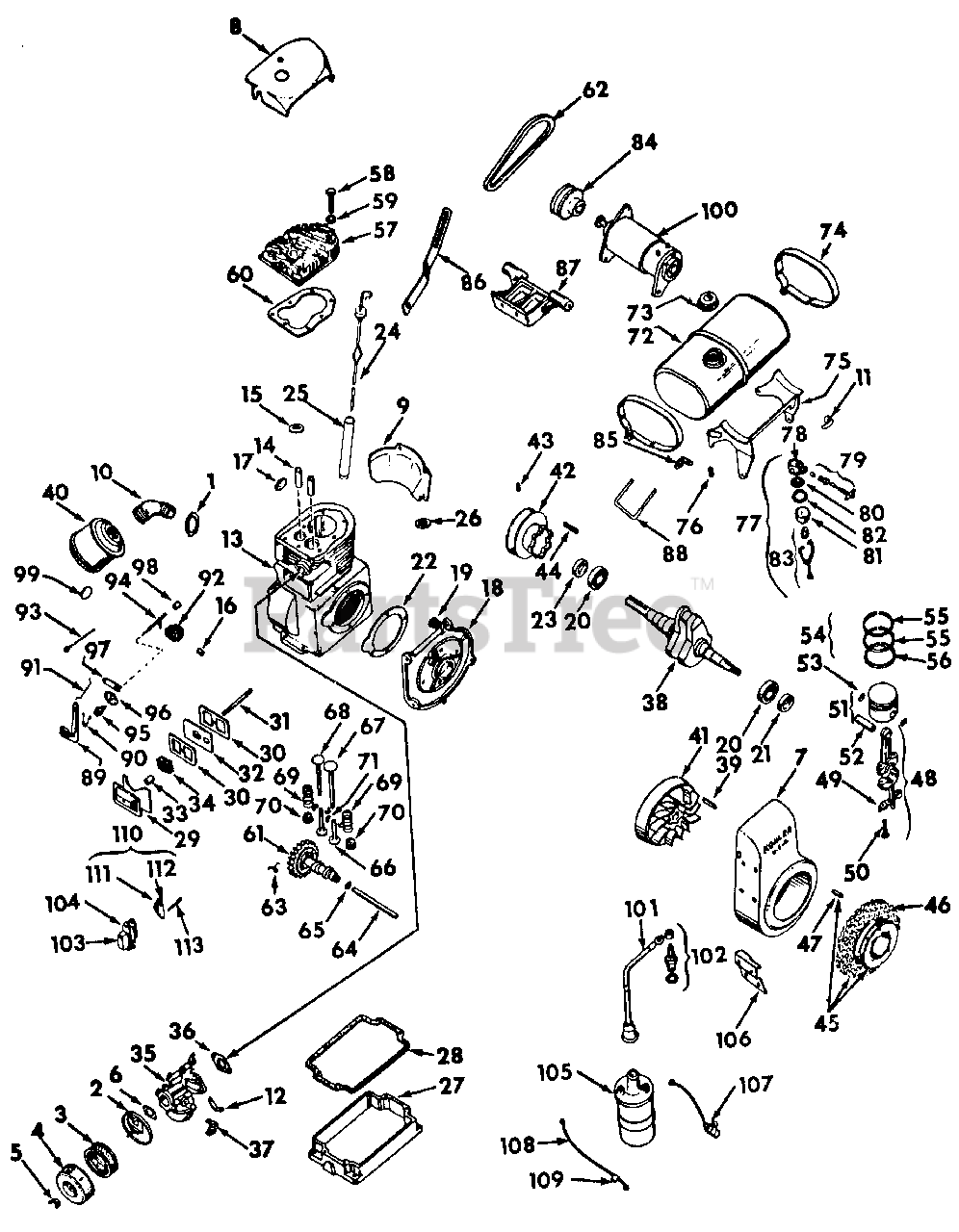

Engine-K161 Series-7 Hp Parts Diagram

  • Title

1

Cub Cadet 712-0250

Nut, Exhaust Muffler Elbow Lock

$

$

Not available

2

Cub Cadet KH-230838

Base, Air Cleaner

$

$

Not available

Screw, 8-32 X 3/8 Rd Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet IH-121841

Washer, No. 8 Med Lock

$

$

Not available

3

Cub Cadet IH-385163-R2

Element, Air Cleaner Filter
(Superseded to IH-385163-R3)

$

$

Not available

4

Cub Cadet KH-230839

Cover, Air Cleaner

$

$

Not available

~NLA

Washer, Packing

$

$

Not available

5

Cub Cadet KH-X-276-7

Nut, Air Cleaner Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

6

Cub Cadet KH-220537

Gasket, Air Cleaner

$

$

Not available

7

~NLA

Housing Assy, Blower

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/4 C-Z Slt Hex Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Slt Hex Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

8

Cub Cadet KH-234402

Baffle, Cylinder Head Air

$

$

Currently unavailable

9

Cub Cadet KH-230054

Baffle, Cylinder Air

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Hex Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

10

Cub Cadet KH-231820

Elbow, Exhaust Muffler
(Superseded to KH-231820-S)

$95.99

$

Usually ships in 2-5 days

0

11

Cub Cadet IH-263515-R91

Clip, Choke Cable

$

$

Currently unavailable

12

Cub Cadet KH-232683

Bracket, Choke

Note: (Also order clip KH-235603)

$

$

Not available

Cub Cadet KH-235603

Clip, Speed

$

$

Not available

13

Crankcase Assy

Note: (For service replacement order short block KH-41-522-38)

$

$

Not available

14

Cub Cadet KH-230007-S

Guide, Valve

$25.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-230170

Insert, Exhaust Valve

$

$

Not available

16

~NLA

Shaft, Governor

$

$

Not available

17

Cub Cadet IH-172548

Plug, 1-1/8 Expansion

$

$

Currently unavailable

18

~NLA

Plate, Crankcase Brg

$

$

Not available

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 1/2 X .062, Copper

$

$

Not available

19

~NLA

Plug, 5/8 Button, Crankcase Bearing Plate

$

$

Not available

20

Cub Cadet IH-ST213

Bearing, Crankcase Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

21

Cub Cadet KH-X-583-1

Seal, Crankcase Brg Plate Oil

Note: (Blower housing end)

$

$

Not available

22

Cub Cadet KH-230071

Gasket, Brg Plate

$

$

Not available

23

Cub Cadet KH-X-583-2

Seal, Crankcase Oil

Note: (Flywheel pulley end)

$

$

Not available

24

Cub Cadet KH-A-231725

Dipstick

$

$

Not available

25

Cub Cadet KH-231726

Tube, Oil Fill

$

$

Not available

26

Cub Cadet KH-230265

Insert, Intake Valve

$

$

Not available

27

Cub Cadet KH-41-199-08

Base, Oil Pan

$

$

Not available

Screw w/Spring Lock Washer, 5/16-18 X 1 C-Z Hex Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet KH-X-75-10

Plug, 3/8-18 Auto Sq-Hd, Filler & Drain
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

28

Cub Cadet KH-41-041-03

Gasket, Oil Pan Base

$

$

Not available

29

~NLA

Cover w/Filter, Breather

$

$

Not available

30

Cub Cadet KH-230048

Gasket, Breather

$

$

Not available

31

~NLA

Stud, Breather Cover

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Washer, 1/4 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

32

Cub Cadet KH-230066

Plate Assy, Breather

$

$

Not available

33

Cub Cadet KH-230046

Seal, Breather

$

$

Not available

34

Cub Cadet KH-231419

Filter, Breather
(Superseded to KH-231419-S)

$8.49

$

In Stock, Qty 6

0

35

Carburetor Assy

Note: (For components see list of parts under details of carburetor)

$

$

Not available

Cub Cadet KH-X-140-1

Screw w/Internal Tooth Lock Washer, 1/4-20 X 3/4 C-Z Hex Hd Cap

$

$

Not available

36

Cub Cadet KH-210223

Gasket, Carburetor

$

$

Not available

37

Cub Cadet KH-X-380-1

Connector, Fuel Tank
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

38

Cub Cadet KH-231510

Crankshaft

$

$

Not available

39

Cub Cadet 714-3016

Key, Crankshaft

$

$

Not available

40

Cub Cadet KH-230410

Muffler, Exhaust
(Superseded to KH-230410-S)

$

$

Not available

41

Cub Cadet KH-231276

Flywheel

$

$

Not available

42

Cub Cadet KH-231591

Pulley w/Clutch Drive Plate, Flywheel

$

$

Not available

43

Cub Cadet KH-X-60-50

Screw, Flywheel Pulley Set

$

$

Not available

44

Cub Cadet IH-452779-R1

Key, 1/4 X 7/8 Sq Parallel
(Superseded to IH-452779-R2)

$

$

Not available

45

Cub Cadet KH-41-071-04

Cup Assy, Flywheel Drive

$

$

Not available

Cub Cadet IH-121358

Nut, 5/8-18 C-Z Hex

$

$

Currently unavailable

Screw, 8-32 X 1/4 Hex Hd Tap

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 5/8 Lt Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 759-3287

Cup w/Pulley

$

$

Not available

46

~NLA

Screen, Drive Cup Grass

$

$

Not available

47

Cub Cadet IH-385293-R1

Pin, Flywheel Drive Cup
(Superseded to KH-X-56-7)

$

$

Not available

48

Cub Cadet KH-B-230039

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-B-230039

Rod Assy, Connecting, .010 U/S

$

$

Not available

49

Cub Cadet KH-230525

Lock, Connecting Rod Screw

$

$

Not available

50

~NLA

Screw, Connecting Rod

$

$

Not available

51

Cub Cadet KH-41-874-01

Piston Assy, Std

$

$

Not available

Cub Cadet KH-41-874-02

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-41-874-03

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-41-874-04

Piston Assy, .030 O/S

$

$

Not available

52

~NLA

Pin, Piston, Std

$

$

Not available

~NLA

Pin, Piston, .005 O/S

$

$

Not available

~NLA

Pin, Piston, .010 O/S

$

$

Not available

53

Cub Cadet KH-230004

Retainer, Piston Pin

$

$

Not available

54

Cub Cadet KH-231424

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-231425

Ring Set, Piston, .010 O/S

$

$

Not available

Cub Cadet KH-231426

Ring Set, Piston, .020 O/S

$

$

Not available

Cub Cadet KH-231427

Ring Set, Piston, .030 O/S

$

$

Not available

55

Ring, Compression

Note: (Not serviced separately, order ring set)

$

$

Not available

56

Ring, Oil Control

Note: (Not serviced separately, order ring set)

$

$

Not available

57

Cub Cadet KH-41-755-25

Head, Cylinder

$

$

Not available

58

Cub Cadet IH-454871

Screw, Cylinder Head
(Superseded to KH-41-086-02)

$

$

Not available

59

Cub Cadet KH-220534

Washer, Cylinder Head

$

$

Not available

60

Cub Cadet KH-41-041-10

Gasket, Cylinder Head

$

$

Not available

61

Cub Cadet KH-A-230155-S

Camshaft Assy

$

$

Not available

62

Cub Cadet IH-401960-R1

Belt, Motor Generator Drive

$17.99

$

In Stock, only 4 left!

0

63

Cub Cadet KH-47-089-01

Spring, Camshaft Actuating

$

$

Not available

64

Cub Cadet KH-41-380-03

Pin, Camshaft

$

$

Not available

65

Cub Cadet KH-230293

Shim, Camshaft, .005

$

$

Not available

Cub Cadet KH-230294

Shim, Camshaft, .010

$

$

Not available

66

~NLA

Tappet, Valve

$

$

Not available

67

Cub Cadet KH-230008

Valve, Intake

$

$

Not available

68

Cub Cadet KH-230710

Valve, Exhaust

$

$

Not available

69

Cub Cadet KH-230010

Spring, Valve

$

$

Not available

70

Cub Cadet KH-230011

Retainer, Valve Spring

$

$

Not available

71

Cub Cadet IH-46209D

Key, Valve Spring Retainer

Note: (Order in sets of two)

$

$

Currently unavailable

72

Cub Cadet KH-230164

Tank Assy, Fuel w/Filler Cap
(Superseded to KH-41-065-19-S)

$

$

Not available

73

Cub Cadet KH-236655

Cap, Fuel Filler

$

$

Not available

74

Cub Cadet KH-A-234167

Strap, Fuel Tank

$

$

Not available

Cub Cadet IH-20244-R1

Nut, 1/4-20 Esna Stop

$

$

Not available

Screw, 1/4-20 X 1-1/4 C-Z Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

75

Cub Cadet KH-234168

Bracket Assy, Fuel Tank

$

$

Not available

76

~NLA

Nipple, 1/8 X 3/4 C-Z Pipe

$

$

Not available

77

Cub Cadet KH-A-210101

Filter Assy, Fuel
(Superseded to KH-25-755-22)

$67.99

$

Usually ships in 2-5 days

0

78

Cub Cadet KH-210478

Body, Fuel Filter

$

$

Not available

79

Cub Cadet KH-A-210480

Valve Assy, Needle

$

$

Not available

80

Cub Cadet KH-210479

Screen, Filter

$

$

Not available

81

Cub Cadet KH-210467

Bowl, Fuel Filter Glass

$

$

Not available

82

Cub Cadet KH-210468

Gasket, Fuel Filter Bowl

$6.99

$

In Stock, Qty 5

0

83

Cub Cadet KH-A-210477

Bail Assy, Fuel Filter Bowl

$

$

Not available

84

Cub Cadet KH-231278

Pulley, Motor Generator Drive
(Superseded to KH-231278-S)

$72.99

$

Usually ships in 2-5 days

0

Cub Cadet 710-3038

Screw, 5/16-18 X 7/8 C-Z Hex Hd Cap

$4.99

$

In Stock, only 3 left!

0

Washer, 5/16 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet IH-20893-R1

Washer, 11/32 X 1 X 11 Ga C-Z

$

$

Currently unavailable

85

Cub Cadet KH-X-380-1

Connector, Fuel Tank
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

86

Cub Cadet KH-231273

Brace, Motor Generator Adjusting
(Superseded to KH-231273-S)

$63.99

$

Usually ships in 2-5 days

0

Cub Cadet 710-0376

Screw, 5/16-18 X 1 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 5/16 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet IH-280185-R1

Washer, 11/32 X 3/4 X .074 C-Z

$

$

Currently unavailable

Washer, 5/16 C-Z Int Tooth Lock

Note: Common Hardware Purchase Locally

$

$

Not available

87

~NLA

Bracket, Motor Generator Mounting

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

88

Cub Cadet IH-401968-R1

Line, Fuel Filter to Carburetor Fuel

$

$

Not available

89

Cub Cadet KH-232614

Lever, Governor

$

$

Not available

Cub Cadet KH-X-67-46

Screw, 8-32 X 1/4 C-Z Slt Hex Hd Tap

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Screw, 1/4-20 X 1 C-Z Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0463

Washer, 9/32 X 5/8 X .065 C-Z

$4.49

$

In Stock, Qty 12

0

90

Cub Cadet KH-232617

Spring, Governor

$

$

Not available

91

Cub Cadet KH-230078

Linkage, Governor

$

$

Not available

92

Cub Cadet KH-A-235743-S

Gear Assy, Governor

$79.99

$

Usually ships in 2-5 days

0

Washer, 13/32 X 3/4 X .031 C-Z

Note: Common Hardware Purchase Locally

$

$

Not available

93

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 15/32 X .031, Copper

$

$

Not available

94

Cub Cadet KH-230540-S

Shaft Assy, Governor Cross

$116.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-58

Washer, 7/32 X 3/8 X .031 C-Z

$

$

Not available

Cub Cadet KH-230540-S

Spacer

$116.99

$

Usually ships in 2-5 days

0

95

Cub Cadet KH-230476

Bushing, Cross Shaft
(Superseded to KH-230476-S)

$

$

Not available

96

Cub Cadet KH-230149

Disc, Governor Regulating

$

$

Not available

~NLA

Screw, 2 X 3/16 C-Z Rd Hd Blunt Metal Drive

$

$

Not available

97

Cub Cadet KH-230477

Bracket, Speed Control

$

$

Not available

98

Cub Cadet KH-234866

Bearing, Cross Shaft Needle

$

$

Not available

99

Cub Cadet IH-172548

Plug, 1-1/8 Expansion

$

$

Currently unavailable

100

Motor Generator

Note: (For components see list of parts under details of motor generator)

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Washer, 5/16 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet IH-20893

Washer, 11/32 X 1 X 11 Ga C-Z

$

$

Currently unavailable

101

Cub Cadet KH-238057

Kit, Hi-Tension Spark Plug, Cable Lead
(Superseded to KH-238057-S)

$

$

Not available

102

Cub Cadet IH-J8C

Plug, Spark (Champion)
(Superseded to 759-3339)

$3.49

$

In Stock, Qty 19

0

103

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

104

Cub Cadet KH-232535

Cover, Breaker
(Superseded to KH-232535-S)

$

$

Not available

Cub Cadet KH-X-131-1

Screw w/Internal Tooth Lock Washer, 10-24 X 3/8 C-Z Slt Rd Hd Mach

$

$

Not available

105

Cub Cadet KH-231281

Coil, Ignition
(Superseded to KH-41-519-21-S)

$149.99

$

In Stock, only 1 left!

0

Screw w/Spring Lock Washer, 1/4-20 X 13/16 C-Z Slt Hex Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0173

Washer, 17/64 X 3/4 X .062 C-Z

$4.49

$

In Stock, Qty 20+

0

106

~NLA

Bracket, Coil Mounting

$

$

Not available

107

Cub Cadet IH-62188-C1

Condenser, Ignition Coil
(Superseded to KH-230722-S)

$31.99

$

Usually ships in 2-5 days

0

108

Cub Cadet KH-A-230371

Cable Assy, Condenser to Breaker

$

$

Not available

109

Cub Cadet KH-230249

Clip, Condenser to Breaker Cable

$

$

Not available

110

Cub Cadet KH-47-150-03

Bracket & Breaker Assy

$

$

Not available

111

Cub Cadet IH-62189-C1

Breaker Point Set
(Superseded to KH-47-150-03)

$

$

Not available

112

Bracket, Point Breaker

Note: (Not serviced separately, order KH-47-150-03)

$

$

Not available

Screw w/Washer, 8-32 X 1/4 Znd Slt Pan Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

113

Cub Cadet KH-41-411-01

Rod, Breaker

$

$

Not available
