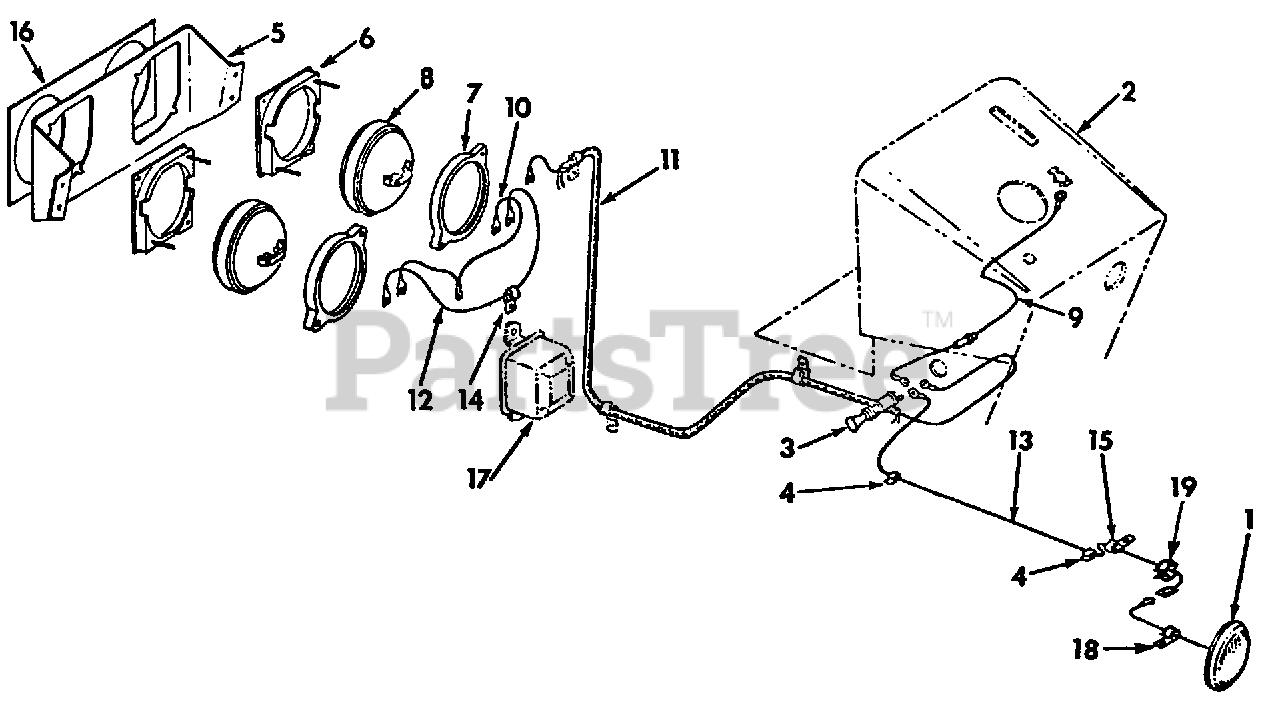

73 (2050036U) - Cub Cadet Garden Tractor Electric Lighting Parts Diagram

Garden Tractor

Electric Lighting Parts Diagram

  • Title

1

Cub Cadet IH-545616-R1

Taillight Assy

Note: (Only serviceable items are)

$

$

Not available

Cub Cadet IH-23713-R1

Lamp, No. 1889, 14 Volt

$

$

Not available

Cub Cadet IH-545616-R1

Lens, Taillight

$

$

Not available

Screw, 8-32 X 5/8 Znd Pan Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, No. 8 Znd Ext Tooth Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 712-0142

Nut, 8-32 Znd Hex Mach Screw

$4.49

$

In Stock, Qty 10

0

2

Pedestal Assy

Note: (Refer to hood, grille & frame listing)

$

$

Not available

3

Cub Cadet IH-62801-DC

Switch Assy, Lighting
(Superseded to IH-62801-DCP)

$

$

Not available

~NLA

Spacer, Lighting Switch

$

$

Not available

4

Cub Cadet 726-3021

Clip, Taillight Cable

$

$

Not available

Screw, 3/8-16 X 7/8 Znd Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

5

~NLA

Panel Assy, Headlight Mounting

$

$

Not available

6

Rim, Headlight

Note: (Order two rims IH-107277-C1 & panel IH-1254622-C1)

$

$

Not available

Cub Cadet IH-529860-R1

Screw, 10-32 X 5/8 Slt Pan Hd Mach

$

$

Not available

Cub Cadet 712-0349

Nut, 10-32 Hex

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-138479

Washer, No. 10 Ext Tooth Lock

$

$

Not available

7

Cub Cadet IH-389746-R1

Ring, Headlight Clamp
(Superseded to IH-389746-R2)

$

$

Not available

Nut, 10-32 C-Z Wing

Note: Common Hardware Purchase Locally

$

$

Not available

8

Cub Cadet 725-0222

Unit Assy, Sealed Beam Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

9

Cub Cadet IH-402990-R1

Cable Assy, Lighting Switch to Charge Indicator

$

$

Currently unavailable

Cub Cadet IH-120114

Fuse, Cartridge Type AGC 10

$

$

Not available

10

~NLA

Cable Assy, Headlight to Ground

$

$

Not available

11

Harness Assy, Cable

Note: (Not serviced separately, order wiring package IH-59321-C91)

$

$

Not available

12

Cub Cadet IH-404404-R1

Cable Assy, RH Headlight to LH Headlight

$

$

Currently unavailable

13

Cub Cadet IH-529857-R1

Cable Assy, Lighting Switch to Taillight

$

$

Currently unavailable

14

Cub Cadet 726-3025

Clip, RH Headlight to LH Headlight Cable
(Superseded to 726-0272)

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-3025

Clip, Lighting Switch to Tail- light Cable
(Superseded to 726-0272)

$7.49

$

Usually ships in 3-6 days

0

16

~NLA

Product Graphic, Headlight Panel

$

$

Not available

17

Regulator Assy, Voltage

Note: (Refer to ignition and starting listing)

$

$

Not available

18

Cub Cadet 726-3015

Clip, Taillight
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

19

~NLA

Clip, Cable

$

$

Not available

Cub Cadet IH-59321-C91

Package, Wiring

$

$

Not available

Cub Cadet IH-404379-R4

Harness Assy
(Superseded to IH-59321-C91)

$

$

Not available

Cub Cadet IH-370383-R1

Clip

$

$

Not available
