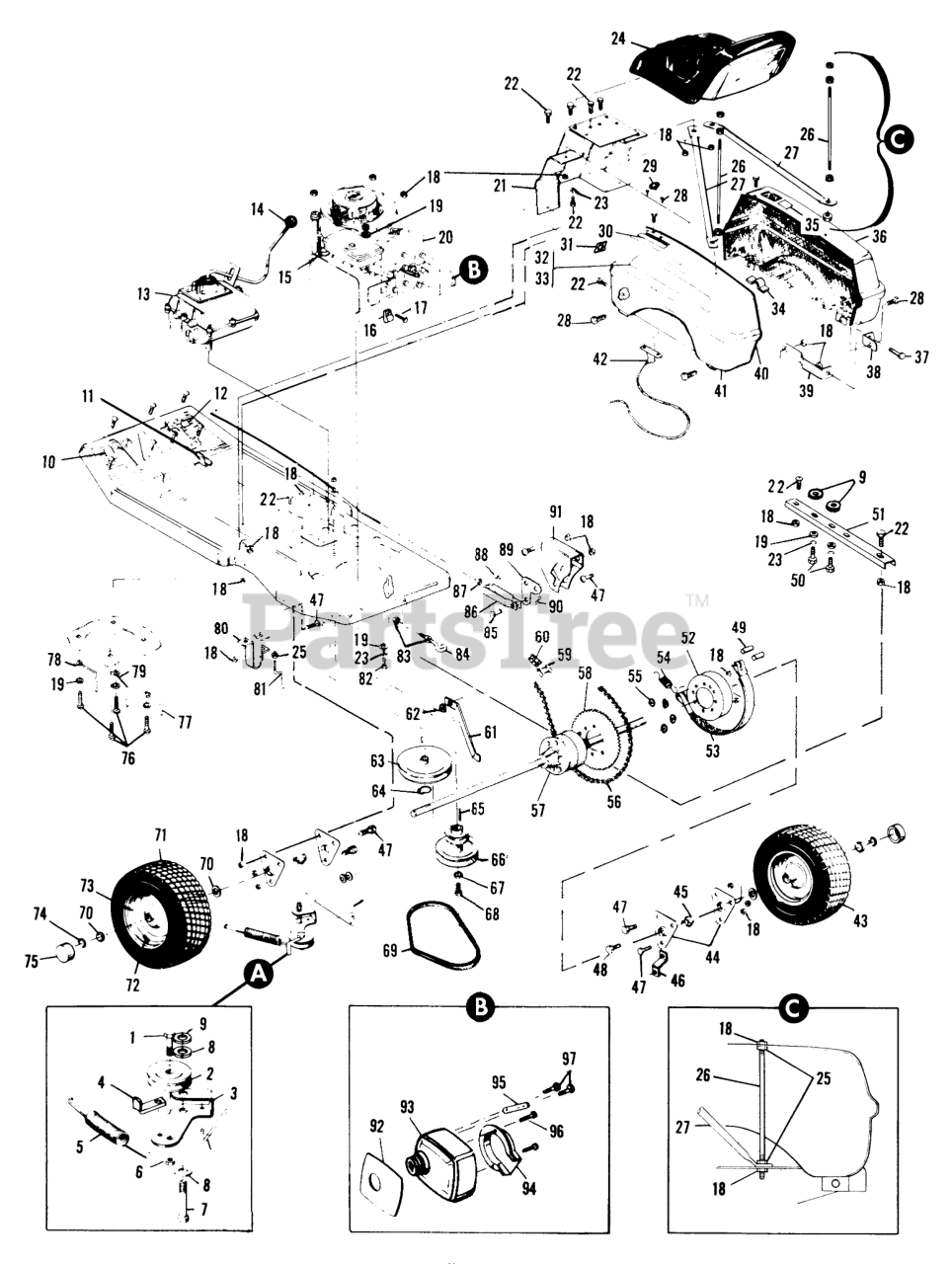

73-05BF01 (A-60) - Toro 26" Rear-Engine Riding Mower (1977) RIDING MOWER Parts Diagram

26" Rear-Engine Riding Mower

RIDING MOWER Parts Diagram

  • Title

1

Toro 9080364

Screw-Cap, Hex. Hd.
(Superseded to 323-8)

Note: Standard Hardware Items-May Be Purchased Locally.

$1.49

$

In Stock, Qty 20+

0

2

Toro 225050

Idler Pulley

$

$

Not available

3

Toro 225631

Idler Arm

$

$

Currently unavailable

4

Toro 225076

Arm, Idler

$

$

Not available

5

Toro 225051

Spring, Brake

$

$

Not available

6

Toro 915113-6

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

7

Toro 225027

Shoulder Bolt

$

$

Not available

8

Toro 225005

Washer

$

$

Not available

9

Toro 225001

Washer

$

$

Not available

10

Toro 225453

Decal, Clutch

$

$

Not available

11

Toro 225624

Decal, Parking Brake

$

$

Currently unavailable

12

Toro 225454

Decal, Brake

$

$

Currently unavailable

13

Toro 225608

Transmission Assembly Complete

$

$

Currently unavailable

14

Toro 225188

Knob

$

$

Not available

15

Toro 225232

Gas Gauge

$

$

Not available

16

Toro 225040

Clip, Throttle Cable

$

$

Not available

17

Toro 911265-4

Screw, Hex Hd, No.10-32 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

18

Toro 915112-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

19

Toro 920210-4

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

20

Toro 225012

Engine

$

$

Currently unavailable

21

Toro 225616

Support, Seat

$

$

Currently unavailable

22

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

23

Toro 920082-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

24

Toro 225412

Seat

$

$

Not available

25

Toro 915972-4

Nut 5/16-18 Keps

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

26

Toro 225614

Rod, Fender Reinforcing

$

$

Currently unavailable

27

Toro 225326

Strut, Seat Support

$

$

Not available

28

Toro 926487-4

Screw, Taptite, 1/4-20 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

29

Toro 225066

Knob, Throttle Control

$

$

Not available

30

Toro 225451

Decal, Throttle

$

$

Not available

31

Toro 225623

Decal, lgnition

$

$

Currently unavailable

32

Toro 225444

Decal, Body, R.H.

$

$

Not available

33

Toro 225445

Decal, Body, L.H.

$

$

Currently unavailable

34

Toro 225103

Press Clip

$

$

Not available

35

Toro 225450

Decal, Shift Pattern

$

$

Not available

36

Toro 225611

Fender, Right

$

$

Currently unavailable

37

Toro 908022-4

Hex Cap Screw

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

38

Toro 225323

Bracket, Chain Adjust

$

$

Not available

39

Toro 225413

Strap, Chain Adjust

$

$

Not available

40

Toro 225322

Edging

$

$

Not available

41

Toro 225612

Fender, Left

$

$

Currently unavailable

42

Toro 225284

Control, Throttle

$

$

Not available

43

Toro 225423

Wheel & Tire Assembly

$

$

Not available

44

Toro 225119

Plate, Bearing Retainer

$

$

Not available

45

Toro 225049

Bearing, Rear Axle

$

$

Not available

46

Toro 225358

Retainer, Brake Band

$

$

Not available

47

Toro 9000364

Carriage Bolt, 5/16-18 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

48

Toro 900062-4

Bolt-3/8-16 x 3/4

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

49

Toro 933243

SPIROL PIN 3/8X1 3/4

$

$

Not available

50

Toro 9080194

Screw-Cap Hex. Hd.
(Superseded to 322-5)

Note: Standard Hardware Items-May Be Purchased Locally.

$0.99

$

In Stock, Qty 20+

0

51

Toro 225613

Channel Stiffner

$

$

Currently unavailable

52

Toro 225330

Drum, Brake

$

$

Not available

53

Toro 225277

Brake Band Assembly

$

$

Not available

54

Toro 225059

Brake Return Spring

$

$

Not available

55

Toro 225601

Spacer

$

$

Currently unavailable

56

Toro 225337

Chain Assy (With Link)

$

$

Not available

57

Toro 225609

Differential, Peerless Model 172A (See Warranty, Page 2)

$

$

Currently unavailable

58

Toro 225298

Sprocket, 40 Tooth (Differential Part)

$

$

Not available

59

Toro 225019

Connector Link (Only)

$

$

Not available

60

Toro 225033

Link, Offset

$

$

Not available

61

Toro 225404

Belt Guide

$

$

Not available

62

Toro 915111-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

63

Toro 225057

Bracket-Link

$

$

Not available

64

Toro 225025

Snap Ring

$

$

Not available

65

Toro 225046

Key, Square, 1/4 X 1/4 X 1 1/2 In.

$

$

Not available

66

Toro 225286

Pulley, Engine

$

$

Not available

67

Toro 9200834

Lockwasher, Split, 3/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

68

Toro 908183-4

Screw, Hex Hd, 3/8-24 x 1 In.

$

$

Currently unavailable

69

Toro 225282

"V" Belt, 4241

$

$

Not available

70

Toro 225000

Flatwasher

$

$

Not available

71

Toro 225296

Tire, 4.10-3.50 x 6

$

$

Not available

72

Toro 225031

Valve Stem

$

$

Not available

72

Toro 803689

Tag, Warranty (Not Illustr.)

$

$

Currently unavailable

73

Toro 225427

Wheel

$

$

Not available

74

Toro 225054

"E" Ring

$

$

Not available

75

Toro 225088

Hub Cap

$

$

Not available

76

Toro 908021-4

Bolt 5/16-18 x 1/2

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

77

Toro 225355

Belt Guide

$

$

Not available

78

Toro 225339

Belt Guide

$

$

Not available

79

Toro 225359

Belt Guide

$

$

Not available

80

Toro 225362

Bracket, Clutch Spring Assy

$

$

Not available

81

Toro 225403

Belt Guide

$

$

Not available

82

Toro 9080324

Screw, Hex Hd, 5/16-18 x 3/4 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

83

Toro 915113-4

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

84

Toro 225267

Eyebolt, Trailer Hitch

$

$

Not available

85

Toro 9321214

Pin

$

$

Currently unavailable

86

Toro 225633

Clevis

$

$

Currently unavailable

87

Toro 9159684

Nut, Hex, 1/4-20 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

88

Toro 9151824

Nut, Square, 1/4-20 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

89

Toro 225331

Brake Lever

$

$

Not available

90

Toro 9347614

Cotter Pin, 3/32 x 3/4 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

91

Toro 225402

Brake Cam Plate Assy

$

$

Not available

92

Toro 225340

Heat Shield (Engine Part)

$

$

Currently unavailable

93

Toro 225341

Muffler, Lo-Tone

$

$

Not available

94

Toro 225344

Deflector, Muffler

$

$

Currently unavailable

95

Toro 225342

Lock Strip, Muffler Mounting

$

$

Not available

96

Toro 225345

Screw

$

$

Currently unavailable

97

Toro 225343

Screw

$

$

Currently unavailable
