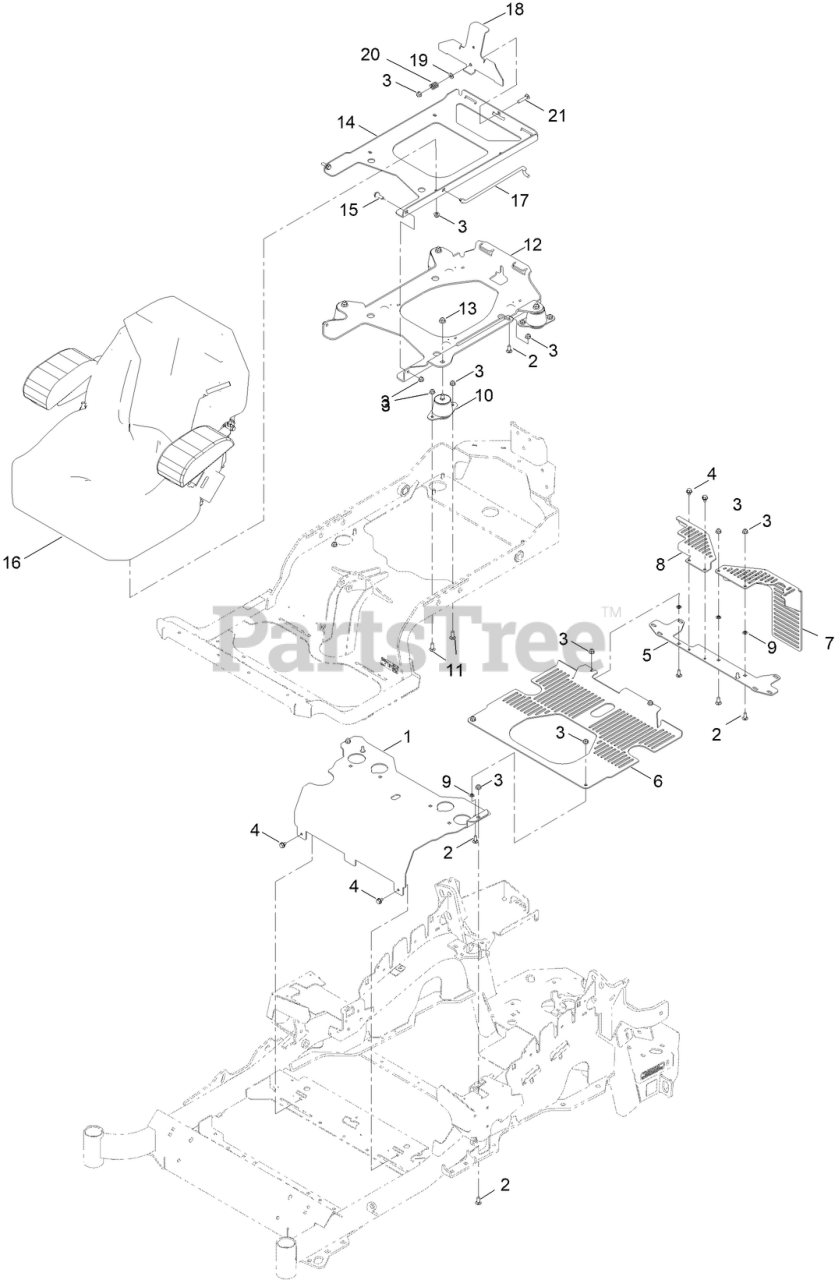

72969 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 412900000 - 999999999) Seat Mounting Assembly Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

Seat Mounting Assembly Parts Diagram

  • Title

1

Toro 116-2130-03

PANEL-FRONT, SEAT MOUNT

$

$

Not available

2

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

5

Toro 133-1885-03

PLATE-MOUNTING

$34.99

$

Usually ships in 3-6 days

0

6

Toro 133-1833-03

GUARD-HYDRO

$202.99

$

Usually ships in 3-6 days

0

7

Toro 133-1835-03

GUARD-HYDRO, LEFT REAR

$134.99

$

Usually ships in 3-6 days

0

8

Toro 133-1836-03

GUARD-HYDRO, RIGHT REAR

$82.99

$

Usually ships in 3-6 days

0

9

Toro 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

10

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

11

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

12

Toro 131-6324-03

PLATE-SUPPORT, ISO SEAT

$212.99

$

Usually ships in 3-6 days

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 116-3859-03

PLATE-FRAME, SEAT

$126.99

$

Usually ships in 3-6 days

0

15

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

16

Toro 147-4983

SEAT-STANDARD

$937.99

$

Usually ships in 0 days

0

17

Toro 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

18

Toro 132-5088-03

PLATE-LATCH,SEAT

$37.99

$

Usually ships in 3-6 days

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

21

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0
