72969 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 412900000 - 999999999) Frame Assembly Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

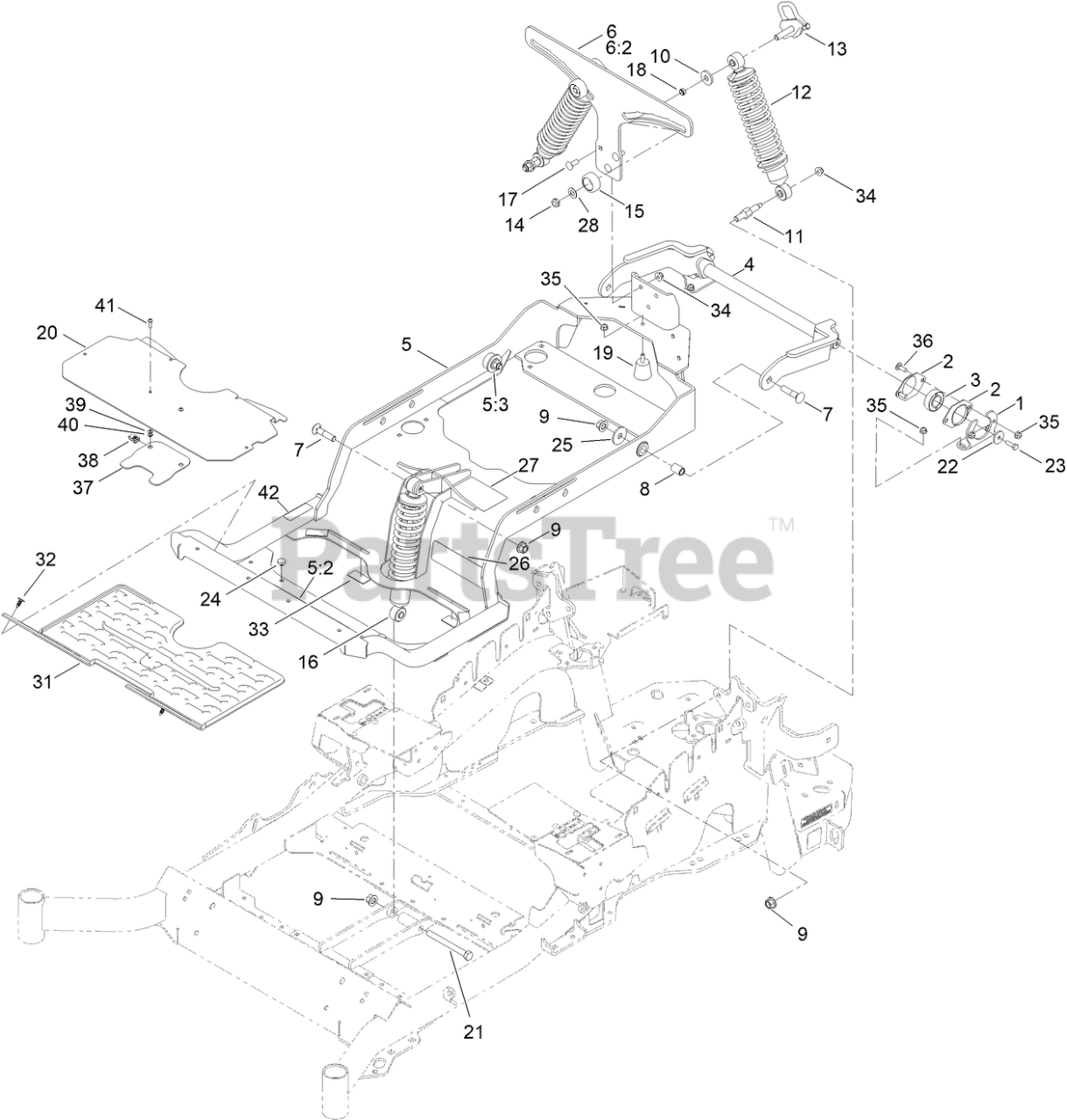

Frame Assembly Parts Diagram

  • Title

1

Toro 127-6759-03

BRACKET-BEARING

$23.99

$

Usually ships in 3-6 days

0

2

Toro 127-6743

HOUSING-BEARING, FLANGE

$5.49

$

Usually ships in 3-6 days

0

3

Toro 1-653346

BEARING

$71.99

$

In Stock, Qty 7

0

4

Toro 127-6754-03

ARM-TRAILING

$270.99

$

Usually ships in 3-6 days

0

5

Toro 140-4868

SUBFRAME ASM

$1132.99

$

Usually ships in 3-6 days

0

5:2

Toro 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

5:3

Toro 127-6745

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

6

Toro 144-2602

BRACKET-MOUNTING

$102.99

$

Usually ships in 3-6 days

0

6:2

Toro 132-5067

DECAL-ADJUSTMENT, RIDE

$25.99

$

Usually ships in 3-6 days

0

7

Toro 127-6768

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

8

Toro 127-6751

SPACER-ALUMINUM

$9.49

$

Usually ships in 3-6 days

0

9

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 131-4699

WASHER-PLASTIC

$5.49

$

Usually ships in 3-6 days

0

11

Toro 131-6348

BOLT-SHOULDER

$15.99

$

Usually ships in 3-6 days

0

12

Toro 133-1815

SHOCK/SPRING ASM

$131.99

$

In Stock, only 2 left!

0

13

Toro 136-9017

CAM LOCK ASM

$38.99

$

Usually ships in 3-6 days

0

14

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

15

Toro 136-5636

KNOB-LOCK, CAM

$12.99

$

Usually ships in 3-6 days

0

16

Toro 136-1719

SHOCK ASM-FRONT

$131.99

$

Usually ships in 3-6 days

0

16

Toro 136-8993

SHOCK/SPRING ASM

$174.99

$

Usually ships in 3-6 days

0

17

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Toro 133-5109

BEARING-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

19

Toro 132-5058

BUMPER-RUBBER

$12.99

$

Usually ships in 3-6 days

0

20

Toro 144-0381-01

FLOORPAN

$39.99

$

Usually ships in 3-6 days

0

21

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

22

Toro 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 12

0

23

Toro 116-0648

SCREW-HH, THREAD LOCKING

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

25

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

0

26

Toro 144-0437

DECAL-MYRIDE

$14.99

$

Usually ships in 3-6 days

0

27

Toro 125-9383

DECAL-SERVICE AID

$26.99

$

Usually ships in 3-6 days

0

28

Toro 3-6803

WASHER-ADJUSTING

$8.49

$

Usually ships in 3-6 days

0

31

Toro 144-0355

FLOORMAT-MYRIDE

$46.99

$

Usually ships in 3-6 days

0

32

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 16

0

33

Toro 130-0733

PAD-RUBBER

$1.99

$

Usually ships in 3-6 days

0

34

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

36

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

37

Toro 119-0395-03

ADAPTER-CAPTIVE

$22.99

$

Usually ships in 3-6 days

0

38

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

39

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

40

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 20+

0

41

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 9

0

42

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0
