72969 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 412900000 - 999999999) Deck Assembly Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

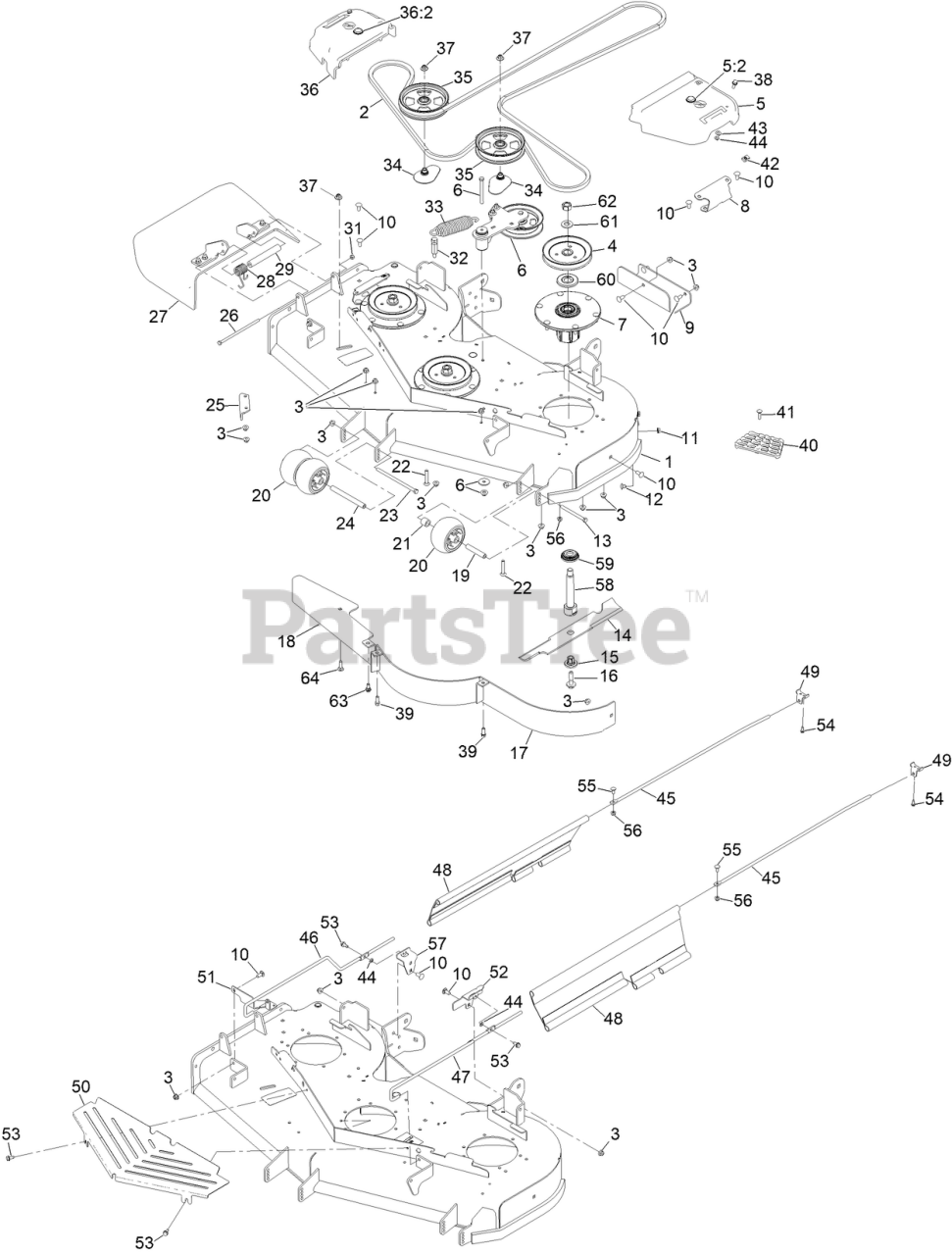

Deck Assembly Parts Diagram

  • Title

1

Toro 140-1168

DECK DECAL ASM

$2393.99

$

Usually ships in 3-6 days

0

2

Toro 115-7426

BELT-V

$148.99

$

In Stock, only 1 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 138-6058

SHEAVE-BLADE DRIVE 6.50

$22.99

$

Usually ships in 3-6 days

0

5

Toro 117-7814

LH BELT COVER ASM

$42.99

$

Usually ships in 3-6 days

0

5:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

6

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

7

Toro 137-9780

SPINDLE ASM

$147.99

$

In Stock, only 2 left!

0

8

Toro 114-5881-01

BRACKET-COVER, BELT

$83.99

$

Usually ships in 3-6 days

0

9

Toro 121-7975-01

PLATE-SKID

$58.99

$

Usually ships in 3-6 days

0

10

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 108-5387

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

13

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

14

Toro 140-1242

BLADE-FLOW, HIGH

$28.99

$

Usually ships in 3-6 days

0

15

Toro 137-9787

BUSHING-HEX

$7.99

$

In Stock, only 3 left!

0

16

Toro 109-9220

SCREW-SEMS

$8.49

$

In Stock, Qty 20+

0

17

Toro 115-7461-01

BAFFLE ASM

$236.99

$

Usually ships in 3-6 days

0

18

Toro 138-6052-01

PLATE-BAFFLE, FORMED

$99.99

$

Usually ships in 3-6 days

0

19

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

20

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

21

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

22

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

23

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

24

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

25

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

26

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

27

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

Usually ships in 3-6 days

0

28

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

29

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

33

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

34

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

35

Toro 136-5404

PULLEY-IDLER, FLAT

$60.99

$

In Stock, only 1 left!

0

36

Toro 117-7813

RH BELT COVER ASM

$42.99

$

Usually ships in 3-6 days

0

36:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

37

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

39

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

40

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

41

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

42

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

43

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

44

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

45

Toro 131-3987

ROD-SUPPORT, UPPER

$32.99

$

Usually ships in 3-6 days

0

46

Toro 131-4191

ROD-SUPPORT, LOWER (RH)

$51.99

$

Usually ships in 3-6 days

0

47

Toro 131-4192

ROD-SUPPORT, LOWER (LH)

$51.99

$

Usually ships in 3-6 days

0

48

Toro 131-7652

GUARD-SIDE

$27.99

$

Usually ships in 3-6 days

0

49

Toro 131-4194-03

BRACKET-MOUNTING, UPPER

$31.99

$

Usually ships in 3-6 days

0

50

Toro 133-1837-03

SHIELD-FRONT

$120.99

$

Usually ships in 3-6 days

0

51

Toro 131-4195-03

BRACKET-MOUNTING, FRONT

$36.99

$

Usually ships in 3-6 days

0

52

Toro 131-4196-03

BRACKET-MOUNTING, REAR (LH)

$47.99

$

Usually ships in 3-6 days

0

53

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

54

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

55

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

56

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

57

Toro 132-0920-03

BRACKET-MOUNTING, REAR (RH)

$41.99

$

Usually ships in 3-6 days

0

58

138-6045

SHAFT-SPINDLE

$

$

Not available

59

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, only 2 left!

0

60

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

61

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

62

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

63

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

64

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0
