72961 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 409035563 - 412413840) Hydraulic Drive Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

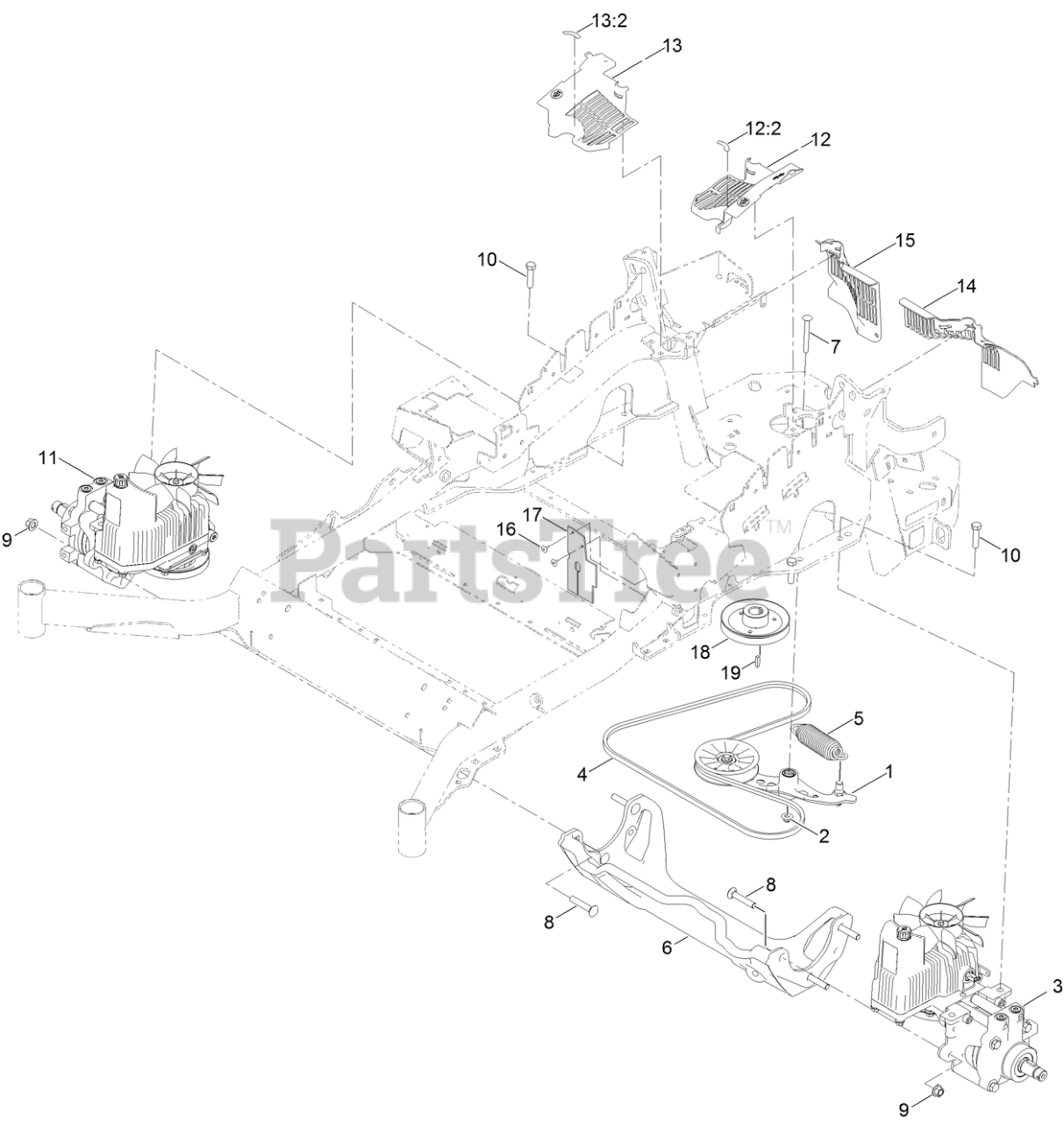

Hydraulic Drive Assembly Parts Diagram

  • Title

1

Toro 116-1255

PUMP IDLER ASM

$230.99

$

In Stock, Qty 11

0

2

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 135-7907

HYDRO-LH

$3754.99

$

Usually ships in 3-6 days

0

4

Toro 126-9835

BELT-V

$47.99

$

In Stock, Qty 20+

0

5

Toro 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

6

Toro 116-7558

CRADLE-HYDRO

$227.99

$

In Stock, only 1 left!

0

7

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$7.99

$

In Stock, only 2 left!

0

8

Toro 126-0095

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

9

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 16

0

11

Toro 135-7908

HYDRO-RH

$3754.99

$

Usually ships in 3-6 days

0

12

Toro 116-0170

LH HYDRO GUARD ASM

$90.99

$

In Stock, only 3 left!

0

12:2

Toro 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

13

Toro 116-0171

RH HYDRO GUARD ASM

$90.99

$

Usually ships in 3-6 days

0

13:2

Toro 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

14

Toro 109-9709

GUARD-HYDRO REAR, LH TRIM

$20.99

$

Usually ships in 3-6 days

0

15

Toro 109-9058

GUARD-HYDRO, REAR (RH)

$26.99

$

In Stock, only 2 left!

0

16

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

17

Toro 116-2362

DEFLECTOR-AIR FLOW

$6.99

$

Usually ships in 3-6 days

0

18

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$54.99

$

In Stock, Qty 8

0

19

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 19

0

99

Toro 114-4713

HYPR-OIL 500 (QUART)

Note: Not illustrated

$16.99

$

In Stock, Qty 15

0

99

Toro 114-4714

HYPR-OIL 500 (GALLON)

Note: Not illustrated

$60.99

$

In Stock, Qty 8

0

99

Toro 114-4715

HYPR-OIL 500-5 (5 GALLON)

Note: Not illustrated

$313.99

$

Usually ships in 3-6 days

0

99

Toro 117-0390

FILTER-HYDRO

Note: Not illustrated

$60.99

$

In Stock, Qty 20+

0
