72961 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 409035563 - 412413840) Electrical Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

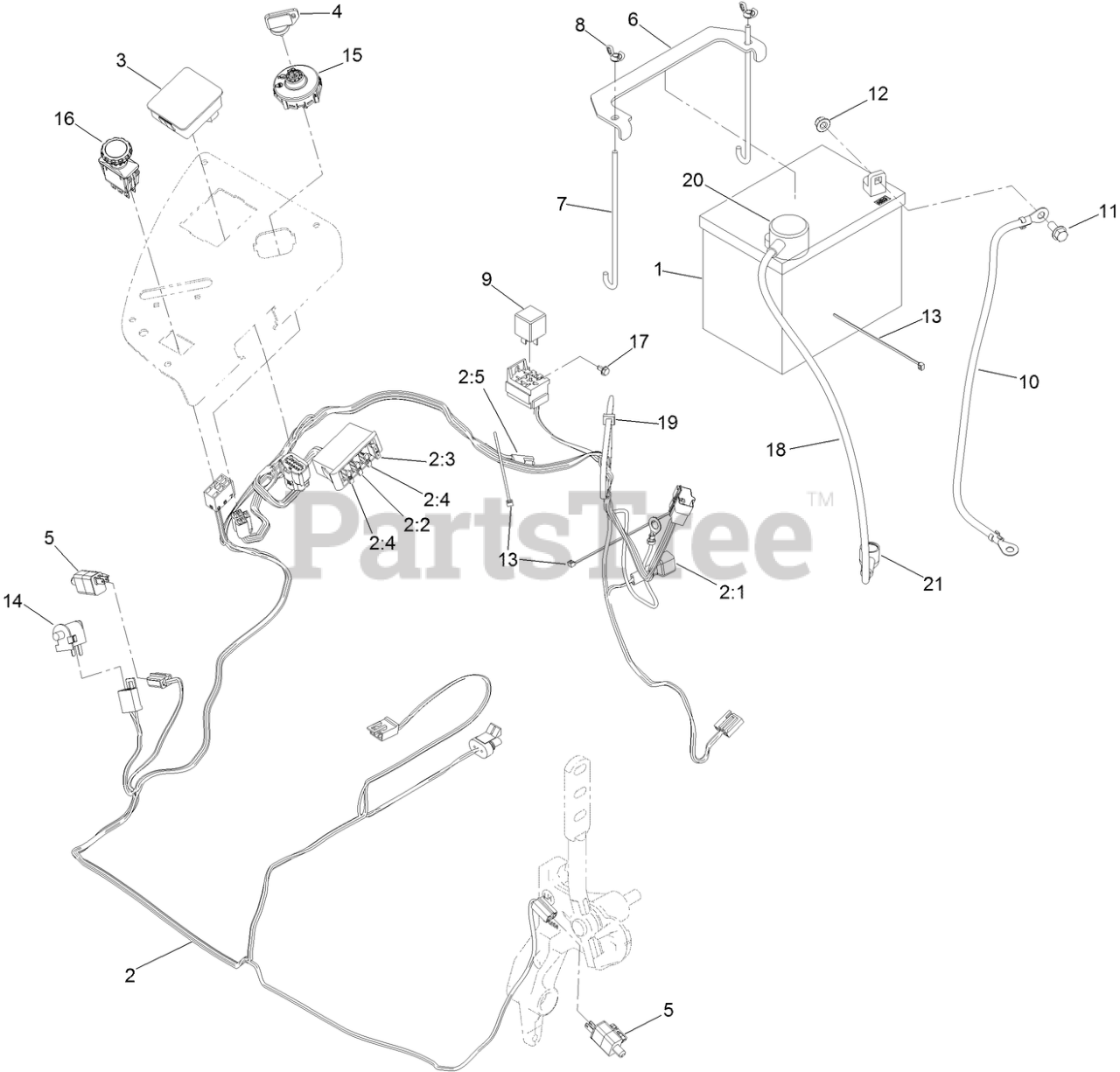

Electrical Assembly Parts Diagram

  • Title
1

Toro 104-8162

BATTERY-DRY

$

$

Not available

2

Toro 116-6009

HARNESS-WIRE, MAIN

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$258.99

$

In Stock, only 2 left!

0

2:1

$64.99

$

In Stock, Qty 5

0

2:2

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

2:3

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

2:4

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

2:5

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

3

Toro 117-3882

FUEL/HOUR METER ASM

$157.99

$

Usually ships in 3-6 days

0

4

Toro 1-603511

KEYS-IGNITION (SPARE PAIR)

$2.49

$

In Stock, Qty 20+

0

4

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

5

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

6

Toro 116-0042-03

STRAP-TIE DOWN, BATTERY

$22.99

$

In Stock, only 2 left!

0

7

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 11

0

8

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

9

$23.99

$

In Stock, Qty 6

0

10

Toro 114-1218

CABLE-BATTERY, NEGATIVE

$23.99

$

In Stock, only 1 left!

0

11

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

14

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

15

Toro 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 20+

0

16

Toro 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$68.99

$

In Stock, Qty 9

0

17

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

18

Toro 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

In Stock, only 1 left!

0

19

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

20

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

21

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0
