72952 (3000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 406397859 - 999999999) Deck Assembly Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

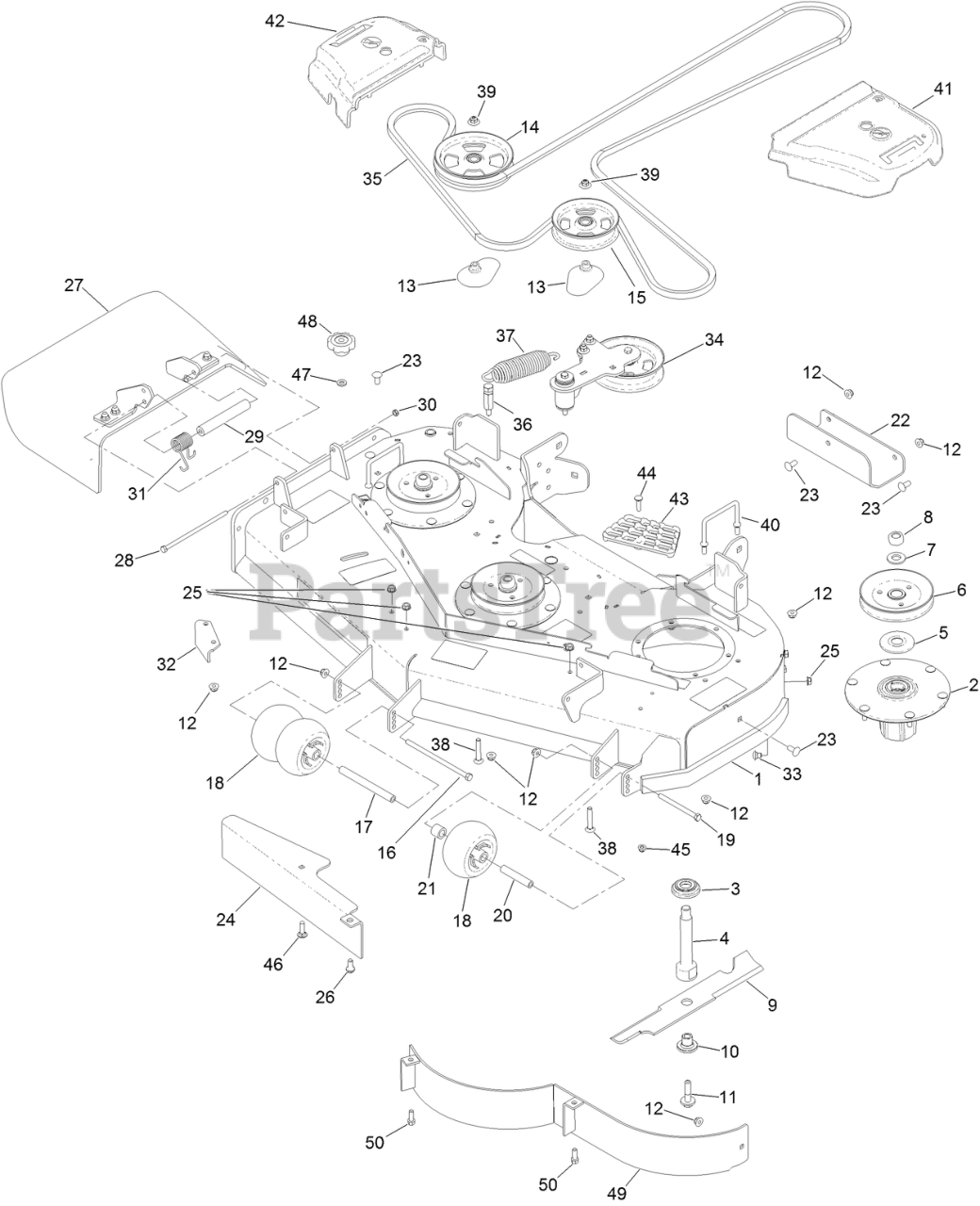

Deck Assembly Parts Diagram

  • Title

1

Toro 140-1167

DECK DECAL ASM

$2393.99

$

Usually ships in 3-6 days

0

2

Toro 137-9780

SPINDLE ASM

$147.99

$

In Stock, only 2 left!

0

3

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, only 2 left!

0

4

138-6045

SHAFT-SPINDLE

$

$

Not available

5

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

6

Toro 138-6065

SHEAVE,BLADE DRIVE 5.91

$22.99

$

In Stock, only 1 left!

0

7

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

8

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

9

Toro 140-1243

BLADE-16.50 HIGH FLOW

$33.99

$

In Stock, Qty 6

0

10

Toro 137-9787

BUSHING-HEX

$7.99

$

In Stock, only 3 left!

0

11

Toro 109-9220

SCREW-SEMS

$8.49

$

In Stock, Qty 20+

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

14

Toro 136-5404

PULLEY-IDLER, FLAT

$60.99

$

In Stock, only 1 left!

0

15

Toro 136-5405

PULLEY-IDLER,FLAT
(Superseded to 136-5405)

$48.99

$

In Stock, only 1 left!

0

16

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

17

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

18

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

19

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

20

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

21

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

22

Toro 121-7975-01

PLATE-SKID

$58.99

$

Usually ships in 3-6 days

0

23

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

24

Toro 138-6052-01

PLATE-BAFFLE, FORMED

$99.99

$

Usually ships in 3-6 days

0

25

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

26

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

27

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

Usually ships in 3-6 days

0

28

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

29

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

30

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

31

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

32

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

33

Toro 108-5387

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

34

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

35

Toro 115-7407

BELT-V

$166.99

$

In Stock, only 2 left!

0

36

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

37

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

38

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

39

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

40

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

41

Toro 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

42

Toro 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

43

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

44

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

45

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

46

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

47

Toro 100-4852

WASHER-HARDENED

$5.49

$

Usually ships in 3-6 days

0

48

Toro 109-1092

KNOB

$8.49

$

Usually ships in 3-6 days

0

49

Toro 114-5862-01

BAFFLE

$178.99

$

Usually ships in 3-6 days

0

50

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0
