72949 (3000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 414086324 - 999999999) Fuel System Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

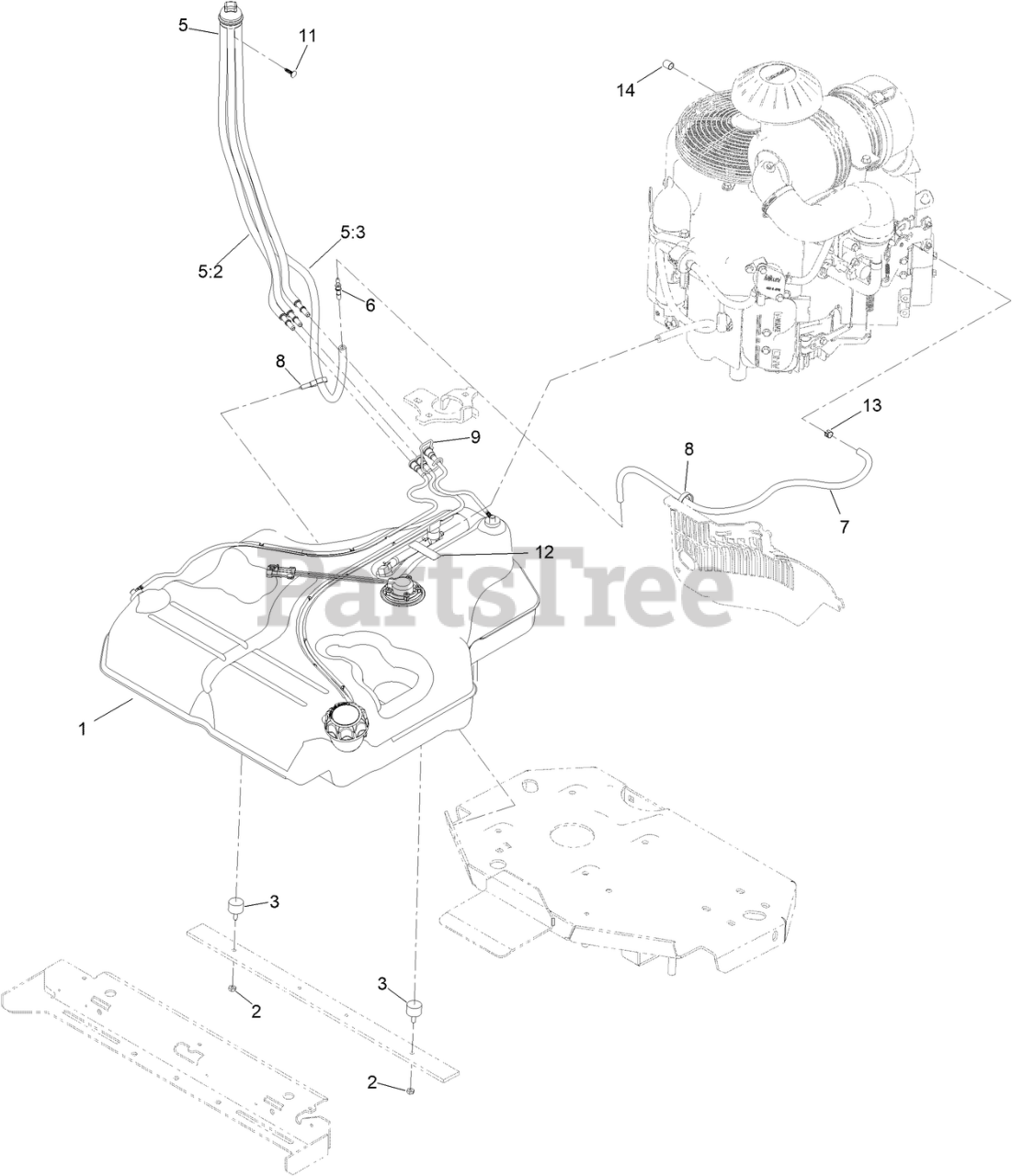

Fuel System Assembly Parts Diagram

  • Title

1

Toro 135-0643

FUEL TANK ASM

$702.99

$

Usually ships in 3-6 days

0

2

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

5

Toro 127-0583

FUEL MANIFOLD VENT ASM

$70.99

$

Usually ships in 3-6 days

0

5:2

Toro 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

5:3

Toro 108-5376

HOSE-FUEL

$43.99

$

In Stock, only 1 left!

0

6

Toro 135-5678

BARB-FUEL

$1.99

$

Usually ships in 3-6 days

0

7

Toro 140-4956

HOSE-FUEL

$28.99

$

Usually ships in 3-6 days

0

8

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

9

Toro 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0

11

Toro 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

12

Toro 135-6603

DECAL-STRIP BLACK

$2.99

$

Usually ships in 3-6 days

0

13

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

14

Toro 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0
