72947 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 414116642) Frame Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

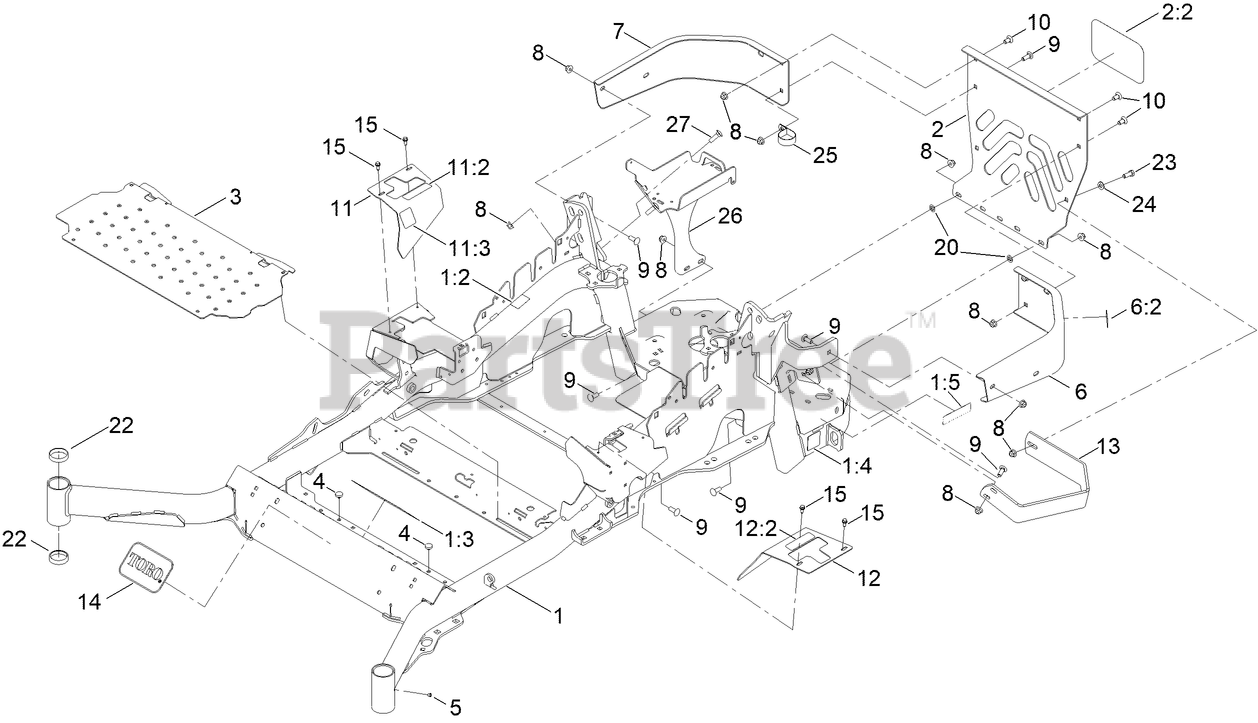

Frame Assembly Parts Diagram

  • Title
1

Toro 142-7266

MAINFRAME SERVICE ASM - 72

$2392.99

$

Usually ships in 3-6 days

0

1:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

1:3

Toro 132-0871

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

1:4

Toro 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

Usually ships in 3-6 days

0

1:5

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

2

Toro 115-7410

REAR GUARD ASM

$195.99

$

In Stock, only 1 left!

0

2:2

Toro 67-7320

DECAL

$35.99

$

In Stock, only 2 left!

0

3

Toro 116-8898-01

FLOORPAN

$106.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

5

$5.49

$

In Stock, Qty 11

0

6

Toro 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

7

Toro 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Toro 116-5899

RH MOTION CONTROL COVER ASM

$47.99

$

Usually ships in 3-6 days

0

11:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

11:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$13.99

$

In Stock, only 1 left!

0

12

Toro 116-0580

LH MOTION CONTROL COVER ASM

$27.99

$

Usually ships in 3-6 days

0

12:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

13

Toro 126-2067-03

GUARD-MUFFLER

$58.99

$

Usually ships in 3-6 days

0

14

Toro 68-3640

DECAL

$20.99

$

In Stock, only 2 left!

0

15

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

20

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 9

0

22

Toro 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 16

0

23

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

26

Toro 142-6404-01

BATTERY MOUNT ASM

$67.99

$

Usually ships in 3-6 days

0

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0
