72942 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 410999999) Engine, Clutch and Muffler Assembly Parts Diagram

152cm Z Master Zero-Turn Mower, Rear-Discharge Deck

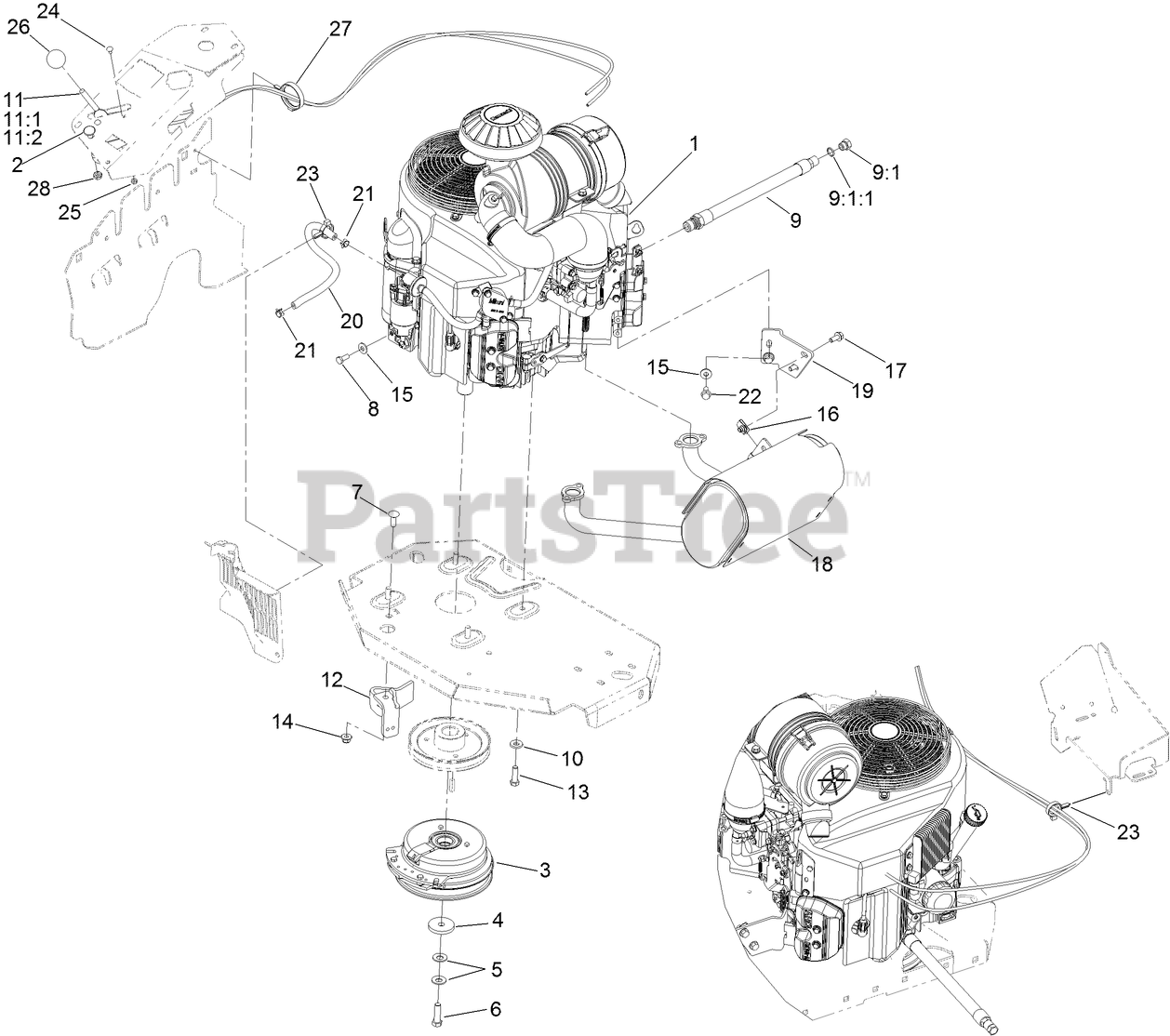

Engine, Clutch and Muffler Assembly Parts Diagram

  • Title
1

ENGINE-KAWASAKI, FX801V-_S22-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FX801V-_S22-R

Note: Obtain parts from www.kawpower.com

$

$

Not available

2

Toro 115-2753

CONTROL-CHOKE

$66.99

$

In Stock, Qty 5

0

3

Toro 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 9

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Toro 109-9761

SCREW-HH, W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 15

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Torque to 23-29 ft-lb

$37.99

$

In Stock, Qty 7

0

9:1

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, Qty 5

0

9:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

10

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

11

Toro 110-5727

THROTTLE CONTROL ASM

$88.99

$

In Stock, only 3 left!

0

11:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

11:2

Toro 110-5728

See Supercession: 110-5727
(Superseded to 110-5727)

$88.99

$

In Stock, only 3 left!

0

12

Toro 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

16

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

17

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

18

Toro 116-1712

MUFFLER

$232.99

$

Usually ships in 3-6 days

0

19

Toro 116-0203

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

20

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

21

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

22

Toro 95-4184

SCREW-HHF
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0

23

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

24

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

25

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

27

Toro 117-7817

CLAMP-HARNESS

$7.99

$

Usually ships in 3-6 days

0

28

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0
