72942 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 410999999) Deck Assembly Parts Diagram

152cm Z Master Zero-Turn Mower, Rear-Discharge Deck

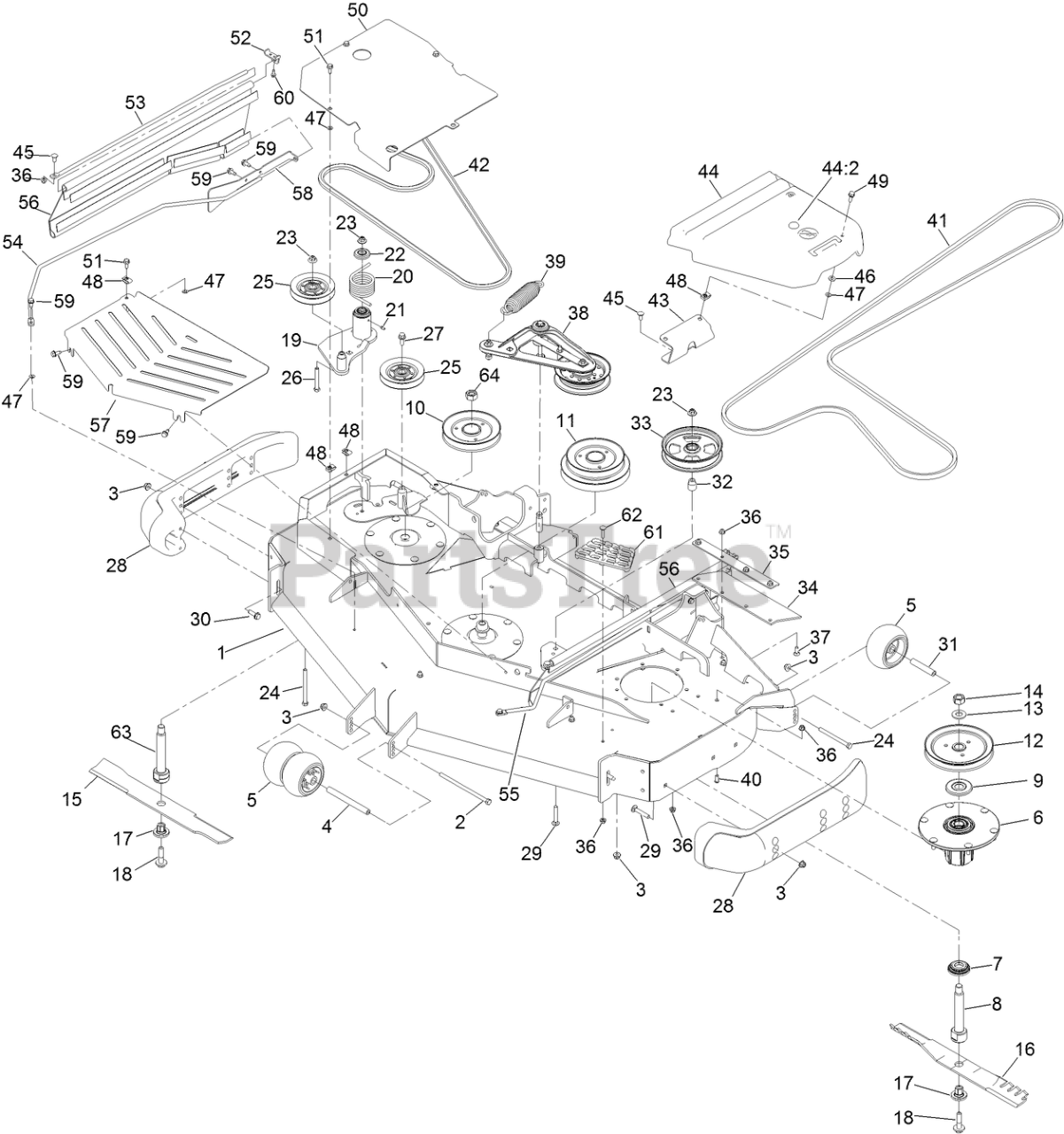

Deck Assembly Parts Diagram

  • Title

1

Toro 139-8131

DECK DECAL ASM

$3331.99

$

Usually ships in 3-6 days

0

2

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

5

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

6

Toro 137-9780

SPINDLE ASM

$147.99

$

In Stock, only 2 left!

0

7

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, only 3 left!

0

8

138-6045

SHAFT-SPINDLE

$

$

Not available

9

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

10

Toro 140-1184

SHEAVE, DOUBLE BLADE DRIVE

$84.99

$

Usually ships in 3-6 days

0

11

Toro 140-1183

SHEAVE, DOUBLE BLADE DRIVE

$125.99

$

Usually ships in 3-6 days

0

12

Toro 138-6059

SHEAVE-DRIVE, BLADE

$29.99

$

Usually ships in 3-6 days

0

13

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

14

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 11

0

15

Toro 140-1244

BLADE-20.50 CR LOW FLOW

$33.99

$

In Stock, Qty 5

0

16

Toro 140-1241

BLADE-20.50 ATOMIC

$30.99

$

In Stock, Qty 9

0

17

Toro 137-9787

BUSHING-HEX

$7.99

$

In Stock, only 3 left!

0

18

Toro 109-9220

SCREW-SEMS

$8.49

$

In Stock, Qty 20+

0

19

Toro 127-6659

DECK IDLER ASM

$248.99

$

Usually ships in 3-6 days

0

20

Toro 108-1921

SPRING-TORSION

$30.99

$

Usually ships in 3-6 days

0

21

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

22

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

23

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

Usually ships in 3-6 days

0

24

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

25

Toro 126-1478

SHEAVE

$50.99

$

In Stock, only 2 left!

0

26

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 17

0

27

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

28

Toro 112-1479

SKID-BUMPER, DECK

$101.99

$

Usually ships in 3-6 days

0

29

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 15

0

30

Toro 9136144

SCREW-HWHTF

$8.49

$

Usually ships in 3-6 days

0

31

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

32

Toro 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

33

Toro 136-5404

PULLEY-IDLER, FLAT

$60.99

$

In Stock, Qty 5

0

34

Toro 116-8191

GUARD-TIRE

$17.99

$

Usually ships in 3-6 days

0

35

Toro 126-0413-01

SUPPORT-OUTER FLAP

$20.99

$

Usually ships in 3-6 days

0

36

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

37

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

38

Toro 126-1720

DECK IDLER ASM

$243.99

$

In Stock, only 2 left!

0

39

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 11

0

40

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

41

Toro 125-9371

BELT

$157.99

$

In Stock, only 4 left!

0

42

Toro 116-8187

BELT

$111.99

$

In Stock, Qty 8

0

43

Toro 114-5882-01

BRACKET-COVER, BELT

$83.99

$

Usually ships in 3-6 days

0

44

Toro 117-7816

LH BELT COVER ASM

$90.99

$

Usually ships in 3-6 days

0

44:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

45

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

46

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

47

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

48

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

49

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

50

Toro 131-3997-03

COVER-SPINDLE

$125.99

$

Usually ships in 3-6 days

0

51

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

52

Toro 131-4194-03

BRACKET-MOUNTING, UPPER

$31.99

$

Usually ships in 3-6 days

0

53

Toro 131-3987

ROD-SUPPORT, UPPER

$32.99

$

Usually ships in 3-6 days

0

54

Toro 132-5990

ROD SUPPORT WLDMNT, LOWER-RH

$45.99

$

Usually ships in 3-6 days

0

55

Toro 132-5988

ROD SUPPORT WLDMNT, LOWER-LH

$45.99

$

Usually ships in 3-6 days

0

56

Toro 131-4016

GUARD SIDE

$21.99

$

Usually ships in 3-6 days

0

57

Toro 131-3982-03

SHIELD-FRONT,

$104.99

$

Usually ships in 3-6 days

0

58

Toro 131-4197-03

BRACKET-MOUNTING, REAR

$21.99

$

Usually ships in 3-6 days

0

59

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

60

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

61

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

62

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

63

Toro 140-1188

SHAFT-SPINDLE, INT. HEX LH THD

$43.99

$

Usually ships in 3-6 days

0

64

Toro 140-1230

NUT-HEX,LH,LOCK

$12.99

$

Usually ships in 3-6 days

0
