72915 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 406395445 - 999999999) Engine, Clutch and Muffler Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

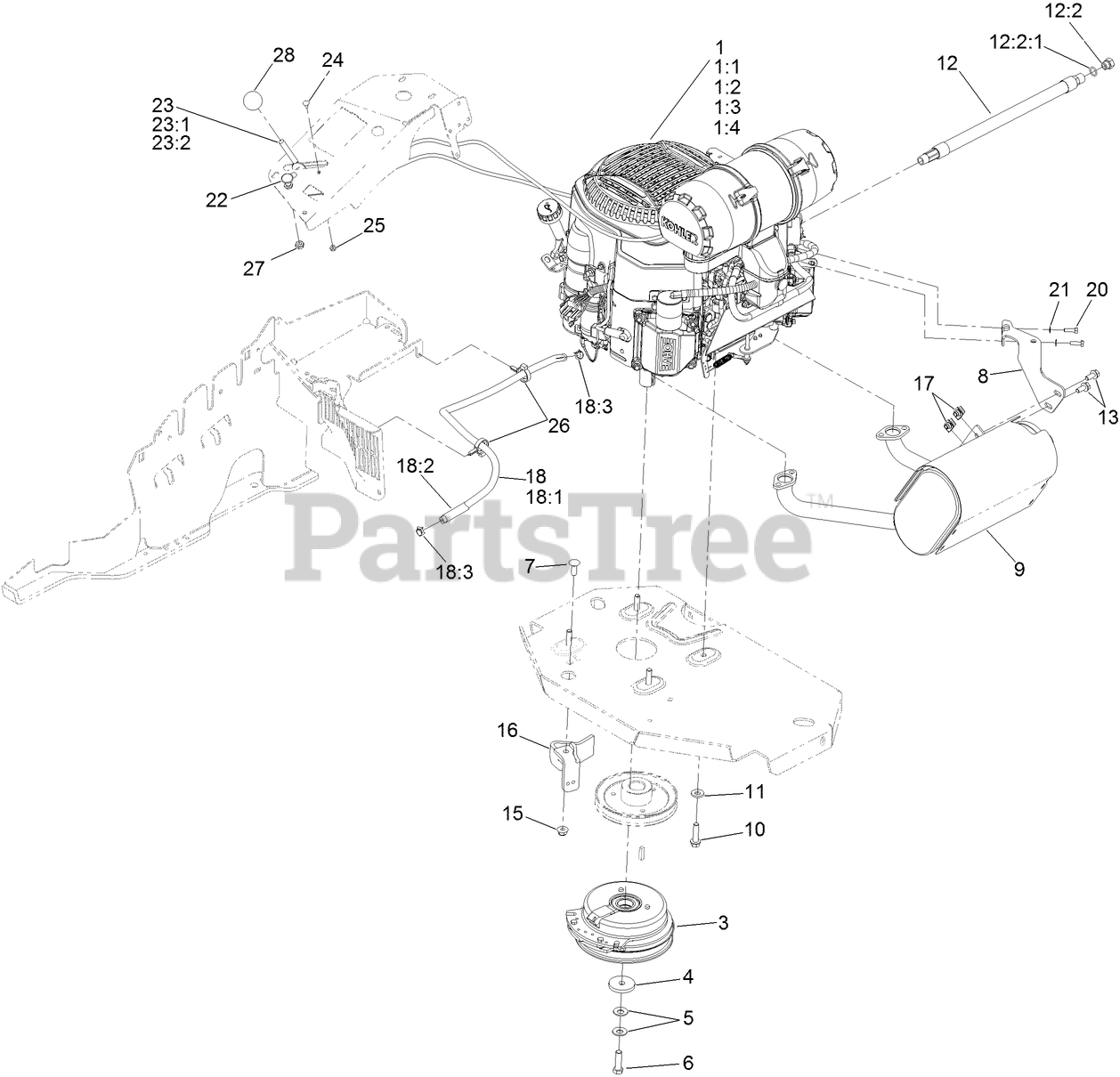

Engine, Clutch and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER CV742-3041

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

ENGINE-KOHLER CV742-3041

Note: Not serviced separately

$

$

Not available

1:1

Toro 135-0337

KOHLER 52 050 02-S ENGINE OIL FILTER

$

$

Currently unavailable

1:2

Toro 135-0338

KOHLER 25 083 01-S ENGINE AIR FILTER

$

$

Currently unavailable

1:3

Toro 135-0339

KOHLER 25 083 04-S SAFETY FILTER

$

$

Currently unavailable

1:4

Toro 135-0346

KOHLER 24 050 13-S FUEL FILTER

$

$

Currently unavailable

3

Toro 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 9

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Toro 109-9761

SCREW-HH, W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 15

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 116-4297

MUFFLER BRACKET KIT

$75.99

$

In Stock, only 1 left!

0

9

Toro 126-8798

MUFFLER KIT

$392.99

$

In Stock, only 1 left!

0

10

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

11

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 116-5316

OIL DRAIN HOSE ASM

Note: Torque to 17-23 ft-lb

$54.99

$

In Stock, Qty 14

0

12:2

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, Qty 5

0

12:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Toro 3234-5

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

17

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

18

Toro 126-1414

FUEL LINE ASM

$44.99

$

Usually ships in 3-6 days

0

18:1

Toro 109-0286

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

18:2

Toro 126-1417

SLEEVE-THERMAL

$35.99

$

Usually ships in 3-6 days

0

18:3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

20

Toro 116-4295

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

21

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

22

Toro 115-2756

CHOKE CONTROL ASM

$59.99

$

In Stock, only 1 left!

0

23

Toro 115-2752

THROTTLE CONTROL ASM

$93.99

$

In Stock, only 3 left!

0

23:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

23:2

Toro 115-3868

See Supercession: 115-2752
(Superseded to 115-2752)

$93.99

$

In Stock, only 3 left!

0

24

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

25

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

27

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

28

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0
