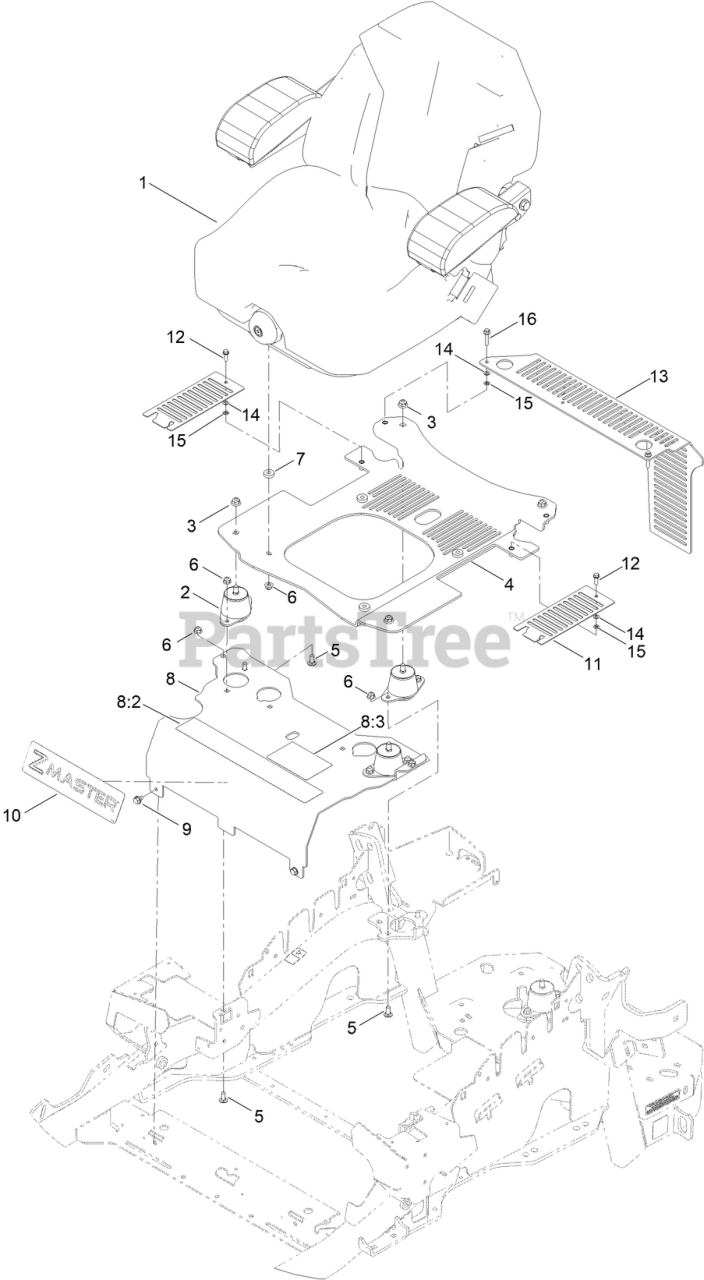

72902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 411000000 - 412199999) Seat Mounting Assembly Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

Seat Mounting Assembly Parts Diagram

  • Title

1

Toro 140-8003

SEAT-SUSPENSION

$995.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 117-0910

SEAT BASE ASM

$365.99

$

Usually ships in 3-6 days

0

5

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 26-4840

See Supercession: 5-0652

$6.99

$

Usually ships in 3-6 days

0

8

Toro 116-2324

MOUNT-SEAT

$341.99

$

Usually ships in 3-6 days

0

8:2

Toro 114-4468

DECAL-CONSOLE

$53.99

$

Usually ships in 3-6 days

0

8:3

Toro 125-9383

DECAL-SERVICE AID

$26.99

$

Usually ships in 3-6 days

0

9

Toro 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

10

Toro 140-1215

DECAL-CONSOLE

$9.99

$

In Stock, only 2 left!

0

11

Toro 117-0901-03

COVER

$30.99

$

Usually ships in 3-6 days

0

12

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

13

Toro 119-4241-03

GUARD-CE

$226.99

$

Usually ships in 3-6 days

0

14

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

15

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 20+

0

16

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0
